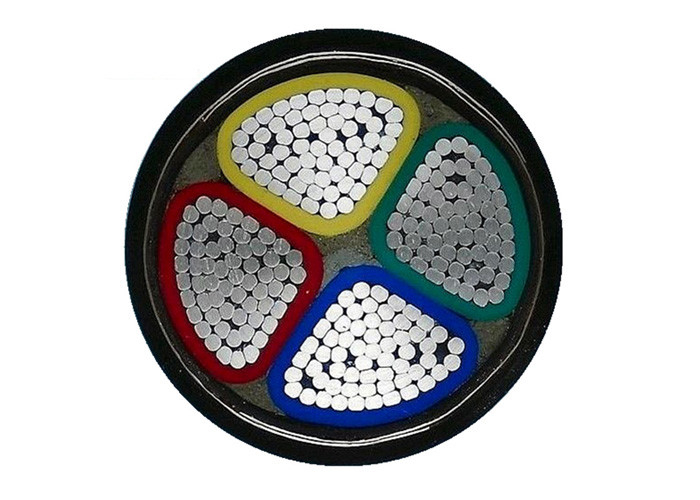

Multi Core Aluminum Conductor PVC Insulation PVC Sheath Power Cable NAYY
Constructions
Conductor : Stranded Aluminum conductor, Cl.2 as per IEC 60228
Insulation : PVC
Sheath : PVC type ST2 to IEC 60502, black
Key words: Aluminum cable,Low Voltage Aluminum Conductor Cable,PVC insulation NAYY cable
Applications
For the NAYY power cable, it can be used for laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.
Standards
International: IEC 60502-1, IEC 60228,
China: GB/T 12706, (GB/T 18380-3 for ZR-VLV only)
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage: 0.6/1kV
Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core
15 x cable O.D for multi core
Certificates
CE, RoHS, KEMA and more others at request
Commercial Items: MOQ: 1000m
Payment terms: 30% T/T before production, 70% T/T before delivery
Packing: Wooden Iron drum or we can offer whole steel drum if requested by client.
Specifications
| Nom. Cross-section of conductor | Strands No./ Dia. Of Conductor | Insulation Thickness | Sheath Thickness | Approx. O.D. |
Approx. Weight |
Max. D.C Resistance of Conductor (20 ℃) | Testing Voltage A.C | Current Rating | |
| mm2 | pc/mm | mm | mm | (mm) | kg/km | Ω /km | kV/5min | In air (A) | In soil(A) |
| 4 × 4 | 1/2.25 | 0.7 | 1.8 | 13.0 | 155 | 7.41 | 3.5 | 27 | 36 |
| 4 × 6 | 1/2.76 | 0.7 | 1.8 | 14.0 | 184 | 4.61 | 3.5 | 35 | 46 |
| 4 × 10 | 7/1.38 | 0.7 | 1.8 | 17.0 | 258 | 3.08 | 3.5 | 47 | 59 |
| 4 × 16 | 7/1.78 | 0.7 | 1.8 | 20.0 | 366 | 1.91 | 3.5 | 64 | 80 |
| 4 × 25 | 7/2.14 | 0.9 | 1.8 | 23.0 | 540 | 1.200 | 3.5 | 82 | 100 |
| 4 × 35 | 7/2.52 | 0.9 | 1.8 | 25 | 686 | 0.868 | 3.5 | 100 | 120 |
| 4 × 50 | 10/2.52 | 1.0 | 1.8 | 23 | 907 | 0.641 | 3.5 | 125 | 145 |
| 4 × 70 | 14/2.52 | 1.1 | 1.8 | 27 | 1192 | 0.443 | 3.5 | 155 | 175 |
| 4 × 95 | 19/2.52 | 1.1 | 1.9 | 31 | 1598 | 0.320 | 3.5 | 200 | 210 |
| 4 × 120 | 24/2.52 | 1.2 | 2.0 | 33 | 1949 | 0.253 | 3.5 | 220 | 240 |
| 4 × 150 | 30/2.52 | 1.4 | 2.2 | 38 | 2517 | 0.206 | 3.5 | 250 | 270 |
| 4 × 185 | 37/2.52 | 1.6 | 2.3 | 42 | 3091 | 0.1640 | 3.5 | 295 | 305 |
| 4 × 240 | 48/2.52 | 1.7 | 2.5 | 47 | 3825 | 0.1250 | 3.5 | 345 | 355 |
| 4 × 300 | 61/2.52 | 1.8 | 2.6 | 52 | 4830 | 0.1000 | 3.5 | 395 | 400 |
| 4 × 400 | 61/2.97 | 2.0 | 3.1 | 66 | 5840 | 0.0778 | 3.5 | 445 | 445 |
