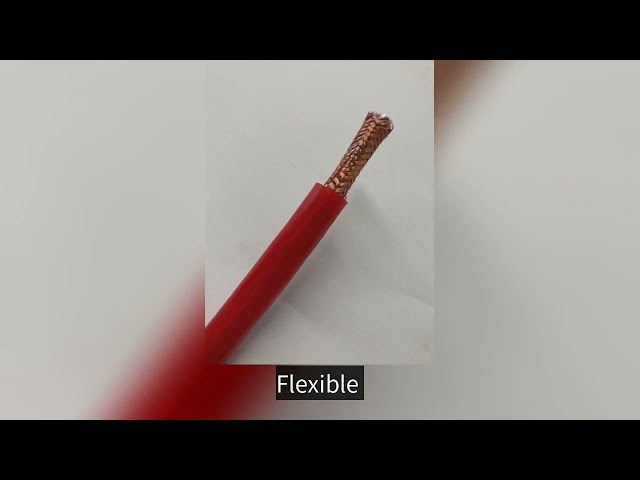

H07V-K PVC Insulation 2.5SQMM House Electrical Cable Wire IEC60227 Class 5

China H07V-K PVC Insulation 2.5SQMM House Electrical Cable Wire IEC60227 Class 5 supplier

Large Image :  H07V-K PVC Insulation 2.5SQMM House Electrical Cable Wire IEC60227 Class 5

Product Details:

Place of Origin: SHANGHAI CHINA
Brand Name: SHAN CABLES
Certification: CE,KEMA,TUV,CCC,UL
Model Number: H07V-K 2.5 SQMM

Payment & Shipping Terms:

Minimum Order Quantity: 300 Meter
Price: USD 0.06-1.68 /M
Packaging Details: Roll,Plastic Coil
Delivery Time: 3 Days
Payment Terms: L/C, T/T
Supply Ability: 8874230 M/Week
Contact Now
Detailed Product Description
Type: H07V-K Size:: 2.5 SQMM
Insulation: PVC Conductor:: Flexible Copper Wire
Jacket: PVC Warranty: 2 Years
Sample: Free Voltage: 300/500V
Test Voltage: 2500 V/5Min Port: Shanghai China
High Light:

2.5SQMM Electrical Cable Wire

,

H07V-K Electrical Cable Wire

,

2.5SQMM electric wire for house wiring

Flexible PVC Insulation H07V-K 2.5 SQMM House Wire IEC60227 Standard Class 5



Description:

Flexible stranded Copper, Cl.5, PVC Insulation

As per standard IEC 60227 IEC 60228 GB/T5023-2008



Constructions

Conductor: Flexible stranded copper conductor, conforms to IEC 60228 class 5

Insulation : PVC compound rated 70ºC or 85ºC for continuous operation.

Note: Insulation color as per standards or customer requirement





Applications

Used for indoor applications for electric power, lighting and internal wiring in houses.

Standards

International: IEC 60227 IEC 60331, IEC 61034

China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001

Other standards such as BS,DIN and ICEA upon request



Technical data

Rated voltage:300/500 V, 300/300V, 450/750V

Max. Conductor Temp. in normal use: 70°C or 90°C





Certificates

CE, RoHS, CCC, KEMA and more others at request



Packing: Wooden Iron drum or 100m/roll then put into wooden Case.



Specifications



Nominal area of conductor No./Dia. Of Conductor Max.O.D Approx.Weight
mm2 mm mm2 kg/km
0.3 16/0.15 2.3 6.4
0.4 23/0.15 2.5 8.1
0.5 16/0.2 2.6 9.1
0.75 24/0.2 2.8 12.2
1.0 32/0.2 3.0 15.1



Specifications





Nominal area of conductor No./Dia. Of Conductor Max.O.D Approx.Weight
mm2 mm mm2 kg/km
1.5 30/0.25 3.4 21.4
2.5 49/0.25 4.1 24.5



Specifications





Nominal area of conductor No./Dia. Of Conductor Max.O.D Approx.Weight
mm2 mm mm2 kg/km
4 56/0.20 4.8 51.8
6 84/0.30 6.4 71.4
10 84/0.30 8.0 12.4
