IEC60228 Underground PVC Insulation Armored Power Cable

China IEC60228 Underground PVC Insulation Armored Power Cable supplier
IEC60228 Underground PVC Insulation Armored Power Cable supplier

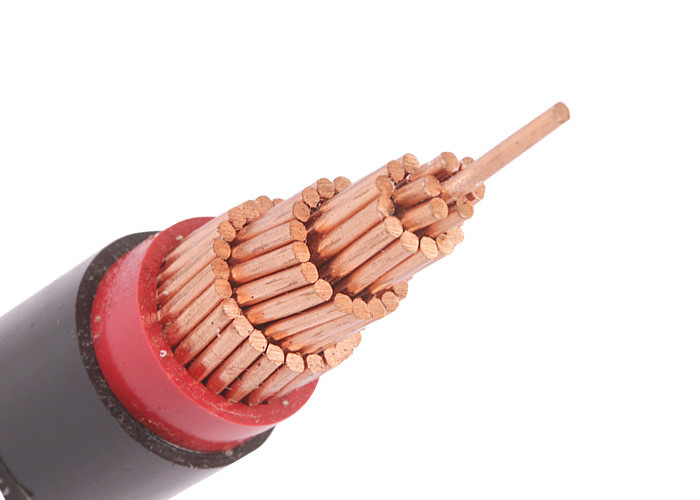

Large Image :  IEC60228 Underground PVC Insulation Armored Power Cable

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: VV22-0.6-1V

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Contact Now
Detailed Product Description
Inner Sheath: PVC Armored: Double Steel Tape
Sheath: PVC Or FR-PVC Type ST2 To IEC 60502, Black Insulation: PVC(polyvinyl Chloride) Rated At 90 OC
Conductor: Compact Stranded Copper Conductor Application: Underground,Industrial
High Light:

Underground armored power cable

,

IEC 60228 armored power cable

,

IEC 60228 armored electrical cable

Steel Tape Armored Power Cable CU/PVC/DSTA/PVC 0.6/1KV



Constructions

Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228

Insulation : PVC(polyvinyl chloride) rated at 90 OC

Inner sheath : PVC

Armored : Double Steel Tape.

Sheath : PVC or FR-PVC type ST2 to IEC 60502, black



Applications

Apply to shafts, water and soil, able to bear the larger positive pressure





Standards

International: IEC 60502, IEC 60228,

China: GB/T 12706, (GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request



Technical data

Rated voltage: 0.6/1KV

Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 12 x cable O.D for multi core



Certificates

CE, RoHS,KEMA and more others at request





Commercial Items: MOQ: 500m

Payment terms: 30% T/T before production, 70% T/T before delivery

Packing : Wooden Iron drum







Specifications



Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Inner Covering Thickness Steel Tape Thickness Sheath Thickness Approx. O.D. Approx.
Weight
Max. D.C Resistance of Conductor (20 ℃)Ω /km Testing Voltage A.C
mm2 pc/mm mm mm mm mm Lower Limit (mm) Upper Limit (mm) kg/km Ω /km kV/5min
1 × 25 7/2.14 0.9 1.0 2x0.2 1.8 14.1 16.2 442.0 0.727 3.5
1 × 35 7/2.52 0.9 1.0 2x0.2 1.8 15.0 17.1 547.0 0.524 3.5
1 × 50 10/2.52 1.0 1.0 2x0.2 1.8 17.1 19.2 688.0 0.387 3.5
1 × 70 14/2.52 1.1 1.0 2x0.2 1.8 18.2 20.5 895.0 0.268 3.5
1 × 95 19/2.52 1.1 1.0 2x0.2 1.8 20.0 22.3 1125.0 0.193 3.5
1 × 120 24/2.52 1.2 1.0 2x0.2 1.8 22.3 24.5 1358.0 0.153 3.5
1 × 150 30/2.52 1.4 1.0 2x0.2 1.8 23.0 25.1 1649.0 0.124 3.5
1 × 185 37/2.52 1.6 1.0 2x0.5 1.8 25.3 27.1 1984.0 0.0991 3.5
1 × 240 48/2.52 1.7 1.0 2x0.5 1.9 28.0 29.8 2489.0 0.0754 3.5
1 × 300 61/2.52 1.8 1.0 2x0.5 1.9 30.0 32.6 3036.0 0.0601 3.5
1 × 400 61/2.97 2.0 1.2 2x0.5 2.1 35.0 37.4 4230.0 0.0470 3.5
1 × 500 61/3.23 2.2 1.2 2x0.5 2.2 39.8 42.1 5194.0 0.0366 3.5
1 × 630 61/3.50 2.4 1.2 2x0.5 2.4 45.0 47.6 6504.0 0.0283 3.5
2 × 4 1/2.25 0.7 1.2 2 × 0.2 1.8 15 17.6 424.0 4.61 3.5
2 × 6 1/2.76 0.7 1.2 2 × 0.2 1.8 16.1 18.4 493.0 3.08 3.5
2 × 10 7/1.38 0.7 2 × 0.4 2 × 0.2 1.8 18.8 20.5 663.0 1.83 3.5
2 × 16 7/1.78 0.7 2 × 0.4 2 × 0.2 1.8 20.9 22.6 844.0 1.15 3.5
2 × 25 7/2.14 0.9 2 × 0.4 2 × 0.2 1.8 23.6 25.3 1154.0 0.727 3.5
2 × 35 7/2.52 0.9 2 × 0.4 2 × 0.2 1.8 25.5 27.2 1431.0 0.524 3.5
2 × 50 10/2.52 1.0 4 × 0.4 2 × 0.2 1.8 25.0 26.7 1589.0 0.387 3.5
2 × 70 14/2.52 1.1 4 × 0.4 2 × 0.2 1.8 26.4 28.1 2243.0 0.268 3.5
2 × 95 19/2.52 1.1 4 × 0.4 2 × 0.2 1.9 29.8 31.5 2909.0 0.193 3.5
2 × 120 24/2.52 1.1 4 × 0.4 2 × 0.2 2 32.2 33.9 3475.0 0.153 3.5
2 × 150 30/2.52 1.4 4 × 0.4 2 × 0.2 2.1 35.4 37.1 4250.0 0.124 3.5
2 × 185 37/2.52 2.0 4 × 0.4 2 × 0.5 2.2 38.8 40.5 5010.0 0.0991 3.5
3 × 4 1/2.25 1.0 1.2 2 × 0.2 1.5 15.2 17.6 489.0 4.61 3.5
3 × 6 1/2.76 1.0 1.2 2 × 0.2 1.5 16.2 18.7 577.0 3.08 3.5
3 × 10 7/1.38 1.0 2 × 0.4 2 × 0.2 1.8 19.7 21.4 800.0 1.83 3.5
3 × 16 7/1.78 1.0 2 × 0.4 2 × 0.2 1.8 22.0 23.7 1050.0 1.15 3.5
3 × 25 7/2.14 1.2 2 × 0.4 2 × 0.2 1.7 24.8 26.5 1465.0 0.727 3.5
3 × 35 7/2.52 1.2 4 × 0.4 2 × 0.2 1.8 27.1 28.8 2149.0 0.524 3.5
3 × 50 10/2.52 1.4 4 × 0.4 2 × 0.2 1.9 29.0 30.7 2453.0 0.387 3.5
3 × 70 14/2.52 1.4 4 × 0.4 2 × 0.2 2.0 32.2 33.9 3116.0 0.268 3.5
3 × 95 19/2.52 1.6 4 × 0.4 2 × 0.5 2.2 37.9 39.6 4053.0 0.193 3.5
3 × 120 24/2.52 1.6 4 × 0.4 2 × 0.5 2.2 39.7 41.4 4930.0 0.153 3.5
3 × 150 30/2.52 1.8 4 × 0.4 2 × 0.5 2.4 44.8 46.5 6075.0 0.124 3.5
3 × 185 37/2.52 2.0 4 × 0.4 2 × 0.5 2.5 48.3 50.0 7299.0 0.0991 3.5
3 × 240 48/2.52 2.2 4 × 0.4 2 × 0.5 2.7 53.6 55.3 9213.0 0.0754 3.5
3 × 300 61/2.52 2.4 4 × 0.4 2 × 0.5 2.9 59.1 60.8 11185.0 0.0601 3.5
3 × 400 61/2.97 2.6 4 × 0.4 2 × 0.5 3.3 72.2 73.9 13330.0 0.0470 3.5
4 × 4 1/2.25 1.0 1.0 2 × 0.2 1.5 16.2 18.4 565.0 4.61 3.5
4 × 6 1/2.76 1.0 1.0 2 × 0.2 1.5 17.4 19.6 685.0 3.08 3.5
4 × 10 7/1.38 1.0 2 × 0.4 2 × 0.2 1.8 21.3 23.0 960.0 1.83 3.5
4 × 16 7/1.78 1.0 2 × 0.4 2 × 0.2 1.8 23.8 25.5 1273.0 1.15 3.5
4 × 25 7/2.14 1.2 2 × 0.4 2 × 0.2 1.8 27.1 28.8 1998.0 0.727 3.5
4 × 35 7/2.52 1.2 2 × 0.4 2 × 0.2 1.9 29.7 31.4 2505.0 0.524 3.5
4 × 50 10/2.52 1.4 4 × 0.4 2 × 0.2 2.0 31.5 33.2 3122.0 0.387 3.5
4 × 70 14/2.52 1.4 4 × 0.4 2 × 0.2 2.0 32.7 34.4 4025.0 0.268 3.5
4 × 95 19/2.52 1.6 4 × 0.4 2 × 0.5 2.2 38.5 40.2 5291.0 0.193 3.5
4 × 120 24/2.52 1.6 4 × 0.4 2 × 0.5 2.3 40.4 42.1 6464.0 0.153 3.5
4 × 150 30/2.52 1.8 4 × 0.4 2 × 0.5 2.4 45.6 47.3 7866.0 0.124 3.5
4 × 185 37/2.52 2.0 4 × 0.4 2 × 0.5 2.5 49.1 50.8 9542.0 0.0991 3.5
4 × 240 48/2.52 2.2 4 × 0.4 2 × 0.5 2.7 54.5 56.2 11916.0 0.0754 3.5
4 × 300 61/2.52 2.4 4 × 0.4 2 × 0.5 2.9 60.2 61.9 14118.0 0.0601 3.5
4 × 400 61/2.97 2.6 4 × 0.4 2 × 0.5 3.4 74.5 76.2 19950.0 0.0470 3.5
5× 10 7/1.38 1.0 2 × 0.4 2 × 0.2 1.8 23.0 24.7 1110.0 1.83 3.5
5 × 16 7/1.78 1.0 2 × 0.4 2 × 0.2 1.8 25.8 27.5 1485.0 1.15 3.5
5 × 25 7/2.14 1.2 2 × 0.4 2 × 0.2 1.9 29.7 31.4 2339.0 0.727 3.5
5 × 35 7/2.52 1.2 2 × 0.4 2 × 0.2 2.0 32.6 34.3 2953.0 0.524 3.5
5× 50 10/2.52 1.4 4 × 0.4 2 × 0.5 2.2 39.2 40.9 3975.0 0.387 3.5
5× 70 14/2.52 1.4 4 × 0.4 2 × 0.5 2.3 43.2 44.9 5125.0 0.268 3.5
5× 95 19/2.52 1.6 4 × 0.4 2 × 0.5 2.5 47.8 49.5 6798.0 0.193 3.5
5 × 120 24/2.52 1.6 4 × 0.4 2 × 0.5 2.6 52.3 54.0 8217.0 0.153 3.5
5 × 150 30/2.52 1.8 4 × 0.4 2 × 0.5 2.8 56.8 58.5 10030.0 0.124 3.5
5 × 185 37/2.52 2.0 4 × 0.4 2 × 0.5 3.0 62.9 64.6 12275.0 0.0991 3.5
5 × 240 48/2.52 2.2 4 × 0.4 2 × 0.5 3.3 72.1 73.8 15077.0 0.0754 3.5
5 × 300 61/2.52 2.4 4 × 0.4 2 × 0.5 3.5 79.1 80.8 18214.0 0.0601 3.5
3 × 10+ 1 × 6 7/1.38+1/2.8 1.0+1.0 2 × 0.4 2 × 0.2 1.8 20.5 22.2 894 1.83 3.5
3 × 16+ 1 × 10 7/1.78+7/1.38 1.0+1.0 2 × 0.4 2 × 0.2 1.8 23.1 24.8 1194 1.15 3.5
3 × 25+ 1 × 16 7/2.14+7/1.78 1.2+1.0 2 × 0.4 2 × 0.2 1.8 26.2 27.9 1668 0.727 3.5
3 × 35+ 1 × 16 7/2.52+7/1.78 1.2+1.0 2 × 0.4 2 × 0.2 1.9 28.1 29.8 2243 0.524 3.5
3 × 50+ 1 × 25 10/2.52+7/2.14 1.4+1.2 4 × 0.4 2 × 0.2 1.9 31.0 32.7 2852 0.387 3.5
3 × 70+ 1 × 35 14/2.52+7/2.52 1.4+1.2 4 × 0.4 2 × 0.2 2.1 34.4 26.1 3657 0.268 3.5
3 × 95+ 1 × 50 19/2.52+10/2.52 1.6+1.4 4 × 0.4 2 × 0.5 2.2 40.2 41.9 4796 0.193 3.5
3 × 120+ 1 × 70 24/2.52+14/2.52 1.6+1.4 4 × 0.4 2 × 0.5 2.3 42.8 44.5 5912 0.153 3.5
3 × 150+ 1 × 70 30/2.52+14/2.52 1.8+1.4 4 × 0.4 2 × 0.5 2.5 47.1 48.8 7025 0.124 3.5
3 × 185+ 1 × 95 37/2.52+19/2.52 2.0+1.6 4 × 0.4 2 × 0.5 2.6 51.1 52.8 8598 0.0991 3.5
3 × 240+ 1 × 120 48/2.52+24/2.52 2.2+1.6 4 × 0.4 2 × 0.5 2.8 56.4 58.1 10631 0.0754 3.5
3 × 300+ 1 × 150 61/2.52+30/2.52 2.4+1.8 4 × 0.4 2 × 0.5 3.0 62.2 63.9 12913 0.0601 3.5
3 × 400+ 1 × 240 61/2.97+37/2.52 2.6+1.8 4 × 0.4 2 × 0.5 3.4 74.2 75.9 15410 0.0470 3.5
3 × 10+ 2 × 6 7/1.38+1/2.8 1.0+1.0 2 × 0.4 2 × 0.2 1.8 21.8 23.5 973 1.83 3.5
3 × 16+ 2 × 10 7/1.78+7/1.38 1.0+1.0 2 × 0.4 2 × 0.2 1.8 24.7 26.4 1323 1.15 3.5
3 × 25+ 2 × 16 7/2.14+7/1.78 1.2+1.0 2 × 0.4 2 × 0.2 1.9 28.2 29.9 2053 0.727 3.5
3 × 35+ 2 × 16 7/2.52+7/1.78 1.2+1.0 2 × 0.4 2 × 0.2 1.9 30.0 31.7 2406 0.524 3.5
3 × 50+ 2 × 25 10/2.52+7/2.14 1.4+1.2 4 × 0.4 2 × 0.2 2.1 35.8 37.5 3371 0.387 3.5
3 × 70+ 2 × 35 14/2.52+7/2.52 1.4+1.2 4 × 0.4 2 × 0.5 2.2 39.9 41.6 4350 0.268 3.5
3 × 95+ 2 × 50 19/2.52+10/2.52 1.6+1.4 4 × 0.4 2 × 0.5 2.4 44.2 45.9 5736 0.193 3.5
3 × 120+ 2 × 70 24/2.52+14/2.52 1.6+1.4 4 × 0.4 2 × 0.5 2.5 49.0 50.7 7126 0.153 3.5
3 × 150+ 2 × 70 30/2.52+14/2.52 1.8+1.4 4 × 0.4 2 × 0.5 2.6 51.5 53.2 8249 0.124 3.5
3 × 185+ 2 × 95 37/2.52+19/2.52 2.0+1.6 4 × 0.4 2 × 0.5 2.8 57.4 59.1 10254 0.0991 3.5
3 × 240+ 2 × 120 48/2.52+24/2.52 2.2+1.6 4 × 0.4 2 × 0.5 3.0 62.8 64.5 12888 0.0754 3.5
3 × 300+ 2 × 150 61/2.52+30/2.52 2.4+1.8 4 × 0.4 2 × 0.5 3.3 70.9 72.6 15483 0.0601 3.5
4 × 10+ 1 × 6 7/1.38+1/2.8 1.0+1.0 2 × 0.4 0.2 × 2 1.8 22.4 24.1   1.83 3.5
4 × 16+ 1 × 10 7/1.78+7/1.38 1.0+1.0 2 × 0.4 0.2 × 2 1.8 25.1 26.8 1482 1.15 3.5
4 × 25+ 1 × 16 7/2.14+7/1.78 1.2+1.0 2 × 0.4 0.2 × 2 1.9 28.9 30.6 2312 0.727 3.5
4 × 35+ 1 × 16 7/2.52+7/1.78 1.2+1.0 2 × 0.4 0.2 × 2 2.0 31.3 33.0 2756 0.524 3.5
4 × 50+ 1 × 25 10/2.52+7/2.14 1.4+1.2 4 × 0.4 0.2 × 2 2.1 35.8 37.5 3680 0.387 3.5
4 × 70+ 1 × 35 14/2.52+7/2.52 1.4+1.2 4 × 0.4 2 × 0.5 2.2 39.9 41.6 4768 0.268 3.5
4 × 95+ 1 × 50 19/2.52+10/2.52 1.6+1.4 4 × 0.4 2 × 0.5 2.4 44.2 45.9 6267 0.193 3.5
4 × 120+ 1 × 70 24/2.52+14/2.52 1.6+1.4 4 × 0.4 2 × 0.5 2.5 49.0 50.7 7698 0.153 3.5
4 × 150+ 1 × 70 30/2.52+14/2.52 1.8+1.4 4 × 0.4 2 × 0.5 2.6 51.5 53.2 6216 0.124 3.5
4 × 185+ 1 × 95 37/2.52+19/2.52 2.0+1.6 4 × 0.4 2 × 0.5 2.8 57.4 59.1 11293 0.0991 3.5
4 × 240+ 1 × 120 48/2.52+24/2.52 2.2+1.6 4 × 0.4 2 × 0.5 3.0 62.8 64.5 14371 0.0754 3.5
4 × 300+ 1 × 150 61/2.52+30/2.52 2.4+1.8 4 × 0.4 2 × 0.5 3.4 75.1 76.8 17449 0.0601 3.5
