H07RN-F Flexible Rubber Sheathed Cable With EPR Insulation

China H07RN-F Flexible Rubber Sheathed Cable With EPR Insulation supplier
H07RN-F Flexible Rubber Sheathed Cable With EPR Insulation supplier H07RN-F Flexible Rubber Sheathed Cable With EPR Insulation supplier H07RN-F Flexible Rubber Sheathed Cable With EPR Insulation supplier H07RN-F Flexible Rubber Sheathed Cable With EPR Insulation supplier

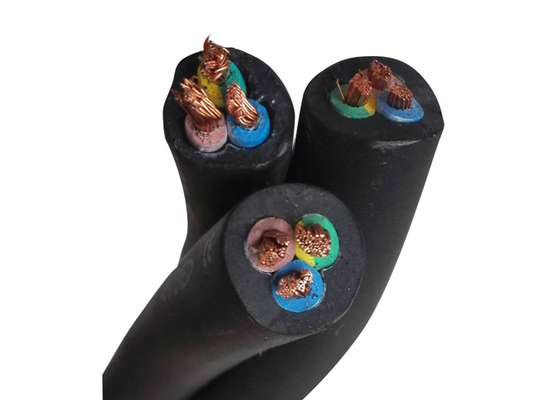

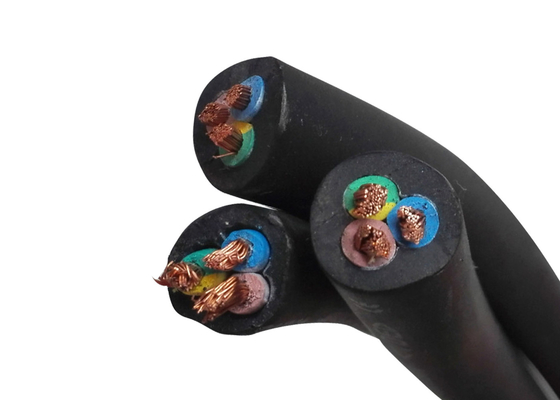

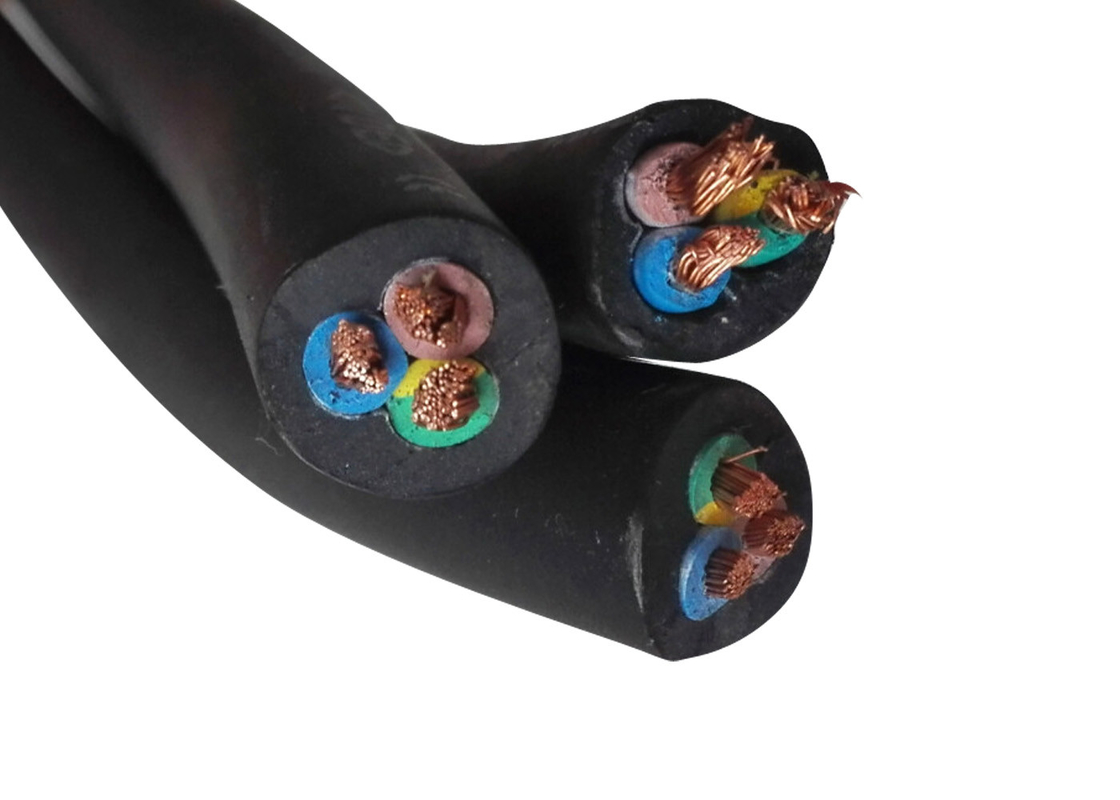

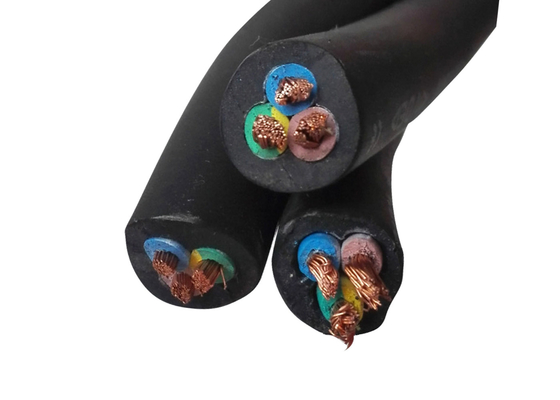

Large Image :  H07RN-F Flexible Rubber Sheathed Cable With EPR Insulation

Product Details:

Place of Origin: SHANGHAI CHINA
Brand Name: SHAN CABLE
Certification: CE/KEMA/CCC/TUV
Model Number: H07RN-F

Payment & Shipping Terms:

Minimum Order Quantity: 1000m
Price: USD 0.4 To 45.5 per Meter
Packaging Details: Wooden Case
Delivery Time: 15 Days
Supply Ability: 8KM per Day
Contact Now
Detailed Product Description
Voltage: 300/500V~450/750V Size: 1.5mm2 To 150mm2
Conducotor: Flexible Copper Insualtion: EPR
Sheathed: CPE Place Of Origin: Shanghai
Color: Black Brown Grey Blue Yellow&Green
High Light:

Flexible rubber sheathed cable

,

EPR Insulation rubber sheathed cable

,

EPR Insulation tough sheath cable

H07RN-F, Flexible Rubber Sheath Power Cable With EPR Insulation



Construction:



Conductor: Flexible Class 5 Copper Conductor

Insualtion: ERP Sheath

Filler: Rubber Filler

Sheath: CPE Sheath





Application :


This flexible power cable can be installed either as a fixed or mobile cable under adverse conditions such as in oily, acidic or alkaline environment



Insulation Color:


Single-Core: Black,
2-Core: Brown & Black,
3-Core: Brown, Blue & Green/Yellow
4-Core: Brown, Blue, Black & Green/Yellow
5-Core: Brown, Blue, Black, Grey & Green/Yellow



Sheath Color:


Black



Working temperature



H07RN-F model rated voltage U0/U IS 450/750V

H05RN-F model rated voltage U0/U IS 300/500V

H03RN-F model rated voltage U0/U IS 300/500V



Long time allow working temperature of wire core cant be higher than 65℃



Rubber copper wire Working Conditions



1. Rated voltage :300/300(h03rn-f type),300/500(h05rn-f type),450/750V(h07rn-f type)

2. The long-term working temperature of conductor should be no longer than 65°C

3. W type cables have weather-proof character and certain grease-proof character and are suitable for outdoor usage and the occasion with greasy dirt.

4. ZR type cables have fire-retardant character.

Characteristics

1. Rated power-frequency voltage U0/U: 450/750V, 300/500V and 200/200V.

2. Maximum permitted operating temperature of conductor is 60°C.

3. Permitted lowest working temperature is -35°C.

4. Cables can be used at places contaminated by mineral oil and fuel oil.




Cross-Sectional
Area mm2
Number diameter of core Overall Diameter Max.D.C resistance
of at 20℃
MΩ/km
Approx Weight
(kg/km)
min max
3x4 56/0.3 12.7 16.2 4.95 8.21 305.6 325.2
3x6 84/0.3 14.1 18.0 3.3 3.39 822.3 895.6
3x10 84/0.4 19.1 24.2 1.91 1.95 452.5 497.7
3x25 196/0.4 26.1 33.0 0.78 0.795 1514.3 1725.4
3x35 276/0.4 29.3 37.1 0.554 0.565 2031.2 2089.7
3x50 396/0.4 34.1 42.9 0.386 0.393 2880.3 3057.8
3x70 360/0.5 38.4 48.3 0.272 0.277 3879.3 4109.2
3x95 475/0.5 43.3 54.0 0.206 0.210 4974.5 5250.8
3x120 608/0.5 47.3 60.0 0.161 0.164 5933.3 6253.3
3x150 28/0.15 52.0 66.0 0.129 0.132 7443.4 77740.9

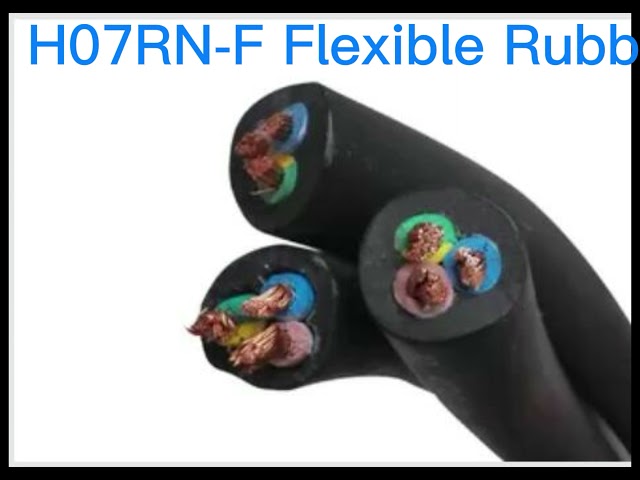

H07RN-F Flexible Rubber Sheathed Cable With EPR Insulation 0
