Corrosion Resistant 4x70 1x35 Sqmm Lszh High Temperature Cable Waterproof

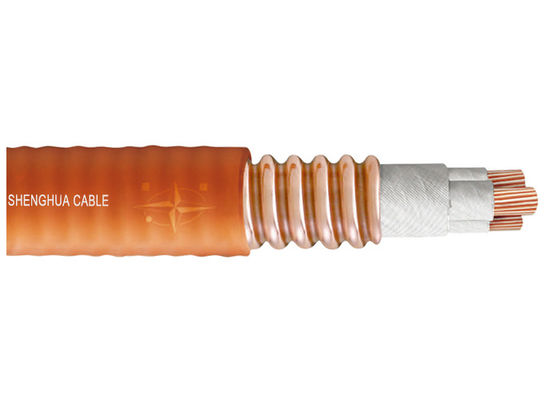

Large Image : Corrosion Resistant 4x70 1x35 Sqmm Lszh High Temperature Cable Waterproof

Product Details:

Place of Origin:	SHANGHAI CHINA
Brand Name:	SHAN CABLE
Certification:	CE,KEMA,TUV,LPCB
Model Number:	BBTRZ 0.6/1kV 4x70+1x35

Payment & Shipping Terms:

Minimum Order Quantity:	200 Meter
Price:	USD 0.11-3.68 /M
Packaging Details:	Wooden Drum,Reel
Delivery Time:	7 Days
Payment Terms:	L/C, T/T
Supply Ability:	687423 M/Week

Contact Now

Detailed Product Description

Jacket:	LSZH	Voltage:	0.6/1KV
Jacket Color:	Orange	Fire-Temp:	950 Degree
Conductor:	Stranded Copper Class 2	Sample:	Free
Insulation:	Mica Tape	Warranty:	2 Years
Port Of Loading:	Shanghai China	Test Voltage:	3.5 KV/5Min
CLASS:	B
High Light:	Lszh High Temperature Cable , Waterproof High Temperature Cable , Corrosion Resistant Lszh cable

High Temperature Non-Metallic Sheath 4x70+1x35 Sqmm Lszh Fire Rated Power Cable For Construction

1.Application
Railway Stations, Road &Rail Tunnels, Public Lighting, Car Parks, Public Service Building, Shopping Malls, Airport,Underground Rail Systems, Schools, Hospitals, Hotels, Theatres, Churches, Power Station, Boiler Houses, Oil &Gas Station, Emergency Lifts and so on.

2.Standards

International: GB/T 19216 BS6387 IEC 60331
Cable Type:BBTRZ-0.6/1KV 4x70+1X35SQMM

3.Technical Data

Rated voltage:0.6/1KV
Fire Resistant to 750 ℃/3 Hours.

Commercial Items: MOQ:500m
Price Term: FOB Shanghai or CIF as request.
Payment terms: 30% T/T before production, 70% T/T before delivery

Packing : Drum

4.Specifications:

Nom. Cross-section of conductor	Insulation Thickness	Sheath Thickness	Norminal Aluminum Sleeve sheath	Nominal thickness of Outer Covering	Approx. O.D.	Approx. Weight	Max. D.C Resistance of Conductor (20 ℃)
mm²	mm	mm	mm²	mm	mm	Kg/km	Ω/km
1x95	1.0	1.2	57.0	1.7	30.1	1682	0.193
1x120	1.0	1.2	63.0	1.7	31.7	1956	0.153
1x150	1.3	1.2	71.9	1.8	34.3	2334	0.124
1x185	1.3	1.2	78.3	1.8	36.0	2745	0.0991
1x240	1.3	1.2	109.1	1.9	38.9	3422	0.0754
1x300	1.3	1.2	120.0	2.0	41.4	4106	0.0601
2x95	1.0	1.2	114.0	2.0	47.4	4039	0.193
2x120	1.0	1.2	126.1	2.1	50.4	4741	0.153
2x150	1.3	1.2	143.7	2.2	55.8	5752	0.124
2x185	1.3	1.2	156.5	2.3	60.0	6809	0.0991
2x240	1.3	1.2	218.3	2.5	66.0	8547	0.0754
2x300	1.3	1.2	240.0	2.7	71.0	10230	0.0601
3x2.5	0.7	1.2	34.0	1.8	28.2	742	7.41
3x4	0.7	1.2	37.8	1.8	29.3	837	4.61
3x6	0.7	1.2	41.9	1.8	30.3	942	3.08
3x10	0.7	1.2	50.4	1.8	32.7	1183	1.83
3x16	0.7	1.2	58.5	1.8	34.9	1449	1.15
4x150	1.3	1.2	287.4	2.3	67.2	8953	0.124
4x185	1.3	1.2	313.1	2.4	71.7	11075	0.0991
4x240	1.3	1.2	436.6	2.6	78.6	14023	0.0754
4x300	1.3	1.2	479.9	2.6	84.6	16890	0.0601
5x95	1.0	1.2	285.0	2.3	62.4	7852	0.193
5x120	1.0	1.2	315.2	2.4	66.9	9332	0.153
5x150	1.3	1.2	359.3	2.6	71.4	11389	0.124
5x185	1.3	1.2	391.3	2.8	78.8	13652	0.0991
5x240	1.3	1.2	545.7	3.0	86.5	17307	0.0754
5x300	1.3	1.2	599.9	3.2	93.1	20876	0.0601

5.Main proformance fo cable
1.Great fire resistive performance
2.Strong overload protection
3.Large current carrying capaticy
4.High working temperature
5.Waterproof,anticorrosion and explosion-proof property
6.Excellen Shielding property
7.Stong radiation resistance
8.Long service life
9.Small outer diamter and light weight
10.Environmental protection and safety
11.High mechanical strength
12.Bending performance
13.Perfect eatthing
