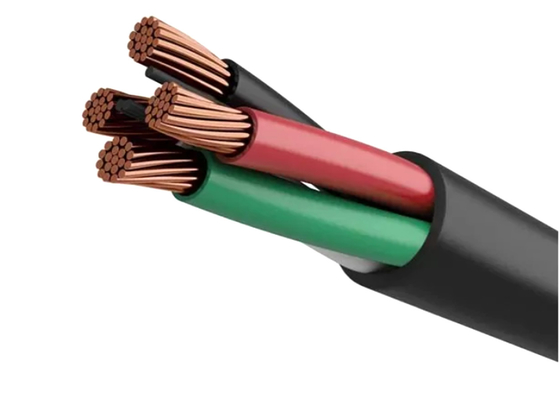

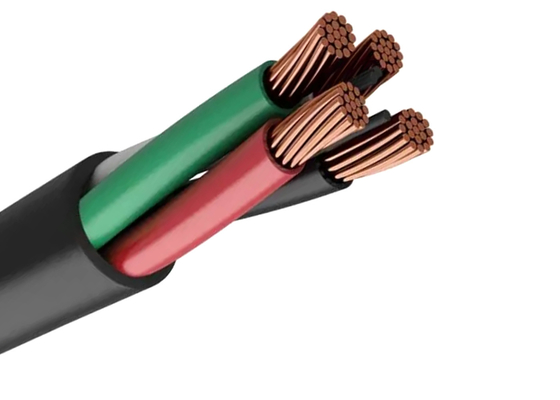

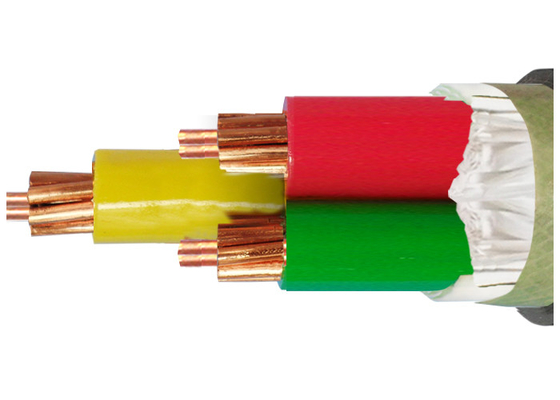

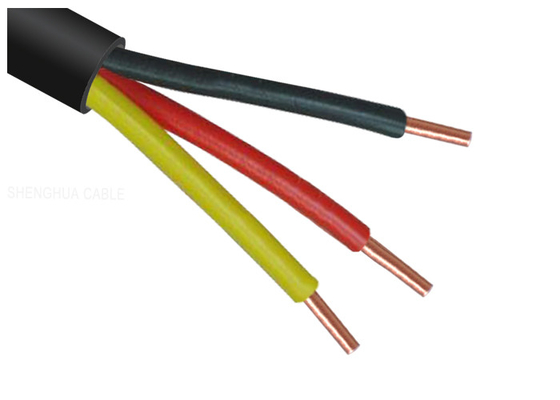

5 Core PVC Insulated PVC Sheath Cables Customization IEC 60228 PVC XLPE Cable

China 5 Core PVC Insulated PVC Sheath Cables Customization IEC 60228 PVC XLPE Cable supplier
5 Core PVC Insulated PVC Sheath Cables Customization IEC 60228 PVC XLPE Cable supplier 5 Core PVC Insulated PVC Sheath Cables Customization IEC 60228 PVC XLPE Cable supplier 5 Core PVC Insulated PVC Sheath Cables Customization IEC 60228 PVC XLPE Cable supplier 5 Core PVC Insulated PVC Sheath Cables Customization IEC 60228 PVC XLPE Cable supplier

Large Image :  5 Core PVC Insulated PVC Sheath Cables Customization IEC 60228 PVC XLPE Cable

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: VV 4+1C, CU/PVC/PVC 1kV

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Model Name: PVC Cable 4+1 Cores Conductor Type: Copper Conductor
Size: 1.5mm2 To 400mm2 Core No.: 3+1
Insulation Color: Customization Free Sample: Avaliable
Corporation: Shenghua Group Brand: Sh Cable
Highlight:

4.5 Core PVC Insulated Cables

,

Customization PVC Insulated Cables

,

IEC 60228 pvc xlpe cable

Four And Half Core PVC Insulated Cables For Under Normal / Salty Water



Installation



1. The installation temperature should not over 20℃, If the ambient temperature is lower than 0℃, the cable should be preheated.
2. The bending radius of cable should not less than 8 times.
3. After installantion, the cable should with stand voltage test for 15min. 3.5kv D.C.



Construction



Conductor : Annealed Copper Conductor as per IEC 60228

≤6mm2 solid (class 1) or stranded (class 2)

>6mm2 stranded (class 2)

Flexible conductor(class 5) optional.

Insulation : PVC(polyvinyl chloride) rated at 75℃

Metallic Screen optional : Copper tape or copper wires braiding optional

Armored optional: :Aluminum wire or stainless steel tape for single core cable, Steel wire or steel tape for multi core cable

Sheath : PVC or FR-PVC type ST2 to IEC 60502, black or red or customization



Applications



PVC Insulated Cable is used as power distribution and transmission line at rated voltage 0.6/1KV.

Used outside as energy utility and lighting cables, in cable ducts, under ground, under normal and salty water if specially made.



Standards



International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)

China: GB/T 12706, (GB/T 18380-3 for FR-type only)

Other standards such as BS,DIN and ICEA upon request



Technical parameter



Cross section of conductor Thickness of insulation Thickness of Sheath Approx.cable diameter Max.resistance of conductor at 20 ℃ Test Voltage(AC)
mm2 mm mm mm ohm/km KV/5min
4x4+1x2.5 1.0 1.8 15.6 4.61 3.5
4x6+1x4 1.0 1.8 17.4 3.08 3.5
4x10+1x6 1.0 1.8 20.3 1.83 3.5
4x16+1x10 1.0 1.8 23.3 1.15 3.5
4x25+1x16 1.2 1.8 27.6 0.73 3.5
4x35+1x16 1.1 1.8 30.3 0.524 3.5
4x50+1x25 1.4 2.0 35.8 0.387 3.5
4x70+1x35 1.6 2.1 39.9 0.268 3.5
4x95+1x50 1.6 2.3 46.0 0.193 3.5
4x120+1x70 1.8 2.5 51.0 0.153 3.5
4x150+1x70 2.0 2.6 55.4 0.124 3.5
4x185+1x95 2.2 2.8 61.9 0.0991 3.5
4x240+1x120 2.4 3.0 69.7 0.0754 3.5
4x300+1x150 2.6 3.2 74.3 0.060 3.5
4x400+1x240 2.6 3.4 79.1 0.0470 3.5


Main Properties



No. Test Item Property
1 Construction Listed to the tables
2 Conductor resistance Listed to the tables
3 Test Voltage A.C 3.5kV 5min No breaken
4 Machenical Properties before aging Tensile Strength Insulation Min. 12.5N/mm2
Sheath Min. 12.5N/mm2
Elongation at break Insulation Min. 150%
Sheath Min. 150%
Machenical properties after aging Tensile Strength Insulation 100℃±2℃7days Min. 12.5N/mm2
Sheath 100℃±2℃7days Min. 12.5N/mm2
Varying valve of tensile strength Insulation 100℃±2℃7days Max. 25%
Sheath 100℃±2℃7days Max. 25%
Elongation at break Insulation 100℃±2℃7days Min.150%
Sheath 100℃±2℃7days Min.150%
Varying valve of tensile strength Insulation 100℃±2℃7days Max. 25%
Sheath 100℃±2℃7days Max. 25%
5 Flame retardant property IEC60332 - 3
6 Constant of insulation resistivity Min at 20℃ 36.7
Ki MΩ.km Min at 70℃ 0.037


Packing and shipping



We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.



After-service commitment



Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:


1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
Shanghai Shenghua Cable (Group) Co., Ltd.



FAQ


Q: How long does it take to get a quote back?


A: Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days.


Q: What warranties do your products carry?


A: SHAN cable guarantees that all of our products, wires cables,and more are free from defects. We will take back any product that does not meet the agreed quality by both parties. The specific terms are as follows :
1. We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire
2. We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
3. The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.
4. During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.

Q: Do you sell other products besides wire and cable?


A: Wire and cable is our forte, however, we also sell connectors, cable assemblies and cable tools to name just a few. Our products serve numerous markets all over the world.
