Product Details:
Payment & Shipping Terms:
|
| Temp Rating: | 5 Degree To 70 Degree | Min Bending: | 8x O.D |
|---|---|---|---|
| Insulation: | PVC TM2 | Cable Sample: | Free |
| Test Voltage: | 2000V/5min | Jacket Color: | White /Black |
| High Light: | 1.5SQMM Insulated Wire Cable,750V Electrical Insulated Wire,1.5SQMM Insulated Wire Cable |
||

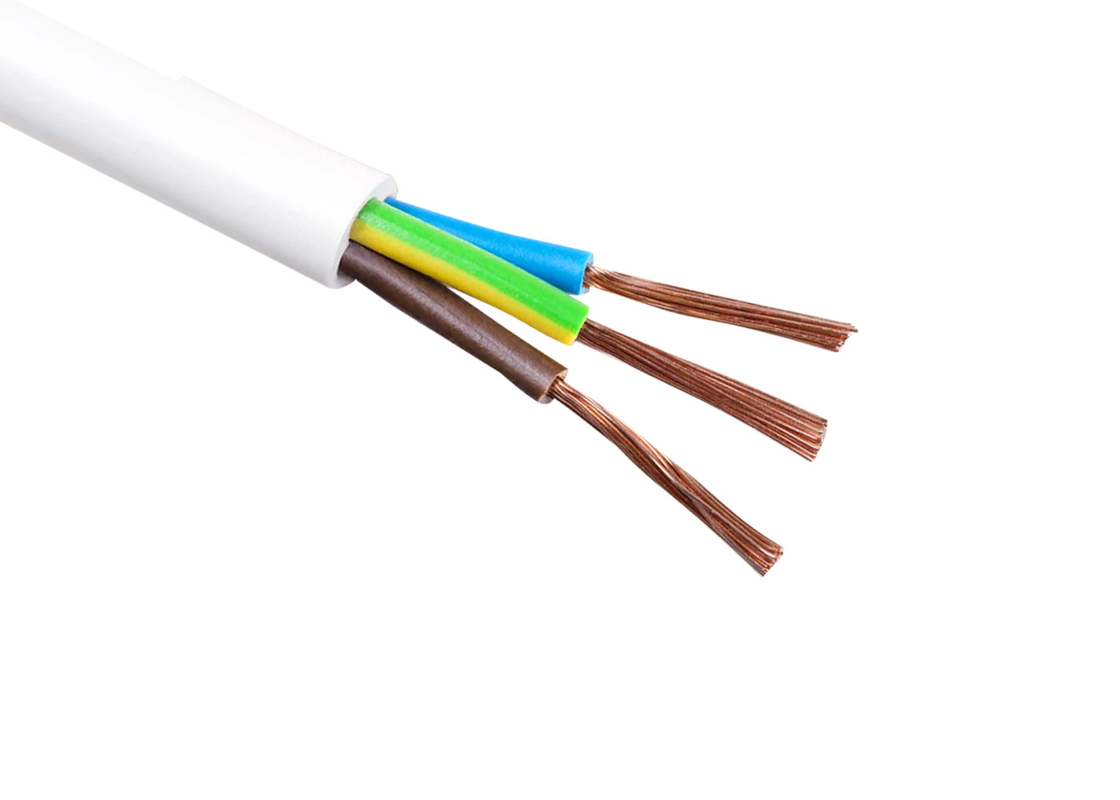

NYMHY 450-750V 3Core x1.5SQMM To 16SQMM VDE 0295 ISIRI 3084 Standard Electrical Cable Wire
1. Description:Single core cables with copper conductor , ( solid, stranded or flexible ) and insulated with PVC compound. The cables are manufactured according to IEC 60227&BS 6004 specifications.
2. Construction:- Conductor : Plain annealed circular copper according to IEC 60228 class 1,2 ,5 and 6.
- Insulation : PVC compound rated 70º C or 85º C for continuous operation
3. Applications : Building wires fixed installation and laid in pipes for general applications
4.Specification:
| No.of cores & cross-section area | Thickness of insulation | Nominal thickness of sheath | Av.overall diameter (mm) |
Max.R of conductor at 20oC | Min.Insulation resistance at 70oC | Approx.weight | ||
| Lower limit | Upper limit | Copper conductor | Tinned copper conductor | |||||
| mm2 | mm | mm | mm | mm | ohm/km | ohm/km | M ohm˙km | kg/km |
| 3x6 | 0.8 | 1.4 | 12.8 | 13.9 | 3.3 | 3.39 | 0.011 | 320 |
| 3x10 | 1.0 | 1.4 | 16.4 | 18.5 | 1.91 | 1.95 | 0.01 | 535 |
| 3x16 | 1.0 | 1.4 | 19.2 | 20.8 | 1.21 | 1.24 | 0.01 | 780 |
| 3x2.5 | 0.8 | 1.4 | 9.6 | 12 | 7.98 | 8.21 | 0.009 | 171 |
After-service commitment
Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
Shanghai Shenghua Cable (Group) Co., Ltd.
