Product Details:
Payment & Shipping Terms:
|
Voltage: | 300/500V~450/750V | Size: | 1.5mm2 To 150mm2 |
---|---|---|---|
Conducotor: | Flexible Copper | Insualtion: | EPR |
Sheathed: | CPE | Place Of Origin: | Shanghai |
Color: | Black Brown Grey Blue Yellow&Green | ||
High Light: | EPR Insulation Rubber Flexible Cable,H07RN-F Rubber Sheathed Cable,Flexible Copper Rubber Sheathed Cable |

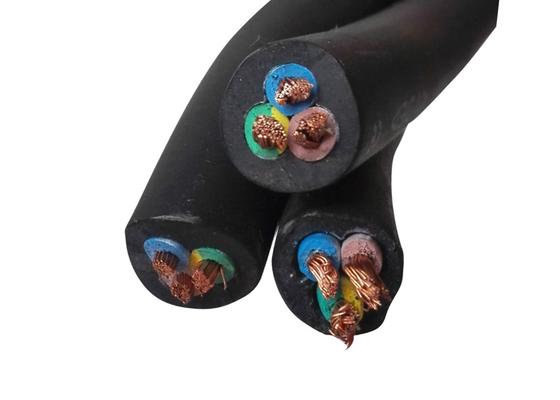

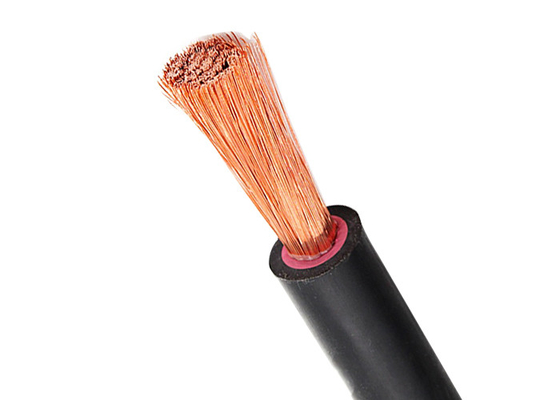

H07RN-F, Flexible Rubber Sheath Power Cable With EPR Insulation
Construction:
Conductor: Flexible Class 5 Copper Conductor
Insualtion: ERP Sheath
Filler: Rubber Filler
Sheath: CPE Sheath
Application :
This flexible power cable can be installed either as a fixed or mobile cable under adverse conditions such as in oily, acidic or alkaline environment
Insulation Color:
Single-Core: Black,
2-Core: Brown & Black,
3-Core: Brown, Blue & Green/Yellow
4-Core: Brown, Blue, Black & Green/Yellow
5-Core: Brown, Blue, Black, Grey & Green/Yellow
Sheath Color:
Black
Working temperature
H07RN-F model rated voltage U0/U IS 450/750V
H05RN-F model rated voltage U0/U IS 300/500V
H03RN-F model rated voltage U0/U IS 300/500V
Long time allow working temperature of wire core cant be higher than 65℃
Rubber copper wire Working Conditions
1. Rated voltage :300/300(h03rn-f type),300/500(h05rn-f type),450/750V(h07rn-f type)
2. The long-term working temperature of conductor should be no longer than 65°C
3. W type cables have weather-proof character and certain grease-proof character and are suitable for outdoor usage and the occasion with greasy dirt.
4. ZR type cables have fire-retardant character.
Characteristics
1. Rated power-frequency voltage U0/U: 450/750V, 300/500V and 200/200V.
2. Maximum permitted operating temperature of conductor is 60°C.
3. Permitted lowest working temperature is -35°C.
4. Cables can be used at places contaminated by mineral oil and fuel oil.
Cross-Sectional Area mm2 |
Number diameter of core | Overall Diameter | Max.D.C resistance of at 20℃ MΩ/km |
Approx Weight (kg/km) |
|||
min | max | ||||||
3x4 | 56/0.3 | 12.7 | 16.2 | 4.95 | 8.21 | 305.6 | 325.2 |
3x6 | 84/0.3 | 14.1 | 18.0 | 3.3 | 3.39 | 822.3 | 895.6 |
3x10 | 84/0.4 | 19.1 | 24.2 | 1.91 | 1.95 | 452.5 | 497.7 |
3x25 | 196/0.4 | 26.1 | 33.0 | 0.78 | 0.795 | 1514.3 | 1725.4 |
3x35 | 276/0.4 | 29.3 | 37.1 | 0.554 | 0.565 | 2031.2 | 2089.7 |
3x50 | 396/0.4 | 34.1 | 42.9 | 0.386 | 0.393 | 2880.3 | 3057.8 |
3x70 | 360/0.5 | 38.4 | 48.3 | 0.272 | 0.277 | 3879.3 | 4109.2 |
3x95 | 475/0.5 | 43.3 | 54.0 | 0.206 | 0.210 | 4974.5 | 5250.8 |
3x120 | 608/0.5 | 47.3 | 60.0 | 0.161 | 0.164 | 5933.3 | 6253.3 |
3x150 | 28/0.15 | 52.0 | 66.0 | 0.129 | 0.132 | 7443.4 | 77740.9 |
