Product Details:
Payment & Shipping Terms:
|
| Conductor: | Solid Or Stranded Copper Conductor,comform To IEC 60228 Class1/2 | Insulation: | PVC |
|---|---|---|---|
| Rated Voltage: | 450/750V | Working Temperature: | Not More Than 70℃ |
| Min Bending: | 6xO.D | Sheath: | PVC Type ST5 |
| Roll Ty[e: | 100 Or 200 Meters Per Roll | ||
| High Light: | Copper Core Electrical Cable Wire,500V Electrical Cable Wire,House Wire Electrical Cable Wire |
||
Ordinary PVC Insulated Copper cord 450/750V
Descriptions
Ordinary PVC Sheathed cord
Code designation:60227 IEC (International),BVVB 300/500V(China)

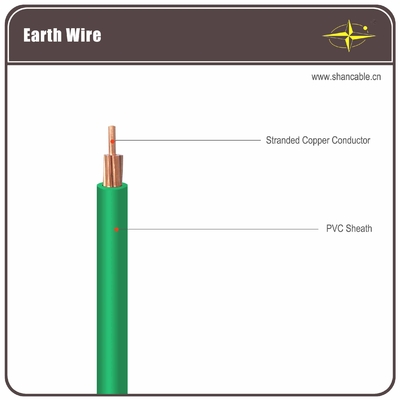

Constructions
1. Conductor: Solid or Stranded copper conductor,comform to IEC 60228 class1,class 2
2. Insulation: PVC
3. Sheath: PVC type ST5
| item | value |
| Place of Origin | China |
| Shanghai | |
| Brand Name | SAHN, OEM |
| Model Number | VV, VVR, VV32, VV62 |
| Insulation Material | PVC |
| Type | LOW VOLTAGE |
| Application | Power Station |
| Conductor Material | Copper |
| Jacket | PVC |
| Standard | IEC60502 |
| Certificates | CE, RoHS, CCC, KEMA |
| Special requiremets | Armour, LSZH, Fire-resistant |
| Warranty | 2 years since delivery |
Applications
Used in the switch control,relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equiment, motor starters and controllers.
Standards
International:IEC 60227
China:GB/T 5023-2008
Other standards such as BS,DIN and ICEA upon request
Technical date
Rate voltage:300/500v
Max.Conductor Temp. in normal use: 70℃
Min. Bending Radius: 6 x cable O.D
Certificates
CE,RoHS,CCC,KEMS and more others at request
Specifications
| Nom.Cross-section Area | Number/Diameter of core | Max.overall Diameter | Max.R of conductor at 20℃ | Approx.weight | |
| mm2 | mm | mm | ohm/km | kg/km | |
| 2x0.75 | 2x1/0.97 | 4.6x7.0 | 43.7 | ||
| 2x1.0 | 2x1/1.13 | 4.8x7.4 | 51.0 | ||
| 2x1.5 | 2x1/1.38 | 5.4x8.4 | 65.9 | ||
| 2x2.5 | 2x1/1.78 | 6.2x9.8 | 7.41 | 95.7 | |
| 2x4 | 2x7/0.85 | 7.2x11.5 |
4.61 |
146 | |
| 2x6 | 2x7/1.04 | 8.0x13.0 | 3.08 | 200 | |
| 2x10 | 2x7/1.35 | 9.6x16.0 | 1.83 | 323 | |
| 3x0.75 | 3x1/0.97 | 4.6x9.4 | 24.5 | 62.6 | |
| 3x1.0 | 3x1/1.13 | 4.8x9.8 | 18.1 | 74.3 | |
| 3x1.5 | 3x1/1.38 | 5.4x11.5 | 12.1 |
95.6 |
|
| 3x2.5 | 3x1/1.78 | 6.2x13.5 | 7.41 | 140 | |
| 3x4 | 3x7/0.85 | 7.4x16.5 | 4.61 | 220 | |
| 3x6 | 3x7/1.04 | 8.0x18.0 | 3.08 | 295 | |
| 3x10 | 3x7/1.35 | 9.6x22.5 | 1.83 | 485 | |
