Shenghua Power Cable Single Core Electrical Cable Wire 70℃ Operating Temperature CE KEMA Certification

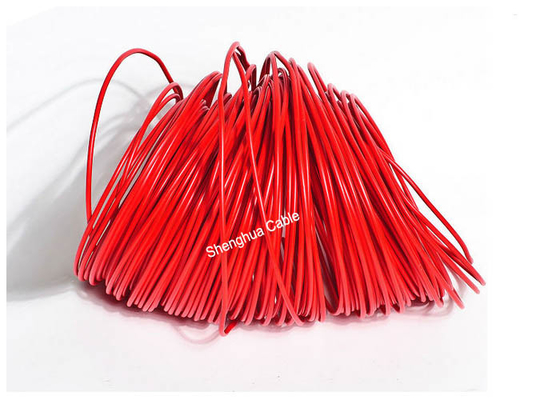

Large Image : Shenghua Power Cable Single Core Electrical Cable Wire 70℃ Operating Temperature CE KEMA Certification

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	SHANCABLE
Certification:	ISO,CE,IEC,TUV,KEMA
Model Number:	H05V-K

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Drum
Delivery Time:	10 Days
Payment Terms:	L/C,T/T
Supply Ability:	100KM/Week

Contact Now

Detailed Product Description

Cable Type:	H05V-K	Operating Temperature:	70℃
Insulation Colour:	Any Colour	Warranty:	2 Years
Voltage:	450/750V	Conductor Material:	Copper Class5
Corporation:	Shenghua Group	Brand:	Sh Cable
Highlight:	KEMA Certification Electrical Cable Wire , Single Core Electrical Cable Wire

Single Core Electrical Cable Wire 70℃ Operating Temperature CE KEMA Certification

Precision-Engineered for Global Infrastructure: Shanghai Shenghua’s Single-Core Cables

Shanghai Shenghua Cable (Group) Co., Ltd.—ranked China’s #2 cable manufacturer with 110,000 km annual output and 21 ISO-certified factories—delivers unmatched reliability with its IEC 60227-compliant Single-Core PVC Cables (H05V-K/H07V-K series). Designed for fixed installations in residential, commercial, and industrial buildings, these cables combine ultra-low resistance, thermal resilience, and global safety compliance to power critical infrastructure worldwide

1. Advanced Construction for Maximum Efficiency

High-Conductivity Copper Conductors:
- Class 1 (Solid), Class 2 (Stranded), Class 5/6 (Flexible): Engineered per IEC 60228, minimizing resistance to 0.0470 Ω/km (400mm²) for 30% lower energy loss vs. aluminum alternatives.
- Optimized Stranding: 7/0.85mm (6mm²) and 61/2.85mm (400mm²) configurations enhance durability in conduit bends.
Thermally Stable PVC Insulation:
- 70°C Continuous Rating: Ideal for high-load circuits in switchgear and distribution panels.
- 4x OD Bending Radius: Enables tight installations in confined spaces (e.g., 4.1mm OD for 2.5mm²)

2. Certified Performance & Global Compliance

Key Specifications (H07V-K 450/750V Series):

Conductor (mm²)	Max. DC Resistance (Ω/km)	Diameter (mm)	Weight (kg/km)
1.5	12.1 (Cu)	3.3	21.6
10	1.83 (Cu)	6.4	119
185	0.0991 (Cu)	23.3	1810
Full range: 0.5mm² to 400mm²

Certifications & Safety:

International Standards: IEC 60227, BS 6004, with CE/KEMA marks ensuring EU/UKCA market access
Short-Circuit Resilience: Withstands 160°C for 5s during electrical faults.

3. Applications Redefining Reliability

High-Rise Buildings: Compact design (e.g., 3.3mm OD for 1.5mm²) saves 40% conduit space in dense vertical risers.
Industrial Control Panels: Class 5 flexible conductors resist fatigue in vibrating machinery.
Renewable Integration: 70°C thermal stability supports solar inverter connections in utility rooms.

4. Why Global Contractors Trust Shenghua?

Manufacturing Excellence:
- Zero-Defect Policy: Rigorous QC aligned with IEC 60227 and GB/T 5023
- Scalable Production: 10-day global delivery of moisture-sealed reels with BOPP tape
Unmatched Support:
- 24/7 Technical Hotline: 72-hour global response (24 hours in Shanghai).
- PICC-Backed Warranty: 12-month coverage including free debugging

1. Description:

Single core cables with copper conductor , ( solid, stranded or flexible ) and insulated with PVC compound. The cables are manufactured according to IEC 60227&BS 6004 specifications.

2. Construction:

- Conductor : Plain annealed circular copper according to IEC 60228 class 1,2 ,5 and 6.
- Insulation : PVC compound rated 70º C or 85º C for continuous operation.

3. Applications : Building wires fixed installation and laid in pipes for general applications

H05V-K

Nominal area of conductor	No./Dia. Of Conductor	Max.O.D	Approx.Weight	Max. D.C Resistance of Conductor (20 ℃)Ω /km
mm2	mm	mm2	kg/km	Ω /km
0.5	1/0.80	2.3	8.5	36.0
0.75(A)	1/0.97	2.5	11.1	24.5
0.75(B)	7/0.37	2.6	12.0	24.5
1.0(A)	1/1.13	2.7	13.9	18.1
1.0(B)	7/0.43	2.8	15.0	18.1

H07V-K

Nominal area of conductor	No./Dia. Of Conductor	Max.O.D	Approx.Weight		Max. D.C Resistance of Conductor (20 ℃)Ω /km
mm2	mm	mm2	kg/km		Ω /km
mm2	mm	mm2	Copper	Aluminium	Aluminium	Copper
1.5(A)	1/1.38	3.2	20.3			12.1
1.5(B)	7/0.52	3.3	21.6			12.1
2.5(A)	1/1.78	3.9	31.6	17	11.8	7.41
2.5(B)	7/0.68	4.0	34.8	17	11.8	7.41
4(A)	1/2.55	4.4	47.1	22	7.39	4.61
4(B)	7/0.85	4.6	50.3	22	7.39	4.61

H07V-K

Nominal area of conductor	No./Dia. Of Conductor	Max.O.D	Approx.Weight		Max. D.C Resistance of Conductor (20 ℃)Ω /km
mm2	mm	mm2	kg/km		Ω /km
mm2	mm	mm2	Copper	Aluminium	Aluminium	Copper
6(A)	7/0.85	5.0	50.3	29	4.91	3.08
6(B)	7/1.04	5.2	71.2	29	4.91	3.08
10	7/1.35	6.4	119	62	3.08	1.83
16	7/1.70	7.8	179	78	1.91	1.15
25	27/2.04	9.7	281	118	1.20	0.727
35	27/2.52	10.9	381	156	0.868	0.524
50	19/1.78	12.8	521	215	0.641	0.387
70	19/2.14	14.4	734	282	0.443	0.268
95	19/2.52	17.1	962	385	0.320	0.193
120	37/2.03	18.8	1180	431	0.253	0.153
150	37/2.25	20.9	1470	539	0.206	0.124
185	37/2.52	23.3	1810	666	0.164	0.0991
240	61/2.25	26.6	2350	857	0.125	0.0754
300	61/2.52	29.6	2930	1070	0.100	0.0601
400	61/2.85	33.2	3870	1390	0.0778	0.0470
