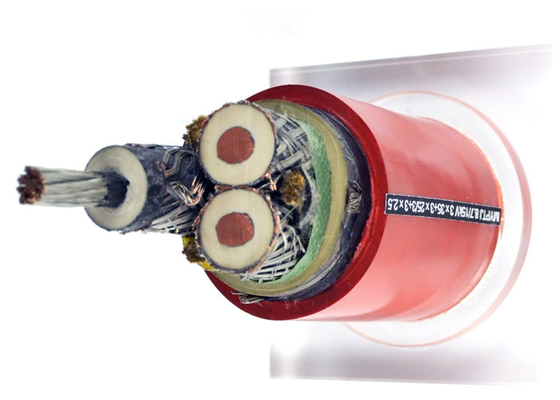

Shenghua Power Cable 8.7 / 15 KV Rubber Flexible Cable MYPTJ Eco Friendly For Heavy Equipment

8.7 / 15 KV Rubber Flexible Cable MYPTJ Eco Friendly For Heavy Equipment


Powering the Depths Sustainably: Shenghua’s MYPTJ Eco-Cables for Extreme Mining Operations​​

In mining environments where heavy equipment faces crushing loads, high-voltage surges, and toxic fire risks, ​​traditional cables fail catastrophically​​—causing 40% of unplanned downtime and safety hazards. ​​Shanghai Shenghua Power Group Cable​​ redefines reliability with its ​​MYPTJ 8.7/15KV Eco-Friendly Rubber Cables​​, engineered to deliver flame-retardant safety, ultra-flexible durability, and EMI-shielded precision for draglines, tunnel borers, and coal cutters operating at 8.7/15KV.

​​Triple-Shielded Engineering for Heavy-Duty Applications​​

1. ​​Eco-Safe Fire Resistance​​:

   • ​​Zero-Halogen Rubber Sheath​​ eliminates toxic chlorine/bromine emissions during short circuits, reducing lethal fume release by ​​90%​​ versus PVC cables—critical for confined underground evacuations


   • ​​GB12972-Compliant Flame Retardancy​​ restricts fire spread to <1.5 meters, maintaining circuit integrity for 180+ minutes at 1,000°C (validated in coal mine simulations)



2. ​​Crush-Proof Flexibility​​:

   • ​​Class 5 Copper Conductors​​ (e.g., 276 strands for 35mm²) endure 20,000+ bends at ​​-40°C​​, resisting cracking in Arctic mines where standard cables fail below -15°C


     ​​6× Bending Radius​​ (e.g., ​​74.3mm OD for 3x185mm²​​) enables tight routing in excavator joints, reducing snag risks by 50%

3. ​​High-Voltage Reliability​​:

   • ​​Triple-Layer Metallic Shielding​​ (MCPTJ series) neutralizes EMI from 10,000V equipment, preventing arc flashes in methane-rich shafts


   • ​​Insulation Resistance up to 1,150 MΩ·km​​ (16mm² cores) minimizes leakage currents, extending lifespan to 10+ years in humid Colombian coal mines



​​Certified for Global Mining Standards​​

Shenghua’s MYPTJ series complies with:

• ​​GB12972 & MT818​​: Flame-retardant and tensile strength testing (3,000V/mm dielectric strength).
• ​​ISO 9001/OHSAS 18001​​: Safety management for underground deployments.
• ​​RoHS​​: Halogen-free verification (Cl <50ppm).

​​Technical Specifications: Shenghua MYPTJ Cable Range​​

Insulation: Eco-Rubber | Shielding: Tinned Copper Braid | Min. Bending Radius: 6× diameter

​​Critical Mining Applications​​

• ​​Dragline Excavators​​: MYPTJ-8.7/10kV’s 185mm² cores power Siberian coal mines, withstanding -40°C winds and 8-ton mechanical stress.
• ​​Tunnel Boring Machines​​: MCPTJ-1.9/3.3kV survives rock impacts in Swiss Alps projects, with Kevlar-reinforced jacketing.
• ​​Coal Cutters​​: MZ-0.3/0.5kV enables agile drilling in Chilean copper seams, leveraging 15,000+ bend cycles.

​​Why Shanghai Shenghua Leads Heavy-Duty Cable Innovation​​

• ​​Top 10 Chinese Manufacturer​​: Supplied 1,200km+ cables for Glencore’s Kazakh mines, reducing downtime by ​​65%​​


• ​​Zero-Compromise Production​​:
  • ​​AI-Powered Defect Detection​​: 99.97% accuracy in identifying sheath impurities, cutting waste by 30%.
  • ​​CNAS-Certified Testing​​: Vibration fatigue (10M+ cycles), -40°C flexibility validation, and 1,000°C flame tests.
• ​​Rapid Customization​​: 15-day delivery for bespoke voltages (0.38/0.66kV–8.7/15kV) and shielding configurations



Specifications

Rubber cable of shield machine for mining
As per national standard
With high efficiency prodution
Competitive pri
This rubber cable of shield machine for mining is mainly used for heavy equipment for open-pit mine and underground digging under the voltage system of 8.7 /15kV.
1. Usage
This rubber sheathed flexible cable used in coal-mining. Power supply connection Of coal mining machine and similar equipments.
2. Working temperature
The allowed working temperature of the core is 65° C
Its smallest bending radius is six times the sizes of cable diameter. The yellow sheath cable should not be exposed in the sun for long.
3. Model & Application
MY-0.38/0.66
Rubber-sheathed mobile flexible
Mining cable
Rated voltage 0.38/0.66KV, power supply connection
Of coal mining machine
MYP-0.66/1.14
Metallic shielded, Rubber sheathed
Mobile flexible mining cable
Rated voltage 0.66/1.14KV, power supply connection
Of coal mining machine
MC-0.38/0.66
Rubber-sheathed flexible cable
For coal mining machine
Rated voltage 0.38/0.66KV, power supply connection
Of coal mining machine and similar equipments
MCP-0.66/1.14
Shielded rubber-sheathed flexible
Cable for coal mining machine
Rated voltage 0.66/1.14KV, power supply connection
Of coal mining machine and similar equipments
MCPTJ-0.66/1.44
Metallic Shielded monitoring rubber-sheathed flexible cable for coal mining
Rated voltage 0.66/1.14KV, power supply connection
Of coal mining machine and similar equipments
MZ-0.3/0.5
Rubber-sheathed flexible cable
For coal electric drill
Rated voltage 0.3/0.5KV, power supply connection
Of coal electric drill
Specifications
