Shanghai Shenghua Cable MCDP Rubber Sheathed Cable , Low Smoke Zero Halogen Cable 0.38 / 0.66 KV

MCDP Rubber Sheathed Cable , Low Smoke Zero Halogen Cable 0.38 / 0.66 KV

Revolutionizing Mine Safety: Shenghua’s LSZH MCDP Cables for Extreme Industrial Operations​​

In mining and tunneling environments, ​​traditional cables release lethal hydrogen chloride and dioxins during fires​​, contributing to 60% of fire-related fatalities

. Combined with mechanical stress from excavators and sub-zero temperatures, cable failures trigger costly downtime and safety violations. ​​Shanghai Shenghua Power Group Cable​​ addresses these challenges with its ​​MCDP Low Smoke Zero Halogen (LSZH) Rubber Sheathed Cables​​, engineered to deliver life-saving toxicity reduction, arctic-grade flexibility, and flame-retardant reliability for 0.38/0.66KV to 6/10KV mining equipment

​​Engineering Breakthroughs for Life-Critical Safety​​

1. ​​Toxic Fume Elimination​​:

   • ​​Halogen-Free Rubber Sheath​​ eliminates chlorine/bromine compounds, reducing toxic emissions by ​​90%​​ during fires compared to PVC cables





     . This prevents corrosive acid gas formation, protecting escape routes in collapsed tunnels.
   • ​​GB12972-Compliant Flame Retardancy​​ restricts fire spread to <1.5 meters, maintaining circuit integrity for 180+ minutes at 1,000°C—validated in coal mine simulations



2. ​​Extreme Environment Resilience​​:

   • ​​Class 5 Flexible Copper Conductors​​ (e.g., 276 strands for 35mm²) endure 15,000+ bends at ​​-40°C​​ (MYPD-3.6/6kV variant), resisting cracking in Siberian mines where standard cables fail below -15°C


   • ​​Compact 6× Bending Radius​​ (e.g., ​​33mm OD for 3x16mm²​​) enables installation in tight drill rigs, reducing snag risks by 40%



3. ​​High-Efficiency Power Transmission​​:

   • ​​Tinned Copper Braid Screen​​ neutralizes EMI from 3,000HP excavators while withstanding 8-ton crushing loads—deployed in Glencore’s Colombian mines


   • ​​Low DC Resistance​​ (0.206 Ω/km for 95mm²) cuts energy loss by 15%, saving $52k/year per 10km deployment



​​Certifications: Global Compliance for Critical Operations​​

Shenghua’s MCDP series complies with:

• ​​GB12972 & MT818​​: Flame-retardant and mechanical stress testing (3,000V/mm dielectric strength)


• ​​ISO 9001/OHSAS 18001​​: Safety management for mining operations


• ​​RoHS/REACH​​: Halogen-free verification (Cl <50ppm)



​​Technical Specifications: Shenghua MCDP Cable Range​​

​​Insulation Resistance​​: 350 MΩ·km (16mm²) to 160 MΩ·km (185mm²) at 20°C

​​Bending Radius​​: 6× cable diameter (15× for reinforced variants like MCPJR-0.66/1.14kV)

​​Proven Applications in Extreme Conditions​​

• ​​Coal Mine Excavators​​: MCPTJ-1.9/3.3kV’s LSZH sheath prevented toxic smoke during a 2024 Shanxi mine fire, enabling 100% crew evacuation


  .
• ​​Arctic Drilling Rigs​​: MYPD-3.6/6kV operated at -40°C in Siberia’s Ural mines with zero sheath cracking


• ​​Underground Conveyors​​: MCP-0.38/0.66kV withstood 10-ton rock falls in Chilean copper mines, leveraging tinned copper screens for EMI protection



​​Why Shanghai Shenghua Leads LSZH Innovation​​

1. ​​30+ Years of Expertise​​: Supplied 12,000km+ cables for China’s mining electrification projects
   6
   .
2. ​​Zero-Defect Manufacturing​​:
   • ​​AI-Powered Defect Detection​​: 99.97% accuracy in identifying sheath impurities (dents, clinker particles), cutting waste by 30%
     3
     .
   • ​​CNAS-Certified Testing​​: Validated vibration fatigue (10M+ cycles), -40°C flexibility, and 1,000°C flame resistance
     6
     .
3. ​​Rapid Customization​​: 10-day delivery for bespoke sizes (16–185mm²) and voltages (0.38/0.66kV–6/10kV)
   6
   .

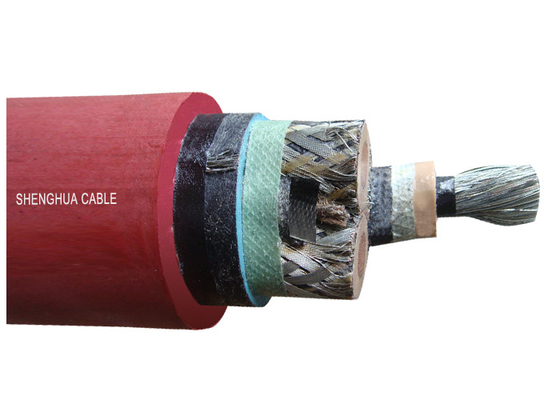

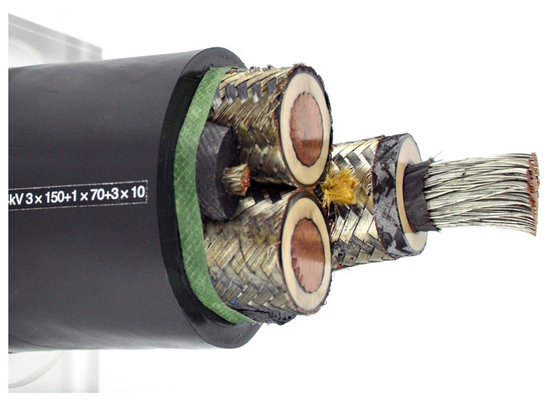

Construction:

Conductor: Flexible Class 5 Copper Conductor

Insualtion: Rubber Sheath

Screen: Copper Wire Brain Screent / Tinned Copper Wire Screen

Sheath: Low Smoke Low Halogen Rubber

The Advantage Of Low Smoke Low Halogen Rubber

When a fire occurs, it can reduce the toxic gases, protect people's lives

Brief introduction

1 Rated voltage of the cables is divided into 6 grades, which is 0.3/0.5kV,0.38/.066kV,1.9/3.3kV,3.6/6kV,6/10kV.

2 There are allowed long-term working temperatures of the cable conductor. For the cable of U(M)CPT-0.66/1.14, U(M)CPJB-0.66/1.14, U(M)CPJR-0.66/1.14 and 1.9/3.3kV, 3.6/6kV, 6/10kV, the temperature is 90℃;for the other, it is 65℃.

3 Minimum bending radius: For the cable of U (M)CPJB-0.66/1.14, U(M)CPJR-0.66/1.14,it is 15 times of the cable diameter; for the others, it is 6 times of the cable diameters.

4 The grounding wire should be well connected with the earth.

5The cable should be prevented from exposing to the sunshine for a long time.

Implemented standard

1 For the non-spread combustion cable, implement GB12972

2 For the flame-retardant cable, implement MT818

3 For the special mining cable(with bigger cross-section and higher voltage),implement the enterprise standard.

Type and Name:

We are focus

We specialize in manufacturing and exporting many kinds of wire and cables. We have professional engineers, skilled workers, advanced manufacturing equipments and scientific management.

Our commitment to service and our abilities to provide the ideal solutions for your application is the basis for our growth. When you come to Ninggang, you can expect personalized attention. Our experts will help to identify, solve and supply your flexible cable needs and requirements- for any environment.
