Product Details:
Payment & Shipping Terms:
|
| Insualtion: | XLPE | Sheath: | PVC |
|---|---|---|---|
| Material: | Copper | Conductor Type: | Class1 Or Class2 |
| Cores No.: | 2 To 61 | Size: | 0.75mm2 To 10mm2 |
| Conductor Shape: | Round | Color: | Black Or Grey |
| Corporation: | Shenghua Group | Brand: | Sh Cable |
| Highlight: | 61 Cores Un Armoured Cable,KEMA Certification Un Armoured Cable |
||

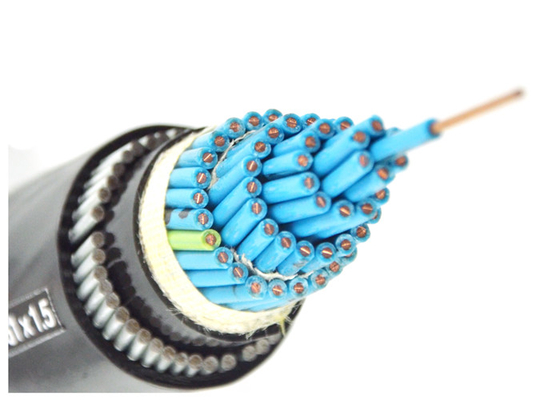

Professional 2 - 61 Cores Un Armoured Cable Customized CE KEMA Certification
In automated factories and energy plants, signal crosstalk and insulation breakdown in multi-core cables cause 35% of control system failures, triggering production halts and safety risks. Shanghai Shenghua Power Group Cable solves these challenges with its 2-61 Core Unarmoured Control Cables, featuring XLPE thermal stability, EMI-resistant separation, and KEMA-certified reliability for 450/750V applications in cable trenches, PLC panels, and robotic arms.
XLPE Insulation Superiority:
High-Core Precision:
Global Compliance:
| Core Config | Cross-Section (mm²) | Insulation Thickness (mm) | Max. DC Resistance (Ω/km) | Weight (kg/km) |
|---|---|---|---|---|
| 2-Core | 0.75–6.0 | 0.6–0.7 | 24.5 (0.75mm²) | 59–220 |
| 3-Core | 0.75–6.0 | 0.6–0.7 | 24.5 (0.75mm²) | 71–310 |
| 61-Core | Custom 0.75–4.0 | 0.6–1.0 | Custom ≤12.1 (1.5mm²) | 1,200+ |
Temp Range: -0°C to 70°C (operational), 160°C (short-circuit)
Bending Radius: 6× cable diameter • Standards: IEC 60227, IEC 60228, GB9330, BS/DIN/ICEA
40+ Years of Multi-Core Expertise:
Zero-Defect Manufacturing:
Rapid Customization:
Construction:
Conductor: Solid or Stranded Copper Conductor
Insualtion: XLPE
Sheath: PVC
Standard:
IEC Standard: IEC 60227, IEC60228
China Standard: GB9330
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage: 450/750V
Maximum Conductor Temperature: under normal (70℃), emergency (100℃ or short circuit no more than 5 s (160℃) conditions.
Min. Ambient Temp. 0 ℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 6 x cable O.D
Certificates
CE, RoHS, CCC, KEMA and more others at request
Application:
Suitable for being laid indoors, in cable trench, pipelines or other specific occasions.
Specifications:
| Cross-Sectional Area mm2 |
Thickness of Insulation |
Thickness of Sheath |
Overall Diameter | Min resistance of insulation at 70℃ MΩ/km |
Max.D.C resistance of at 20℃ MΩ/km |
Approx Weight (kg/km) |
|
| min | max | ||||||
| 2x0.75 | 0.6 | 1.2 | 6.7 | 8.1 | 0.012 | 24.5 | 59 |
| 2x1 | 0.6 | 1.2 | 7 | 8.5 | 0.011 | 18.1 | 67 |
| 2x1.5 | 0.6 | 1.2 | 7.9 | 9.5 | 0.011 | 12.1 | 86 |
| 2x2.5 | 0.7 | 1.2 | 9 | 10.9 | 0.01 | 7.41 | 120 |
| 2x4 | 0.7 | 1.2 | 9.9 | 11.9 | 0.0085 | 4.61 | 167 |
| 2x6 | 0.7 | 1.2 | 10.8 | 13.1 | 0.007 | 3.08 | 220 |
| 3x0.75 | 0.6 | 1.2 | 7.1 | 8.5 | 0.012 | 24.5 | 71 |
| 3x1 | 0.6 | 1.2 | 7.4 | 8.9 | 0.011 | 18.1 | 82 |
| 3x1.5 | 0.6 | 1.2 | 8.3 | 10 | 0.011 | 12.1 | 108 |
| 3x2.5 | 0.7 | 1.2 | 9.5 | 11.5 | 0.01 | 7.41 | 154 |
| 3x4 | 0.7 | 1.2 | 10.5 | 12.4 | 0.0085 | 4.61 | 210 |
| 3x6 | 0.7 | 1.2 | 11.5 | 13.9 | 0.007 | 3.08 | 310 |
FAQ
Q: How long does it take to get a quote back?
A: Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days.
Q: What warranties do your products carry?
A: SHAN cable guarantees that all of our products, wires cables,and more are free from defects. We will take back any product that does not meet the agreed quality by both parties. The specific terms are as follows :
1. We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire
2. We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
3. The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.
4. During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
Q: Do you sell other products besides wire and cable?
A: Wire and cable is our forte, however, we also sell connectors, cable assemblies and cable tools to name just a few. Our products serve numerous markets all over the world.
