| Color Of Insulation: | Two Core:Red,Blue Three Core:Blue,Black,Brown Four Core:Yellow/Green,Blue,Black,Brown | Application: | Lighting System |
|---|---|---|---|
| Nominal Area Of Conductor: | 2C ~,5C X1.5mm2 To 6.0mm2 | Test Voltage: | 2000V/5min |
| Conductor Type: | Solid Copper Conductor(class1) Stranded Copper Conductor(class2) | Standard: | IEC 60227 |
| Main Market: | Asia,Midldle-East,African, | Material: | PVC |
| Corporation: | Shenghua Group | Brand: | Sh Cable |
| Highlight: | electrical wire cable,insulated wire cable |
||

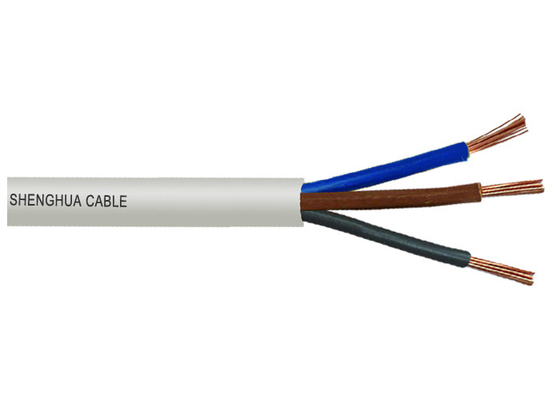

Fixed Wire 3x2.5 sqm,And 3x1.5sqmm With White PVC Jacket Good Price Made In China
Descriptions
Light PVC Sheathed Cable for fixed wiring.
Code designation: 60227 IEC 10 (International), BVV 300/500V(China)
Constructions

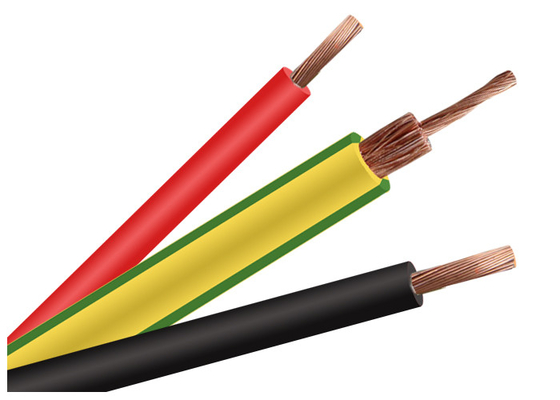

① Conductor: Plain circular solid copper conductor, comform to IEC 60228 class 1
Plain circular stranded copper conductor, comform to IEC 60228 class 2
② Insulation: PVC/C
③ Inner Covering
④ Overall Sheath: PVC type ST4
Note: Insulation color as per standards or at request
Applications
Used as fixed wiring cable of rated voltage 300/500V.
Standards
International: IEC 60227
China: GB/T 5023-2008
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage:300/500 V
Max. Conductor Temp. in normal use: 70℃
Min. Bending Radius: 4 x cable O.D
Certificates
CE, RoHS, CCC, KEMA and more others at request
BVV 300/500V
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight |
| mm2 | mm | mm2 | kg/km |
| 1x0.75 | 1x1/0.97 | 4.3 | 23 |
| 1x1.0 | 1x1/1.13 | 4.5 | 26.4 |
| 1x1.5(A) | 1x1/1.38 | 4.9 | 34.6 |
| 1x1.5(B) | 1x7/0.52 | 5.2 | 36.5 |
| 1X2.5(A) | 1x1/0.85 | 5.8 | 46.4 |
| 1X4(A) | 1x1/2.25 | 6.4 | 65.9 |
| 1X4(B) | 1x7/0.85 | 6.8 | 73.7 |
| 1X6(A) | 1x1/2.76 | 7.0 | 91.6 |
| 1X10 | 1x7/1.35 | 8.8 | 152.0 |
| 2X1.5(A) | 2x1/1.38 | 10.0 | 109 |
| 2X1.5(B) | 2x7/0.52 | 10.5 | 123 |
| 2X2.5(A) | 2x1/1.78 | 11.5 | 157 |
| 2X2.5(B) | 2x7/0.68 | 12.0 | 172 |
| 2X4(A) | 2x1/2.25 | 12.5 | 205 |
| 2X4(B) | 2x7/0.85 | 13.0 | 222 |
| 2X6(A) | 2x1/2.76 | 13.5 | 265 |
| 2X6(B) | 2x7/1.04 | 14.0 | 286 |
| 2X10 | 2x7/1.35 | 17.5 | 471 |
| 3X1.5(A) | 3x1/1.38 | 10.5 | 136 |
| 3X1.5(B) | 3x7/0.52 | 11.0 | 146 |
| 3X2.5(A) | 3x1/1.78 | 12.0 | 190 |
BVV 300/500V
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight |
| mm2 | mm | mm2 | kg/km |
| 3x2.5(B) | 3X7/0.68 | 12.5 | 207 |
| 3X4(A) | 3X1/2.25 | 13.0 | 252 |
| 3X4(B) | 3X7/0.85 | 13.5 | 272 |
| 3X6(A) | 3X1/2.76 | 14.5 | 344 |
| 3X10 | 3X7/1.35 | 19.0 | 574 |
| 4X1.5(A) | 4X1/1.38 | 11.5 | 164 |
| 4X1.5(B) | 4X7/0.52 | 12.0 | 174 |
| 4X2.5(B) | 4X7/0.68 | 13.5 | 252 |
| 4X4(A) | 4X1/2.25 | 14.5 | 321 |
| 4X4(B) | 4X7/0.85 | 15.0 | 346 |
| 4X6(A) | 4X1/1.04 | 16.0 | 470 |
| 4X6(B) | 4X7/2.76 | 17.0 | 439 |
| 5X1.5(A) | 5X1/1.38 | 12.0 | 192 |
| 5X1.5(B) | 5X7/0.52 | 12.5 | 205 |
| 5X2.5(A) | 5X1/1.78 | 14.0 | 272 |
| 5X2.5(B) | 5X7/0.68 | 14.5 | 292 |
| 5X4(A) | 5X1/2.25 | 16.0 | 397 |
| 5X4(B) | 5X7/0.85 | 17.0 | 418 |
| 5X6(A) | 5X1/2.76 | 17.5 | 518 |
| 5X6(B) | 5X7/1.04 | 18.5 | 550 |
