Product Details:
Payment & Shipping Terms:
|
| Color Of Insulation: | Two Core:Red,Blue Three Core:Blue,Black,Brown Four Core:Yellow/Green,Blue,Black,Brown | Application: | Used In The Switch Control,relay And Instrumentation Panels Of Power Switchgear And For Purposes Such As Internal Connectors In Rectifier Equipment ,motor Stard\ters And Controllers |
|---|---|---|---|
| Nominal Area Of Conductor: | 2C ~,5C X1.5mm2 To 6.0mm2 | Test Voltage: | 2000V/5min |
| Conductor Type: | Flexible Copper Conductor (class5) | Standard: | IEC 60227*3 |
| Main Market: | Asia,Midldle-East,African, | Material: | PVC |
| High Light: | electrical wire cable,insulated electrical wire |
||

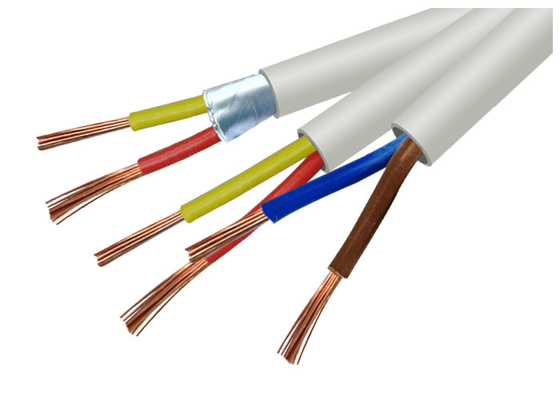

Three Core Flexible Wire Distributor from ShangHai Shenghua Cable Group
Descriptions
Ordinary PVC Sheathed cord
Code designation: 60227 IEC53 (International), RVV 300/500V(China)
Constructions
① Conductor: Flexible copper conductor, comform to IEC 60228 class 5
② Insulation: PVC/D
③ Sheath: PVC type ST5
Applications
Used in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.
Standards
International: IEC 60227
China: GB/T 5023-2008
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage:300/500 V
Max. Conductor Temp. in normal use: 70℃
Min. Bending Radius: 6 x cable O.D
Certificates
CE, RoHS, CCC, KEMA and more others at request
RVV 300 /300V
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight |
| mm2 | mm | mm2 | kg/km |
| 2X0.5 | 2X16/0.2 | 5.9 | 47.9 |
| 2X0.75 | 2X24/0.2 | 6.3 | 56.2 |
| 3X0.5 | 3X16/0.2 | 6.3 | 58.4 |
| 3X0.75 | 3X24/0.2 | 6.7 | 72.9 |
RVV 300 / 500V
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight |
| mm2 | mm | mm2 | kg/km |
| 2X0.75 | 2X24/0.20 | 7.2 | 50 |
| 2X1.0 | 2X32/0.20 | 7.5 | 57.8 |
| 2X1.5 | 2X30/0.25 | 8.6 | 74.7 |
| 2X2.5 | 2X49/0.25 | 10.6 | 120 |
| 3X0.75 | 3X24/0.20 | 7.6 | 63.1 |
| 3X1.0 | 3X32/0.20 | 8.0 | 74.0 |
| 3X1.5 | 3X30/0.25 | 9.4 | 102.0 |
| 3X2.5 | 3X49/0.25 | 11.4 | 162.0 |
| 4X0.75 | 4X24/0.20 | 8.3 | 78.5 |
| 4X1.0 | 4X32/0.20 | 9.0 | 97.2 |
| 4X1.5 | 4X30/0.25 | 10.5 | 133.0 |
| 4X2.5 | 4X49/0.25 | 12.5 | 204.0 |
| 5X0.75 | 5X24/0.20 | 9.3 | 96.9 |
| 5X1.0 | 5X32/0.20 | 9.8 | 115 |
| 5X1.5 | 5X30/0.25 | 11.6 | 158 |
| 5X2.5 | 5X49/0.25 | 13.9 | 249 |
