CU/PVC/PVC H07VV-F 3x2.5mm2,3x1.5mm2 ,3x4mm2 Copper material,White Colour

China CU/PVC/PVC H07VV-F 3x2.5mm2,3x1.5mm2 ,3x4mm2 Copper material,White Colour supplier
CU/PVC/PVC H07VV-F 3x2.5mm2,3x1.5mm2 ,3x4mm2 Copper material,White Colour supplier CU/PVC/PVC H07VV-F 3x2.5mm2,3x1.5mm2 ,3x4mm2 Copper material,White Colour supplier CU/PVC/PVC H07VV-F 3x2.5mm2,3x1.5mm2 ,3x4mm2 Copper material,White Colour supplier CU/PVC/PVC H07VV-F 3x2.5mm2,3x1.5mm2 ,3x4mm2 Copper material,White Colour supplier

Large Image :  CU/PVC/PVC H07VV-F 3x2.5mm2,3x1.5mm2 ,3x4mm2 Copper material,White Colour

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: H07VV-F

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Color Of Insulation: Two Core:Red,Blue Three Core:Blue,Black,Brown Four Core:Yellow/Green,Blue,Black,Brown Nominal Area Of Conductor: 2C ~,5C X1.5mm2 To 6.0mm2
Test Voltage: 2500V/5mins Conductor Type: Flexible Copper Conductor (class5)
Jacket Colour: White Warranty: 2 Years
High Light:

insulated electrical wire

,

insulated wire cable

CU/PVC/PVC H07VV-F 3x2.5mm2,3x1.5mm2 ,3x4mm2 Copper material,White Colour



Descriptions


Ordinary PVC Sheathed cord
Code designation: 60227 IEC53 (International), RVV(H05VV-F) 300/500V(China)

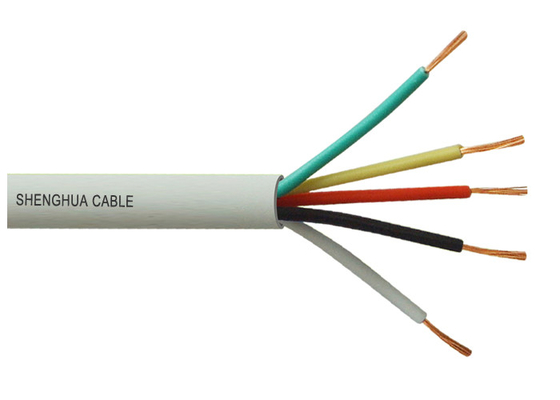

Constructions
①  Conductor: Flexible copper conductor, comform to IEC 60228 class 5
②  Insulation: PVC/D
③  Sheath: PVC type ST5


Applications


Used in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.
Standards
International: IEC 60227
China: GB/T 5023-2008
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage:300/500 V
Max. Conductor Temp. in normal use: 70℃
Min. Bending Radius: 6 x cable O.D
Certificates
CE, RoHS, CCC, KEMA and more others at request



H05VV-F



Nominal area of conductor No./Dia. Of Conductor Max.O.D Approx.Weight
mm2 mm mm2 kg/km
2X0.5 2X16/0.2 5.9 47.9
2X0.75 2X24/0.2 6.3 56.2
3X0.5 3X16/0.2 6.3 58.4
3X0.75 3X24/0.2 6.7 72.9

H05VV-F

Nominal area of conductor No./Dia. Of Conductor Max.O.D Approx.Weight
mm2 mm mm2 kg/km
2X0.75 2X24/0.20 7.2 50
2X1.0 2X32/0.20 7.5 57.8
2X1.5 2X30/0.25 8.6 74.7
2X2.5 2X49/0.25 10.6 120
3X0.75 3X24/0.20 7.6 63.1
3X1.0 3X32/0.20 8.0 74.0
3X1.5 3X30/0.25 9.4 102.0
3X2.5 3X49/0.25 11.4 162.0
4X0.75 4X24/0.20 8.3 78.5
4X1.0 4X32/0.20 9.0 97.2
4X1.5 4X30/0.25 10.5 133.0
4X2.5 4X49/0.25 12.5 204.0
5X0.75 5X24/0.20 9.3 96.9
5X1.0 5X32/0.20 9.8 115
5X1.5 5X30/0.25 11.6 158
5X2.5 5X49/0.25 13.9 249
