Product Details:
Payment & Shipping Terms:
|
| Color Of Insulation: | Any Colour | Sample: | Free |
|---|---|---|---|
| Nominal Area Of Conductor: | 6mm2 To 630mm2 | Warranty: | 2 Years |
| Conductor Type: | Stranded Copper Conductor(class2) | Standard: | IEC 60502-1,IEC60228 |
| Main Market: | Asia,Midldle-East,African, | ||
| High Light: | prefab cable,fire resistance cable |
||

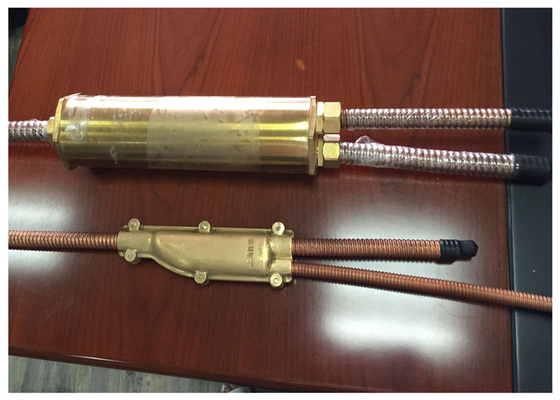

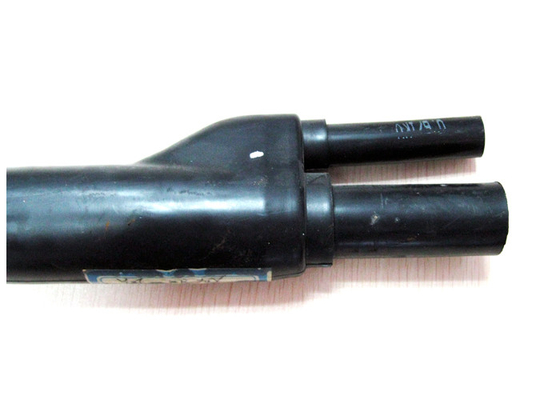

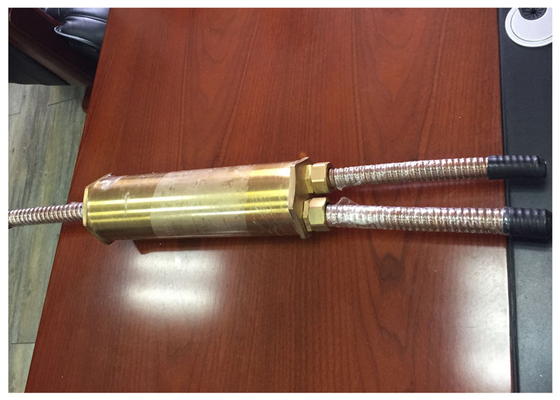

Single Core Prefabricated Branch Cable Flame Resistant Main cable 1 x 185 mm2
Prefab branch cable with rated voltage 0.6/1KVis a new Kind of low voltage distribution products. The prefab style can decrease the labor intensity greatly, shorten work time, and reduce cost greatly.
1. Brief introduction
Prefab branch cable is a new kind of low voltage distribution products, the prefab style can decrease the labor intensity greatly, shorten worktime, reduce cost greatly. The products is widely used at mid and high building highway, bridges, channels, high level workshop etc with its super performance.
2. Standards
Our factory has complied with factory standards according to the IEC60502 and JIS376A. The insulation performance is much superior than IEC60502, and the joint is tested according to the standard of GB9732.
YDF-YJLV 0.6/1KV
Single-core ALU/XLPE/PVC prefabricated branch cables
| Nominal area of conductor | Shape and structure | Diameter | Thickness of insulation | Thickness of sheath | Approx overall diameter | Approx weight | Max.D.C Resistance of Conductor(20℃) |
| mm2 | mm | mm | mm | mm | kg/km | Ω /km | |
| 10 | Circular close stranded wire | 3.7 | 0.7 | 1.4 | 9.0 | 95 | 3.08 |
| 16 | 4.7 | 0.7 | 1.4 | 9.5 | 120 | 1.91 | |
| 25 | 5.9 | 0.9 | 1.4 | 11.5 | 1900 | 1.20 | |
| 35 | 7.0 | 0.9 | 1.4 | 12.0 | 207.0 | 0.868 | |
| 50 | 8.5 | 1.0 | 1.4 | 14.0 | 245.0 | 0.641 | |
| 70 | 10.1 | 1.1 | 1.4 | 16.0 | 336.0 | 0.443 | |
| 95 | 11.7 | 1.1 | 1.5 | 18.0 | 455.0 | 0.320 | |
| 120 | 13.2 | 1.2 | 1.5 | 20.0 | 550.0 | 0.253 | |
| 150 | 14.7 | 1.4 | 1.6 | 22.0 | 650.0 | 0.206 | |
| 185 | 16.4 | 1.6 | 1.6 | 24.0 | 804.0 | 0.164 | |
| 240 | 18.6 | 1.7 | 1.7 | 27.0 | 1021.0 | 0.125 | |
| 300 | 20.8 | 1.8 | 1.8 | 30.0 | 1160.0 | 0.100 | |
| 400 | 24.1 | 2.0 | 1.9 | 34.0 | 1469.0 | 0.0778 | |
| 500 | 26.9 | 2.2 | 2.0 | 37.0 | 1829.0 | 0.0605 | |
| 630 | 30.2 | 2.4 | 2.2 | 41.0 | 2305.0 | 0.0469 | |
| 800 | 34.8 | 2.6 | 2.3 | 46.0 | 2910.0 | 0.0367 | |
| 1000 | 39.0 | 2.8 | 2.4 | 51.0 | 3604.0 | 0.0291 |
Packing and shipping
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
