Cable Type: | THW | Size: | 1.5mm2 -400mm2 |
---|---|---|---|
Insulation Colour: | Any Colour | Sample: | Available |
Voltage: | 450/750V | Conductor Material: | Copper. |
Corporation: | Shenghua Group | Brand: | Sh Cable |
Highlight: | electrical wire cable,insulated wire cable |

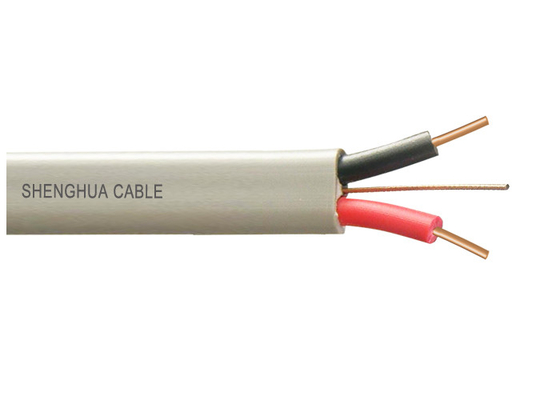

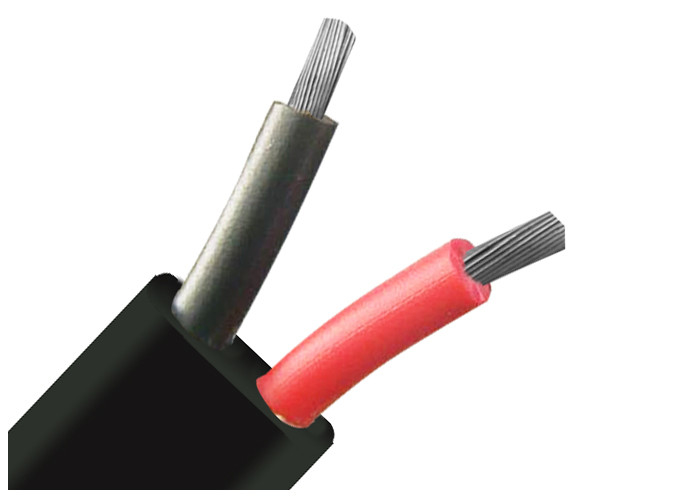

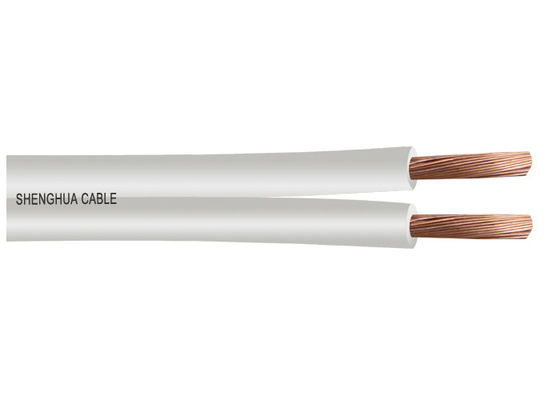

Dry Rooms 16 AWG 14 AWG 12 AWG Electrical Wire Flat Electrical Cable
Descriptions
Single-core non-sheathed cables with rigid conductor for general purposes
Code designation: 60227 IEC 02/06 (International), RV (China), H07V-K/H05V-K(VDE)
Constructions
① Conductor: Plain circular Flexible copper conductor, comform to IEC 60228 class 5
② Insulation: PVC
Applications
In dry rooms, apparatus switch and distribution boards, for fixed installation in conduits, over and under plaster and on insulated supports over plaster. Direct laying in plaster is not permitted.
Standards
International: IEC 60227
China: GB/T 5023-2008
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage: 450/750 V,300/500V
Max. Conductor Temp. in normal use: 70℃
Min. Bending Radius: 4 x cable O.D
Certificates
CE, RoHS, CCC, KEMA and more others at request
Specifications
THW 300/500V
Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight |
mm2 | mm | mm2 | kg/km |
0.3 | 16/0.15 | 2.3 | 6.4 |
0.4 | 23/0.15 | 2.5 | 8.1 |
0.5 | 16/0.2 | 2.6 | 9.1 |
0.75 | 24/0.2 | 2.8 | 12.2 |
1.0 | 32/0.2 | 3.0 | 15.1 |
THW 450/750V
Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight |
mm2 | mm | mm2 | kg/km |
1.5 | 30/0.25 | 3.4 | 21.4 |
2.5 | 49/0.25 | 4.1 | 24.5 |
THW 450 / 750V
Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight |
mm2 | mm | mm2 | kg/km |
4 | 56/0.20 | 4.8 | 51.8 |
6 | 84/0.30 | 6.4 | 71.4 |
10 | 84/0.30 | 8.0 | 12.4 |
16 | 128/0.4 | 8.8 | 173 |
25 | 200/0.4 | 11 | 268 |
35 | 280/0.4 | 12.5 | 371 |
50 | 400/0.4 | 14.5 | 526 |
70 | 356/0.5 | 17 | 727 |
95 | 485/0.5 | 19 | 959 |
120 | 614/0.5 | 21 | 1201 |
150 | 765/0.5 | 23.5 | 1508 |
185 | 944/0.5 | 26.0 | 1844 |
240 | 1225/0.5 | 29.5 | 2420 |
