LIYCY Shield House Wiring Electrical Power Cable , Insulated Wire Cable

China LIYCY Shield House Wiring Electrical Power Cable , Insulated Wire Cable supplier
LIYCY Shield House Wiring Electrical Power Cable , Insulated Wire Cable supplier LIYCY Shield House Wiring Electrical Power Cable , Insulated Wire Cable supplier LIYCY Shield House Wiring Electrical Power Cable , Insulated Wire Cable supplier LIYCY Shield House Wiring Electrical Power Cable , Insulated Wire Cable supplier

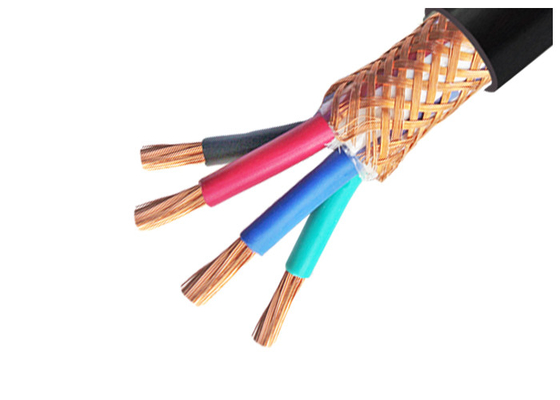

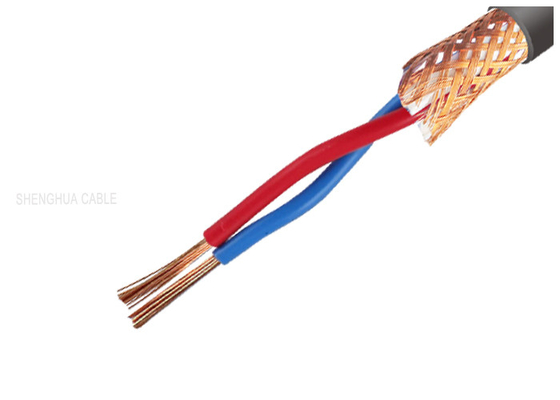

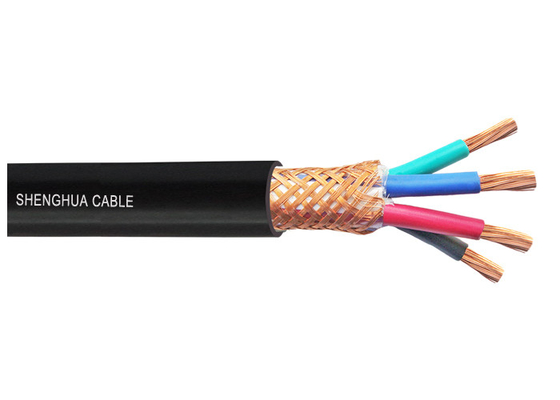

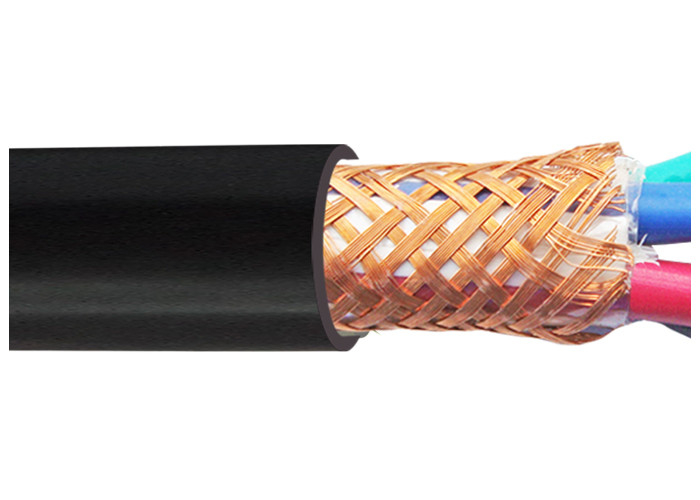

Large Image :  LIYCY Shield House Wiring Electrical Power Cable , Insulated Wire Cable

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: LIYCY

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Cable Type: LIYCY Standard: VDE
Insulation Colour: Any Colour Function: Shield Electrical Cable Wire
Warranty: 2 Years Shield Material: Copper Wire Braid (CWB)
High Light:

insulated electrical wire

,

insulated wire cable

LIYCY Shield House Wiring Electrical Power Cable , Insulated Wire Cable





Specifications





LIYCY,LIYCY-105 300/300V



Nominal area of conductor No./Dia. Of Conductor Max.O.D Approx.Weight Max. D.C Resistance of Conductor (20 ℃)Ω /km
mm2 mm mm2 kg/km Ω /km
0.20 12/0.15 2.2 8.3 92.3
0.30 16/0.15 2.6 10.5 69.2
0.40 23/0.15 3.0 15.9 48.2
0.50 16/0.20 3.1 16.8 39.0
0.75 24/0.20 3.4 20.9 26.0
1.0 32/0.20 3.8 26.5 19.5
1.5 30/0.25 4.1 32.4 13.3
2.5 49/0.25 4.9 48.2 7.98



LIYCY,LIYCY-90 300/300V 2-CORE ELLIPSE MODEL



Nominal area of conductor No./Dia. Of Conductor Max.O.D Approx.Weight Max. D.C Resistance of Conductor (20 ℃)Ω /km
mm2 mm mm2 kg/km Ω /km
2X0.20 2X12/0.15 2.2X3.9 14.7 92.3
2X0.30 2X16/0.15 2.8X4.8 19.7 69.2
2X0.40 2X23/0.15 3.0X5.2 28.1 48.2
2X0.50 2X16/0.20 3.1X5.4 29.9 39.0



LIYCY,LIYCY-90 300/300V 2-CORE ELLIPSE MODEL



Nominal area of conductor No./Dia. Of Conductor Max.O.D Approx.Weight Max. D.C Resistance of Conductor (20 ℃)Ω /km
mm2 mm mm2 kg/km Ω /km
2X0.75 2X24/0.20 3.4X6.0 37.5 26.0
2X1.0 2X32/0.20 3.8X6.8 48.6 19.5
2X1.5 2X30/0.25 4.1X7.4 59.9 13.3



LIYCY,LIYCY1 300/300V 2-CORE



Nominal area of conductor No./Dia. Of Conductor Max.O.D Approx.Weight Max. D.C Resistance of Conductor (20 ℃)Ω /km
mm2 mm mm2 kg/km Ω /km
2X0.20 2X12/0.15 5.3 33.2 92.3
2X0.30 2X16/0.15 6.2 49.3 69.2
2X0.40 2X23/0.15 6.6 57.0 48.2
2X0.50 2X16/0.20 6.8 59.2 39.0
2X0.75 2X24/0.20 7.4 70.7 26.0
2X1.0 2X32/0.20 8.2 86.7 19.5
2X1.5 2X30/0.25 9.2 110.4 13.3



LIYCY,LIYCY1 300/300V 3-CORE



Nominal area of conductor No./Dia. Of Conductor Max.O.D Approx.Weight Max. D.C Resistance of Conductor (20 ℃)Ω /km
mm2 mm mm2 kg/km Ω /km
3X0.20 3X12/0.15 5.8 38.6 92.3
3X0.30 3X16/0.15 6.5 48.6 69.2
3X0.40 3X23/0.15 6.9 56.7 48.2
3X0.50 3X16/0.20 7.1 60.7 39.0
3X0.75 3X24/0.20 7.8 73.6 26.0
3X1.0 3X32/0.20 9.1 100 19.5
3X1.5 3X30/0.25 10.1 131 13.3
4X0.20 4X12/0.15 6.2 45.9 92.3
4X0.30 4X16/0.15 7.0 57.5 69.2
4X0.40 4X23/0.15 7.5 67.9 48.2





















RVVP,RVVP1 300/300V 3-CORE

Nominal area of conductor No./Dia. Of Conductor Max.O.D Approx.Weight Max. D.C Resistance of Conductor (20 ℃)Ω /km
mm2 mm mm2 kg/km Ω /km
5X0.20 5x12/0.15 6.7 52.7 92.3
5X0.30 5x16/0.15 7.6 66.6 69.2
5X0.40 5x23/0.15 8.1 78.8 48.2
6x0.20 6x12/0.15 7.2 59.6 92.3
6x0.30 6x16/0.15 8.2 76.6 69.2
6x0.40 6x23/0.15 9.2 98.3 48.2
7x0.20 7x12/0.15 7.2 64.2 92.3
7x0.30 7x16/0.15 8.2 82.3 69.2
7x0.40 7x23/0.15 9.2 106.0 48.2
10x0.20 10x12/0.15 9.3 94.3 92.3
10x0.30 10x16/0.15 10.9 132.0 69.2
10x0.40 10x23/0.15 11.6 157.0 48.2
12x0.20 12x12/0.15 9.6 105 92.3
12x0.30 12x16/0.15 11.2 147 69.2
12x0.40 12x23/0.15 11.9 175 48.2



LIYCY Shield House Wiring Electrical Power Cable , Insulated Wire Cable 0
