Product Details:
Payment & Shipping Terms:
|
| Cable Type: | RVVP | Sample: | Free |
|---|---|---|---|
| Insulation Colour: | Any Colour | Function: | Switch Control |
| Warranty: | 2 Years | Shield Material: | Copper Wire Braid (CWB) |
| High Light: | insulated electrical wire,insulated wire cable |
||

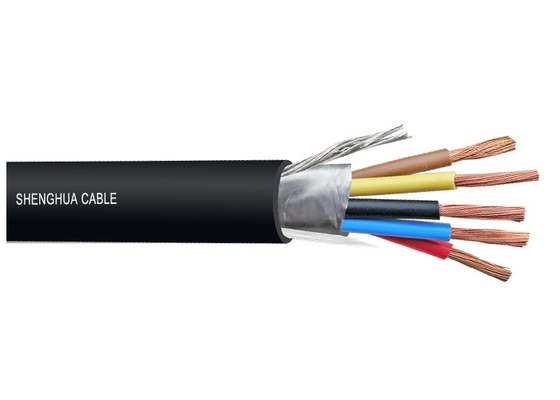

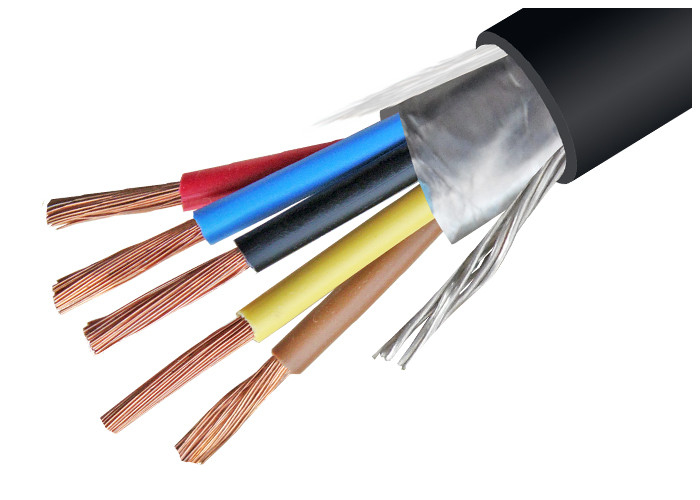

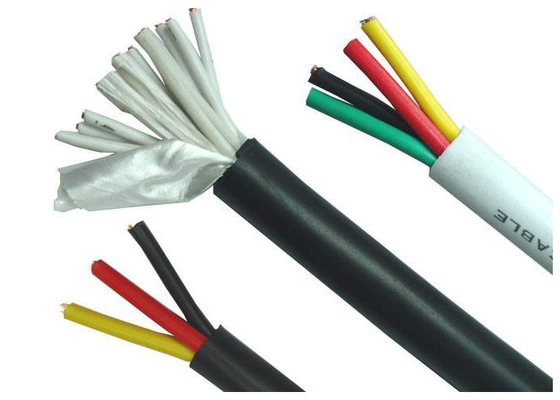

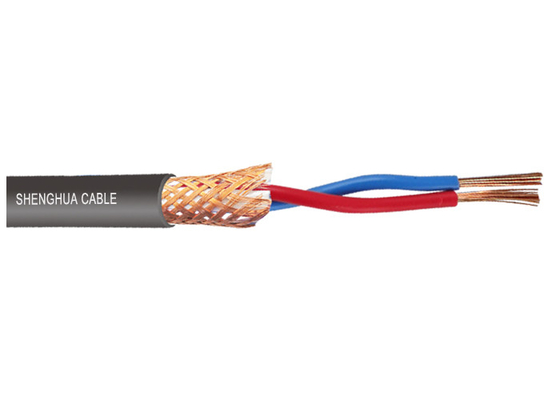

RVVP Shield Flexible Power Electrical Cable Wire Environmental Protection
Application
In dry rooms ,apparatus switch and distribution boards,for fixed installation in conduits,over and under plaster and on insulated supports over plaster,direct laying in plaster is not permitted
Specifications
RVP,RVP-105 300/300V
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight | Max. D.C Resistance of Conductor (20 ℃)Ω /km |
| mm2 | mm | mm2 | kg/km | Ω /km |
| 0.20 | 12/0.15 | 2.2 | 8.3 | 92.3 |
| 0.30 | 16/0.15 | 2.6 | 10.5 | 69.2 |
| 0.40 | 23/0.15 | 3.0 | 15.9 | 48.2 |
| 0.50 | 16/0.20 | 3.1 | 16.8 | 39.0 |
| 0.75 | 24/0.20 | 3.4 | 20.9 | 26.0 |
| 1.0 | 32/0.20 | 3.8 | 26.5 | 19.5 |
| 1.5 | 30/0.25 | 4.1 | 32.4 | 13.3 |
| 2.5 | 49/0.25 | 4.9 | 48.2 | 7.98 |
RVP,RVP-90 300/300V 2-CORE ELLIPSE MODEL
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight | Max. D.C Resistance of Conductor (20 ℃)Ω /km |
| mm2 | mm | mm2 | kg/km | Ω /km |
| 2X0.20 | 2X12/0.15 | 2.2X3.9 | 14.7 | 92.3 |
| 2X0.30 | 2X16/0.15 | 2.8X4.8 | 19.7 | 69.2 |
| 2X0.40 | 2X23/0.15 | 3.0X5.2 | 28.1 | 48.2 |
| 2X0.50 | 2X16/0.20 | 3.1X5.4 | 29.9 | 39.0 |
RVP,RVP-90 300/300V 2-CORE ELLIPSE MODEL
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight | Max. D.C Resistance of Conductor (20 ℃)Ω /km |
| mm2 | mm | mm2 | kg/km | Ω /km |
| 2X0.75 | 2X24/0.20 | 3.4X6.0 | 37.5 | 26.0 |
| 2X1.0 | 2X32/0.20 | 3.8X6.8 | 48.6 | 19.5 |
| 2X1.5 | 2X30/0.25 | 4.1X7.4 | 59.9 | 13.3 |
RVVP,RVVP1 300/300V 2-CORE
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight | Max. D.C Resistance of Conductor (20 ℃)Ω /km |
| mm2 | mm | mm2 | kg/km | Ω /km |
| 2X0.20 | 2X12/0.15 | 5.3 | 33.2 | 92.3 |
| 2X0.30 | 2X16/0.15 | 6.2 | 49.3 | 69.2 |
| 2X0.40 | 2X23/0.15 | 6.6 | 57.0 | 48.2 |
| 2X0.50 | 2X16/0.20 | 6.8 | 59.2 | 39.0 |
| 2X0.75 | 2X24/0.20 | 7.4 | 70.7 | 26.0 |
| 2X1.0 | 2X32/0.20 | 8.2 | 86.7 | 19.5 |
| 2X1.5 | 2X30/0.25 | 9.2 | 110.4 | 13.3 |
RVVP,RVVP1 300/300V 3-CORE
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight | Max. D.C Resistance of Conductor (20 ℃)Ω /km |
| mm2 | mm | mm2 | kg/km | Ω /km |
| 3X0.20 | 3X12/0.15 | 5.8 | 38.6 | 92.3 |
| 3X0.30 | 3X16/0.15 | 6.5 | 48.6 | 69.2 |
| 3X0.40 | 3X23/0.15 | 6.9 | 56.7 | 48.2 |
| 3X0.50 | 3X16/0.20 | 7.1 | 60.7 | 39.0 |
| 3X0.75 | 3X24/0.20 | 7.8 | 73.6 | 26.0 |
| 3X1.0 | 3X32/0.20 | 9.1 | 100 | 19.5 |
| 3X1.5 | 3X30/0.25 | 10.1 | 131 | 13.3 |
| 4X0.20 | 4X12/0.15 | 6.2 | 45.9 | 92.3 |
| 4X0.30 | 4X16/0.15 | 7.0 | 57.5 | 69.2 |
| 4X0.40 | 4X23/0.15 | 7.5 | 67.9 | 48.2 |
RVVP,RVVP1 300/300V 3-CORE
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight | Max. D.C Resistance of Conductor (20 ℃)Ω /km |
| mm2 | mm | mm2 | kg/km | Ω /km |
| 5X0.20 | 5x12/0.15 | 6.7 | 52.7 | 92.3 |
| 5X0.30 | 5x16/0.15 | 7.6 | 66.6 | 69.2 |
| 5X0.40 | 5x23/0.15 | 8.1 | 78.8 | 48.2 |
| 6x0.20 | 6x12/0.15 | 7.2 | 59.6 | 92.3 |
| 6x0.30 | 6x16/0.15 | 8.2 | 76.6 | 69.2 |
| 6x0.40 | 6x23/0.15 | 9.2 | 98.3 | 48.2 |
| 7x0.20 | 7x12/0.15 | 7.2 | 64.2 | 92.3 |
| 7x0.30 | 7x16/0.15 | 8.2 | 82.3 | 69.2 |
| 7x0.40 | 7x23/0.15 | 9.2 | 106.0 | 48.2 |
| 10x0.20 | 10x12/0.15 | 9.3 | 94.3 | 92.3 |
| 10x0.30 | 10x16/0.15 | 10.9 | 132.0 | 69.2 |
| 10x0.40 | 10x23/0.15 | 11.6 | 157.0 | 48.2 |
| 12x0.20 | 12x12/0.15 | 9.6 | 105 | 92.3 |
| 12x0.30 | 12x16/0.15 | 11.2 | 147 | 69.2 |
| 12x0.40 | 12x23/0.15 | 11.9 | 175 | 48.2 |
