Product Details:
Payment & Shipping Terms:
|
| Cable Type: | H05V-K | Operating Temperature: | 70℃ |
|---|---|---|---|
| Insulation Colour: | Any Colour | Warranty: | 2 Years |
| Voltage: | 450/750V | Conductor Material: | Copper Class5 |
| High Light: | electrical wire cable,insulated wire cable |
||

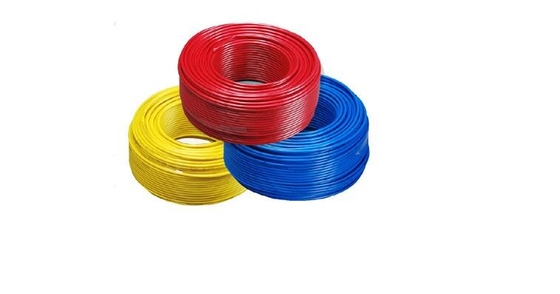

Single Core Electrical Cable Wire 70℃ Operating Temperature CE KEMA Certification
1. Description:

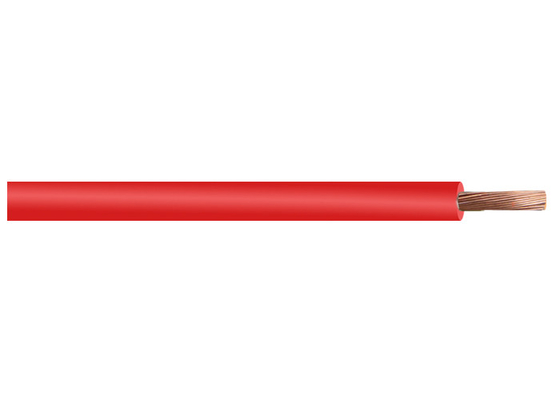

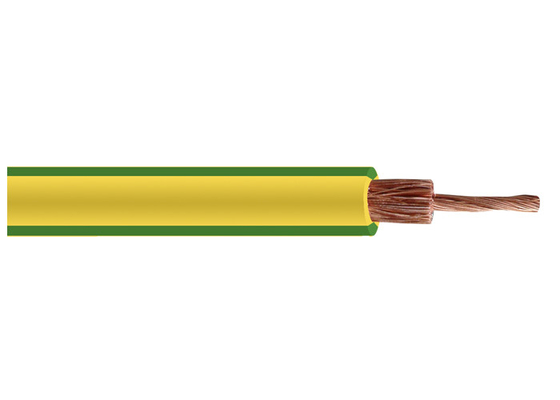

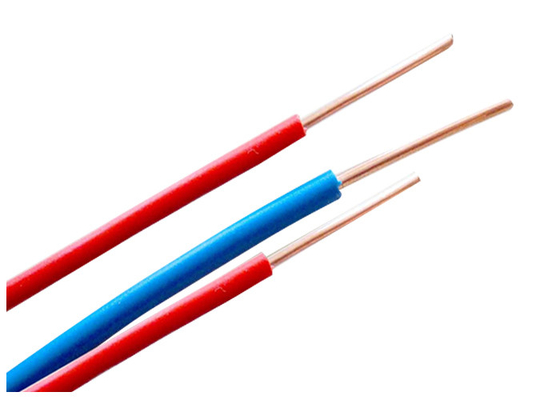

Single core cables with copper conductor , ( solid, stranded or flexible ) and insulated with PVC compound. The cables are manufactured according to IEC 60227&BS 6004 specifications.
2. Construction:
- Conductor : Plain annealed circular copper according to IEC 60228 class 1,2 ,5 and 6.
- Insulation : PVC compound rated 70º C or 85º C for continuous operation.
3. Applications : Building wires fixed installation and laid in pipes for general applications
H05V-K
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight | Max. D.C Resistance of Conductor (20 ℃)Ω /km |
| mm2 | mm | mm2 | kg/km | Ω /km |
| 0.5 | 1/0.80 | 2.3 | 8.5 | 36.0 |
| 0.75(A) | 1/0.97 | 2.5 | 11.1 | 24.5 |
| 0.75(B) | 7/0.37 | 2.6 | 12.0 | 24.5 |
| 1.0(A) | 1/1.13 | 2.7 | 13.9 | 18.1 |
| 1.0(B) | 7/0.43 | 2.8 | 15.0 | 18.1 |
H07V-K
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight | Max. D.C Resistance of Conductor (20 ℃)Ω /km | ||
| mm2 | mm | mm2 | kg/km | Ω /km | ||
| Copper | Aluminium | Aluminium | Copper | |||
| 1.5(A) | 1/1.38 | 3.2 | 20.3 | 12.1 | ||
| 1.5(B) | 7/0.52 | 3.3 | 21.6 | 12.1 | ||
| 2.5(A) | 1/1.78 | 3.9 | 31.6 | 17 | 11.8 | 7.41 |
| 2.5(B) | 7/0.68 | 4.0 | 34.8 | 7.41 | ||
| 4(A) | 1/2.55 | 4.4 | 47.1 | 22 | 7.39 | 4.61 |
| 4(B) | 7/0.85 | 4.6 | 50.3 | |||
H07V-K
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight | Max. D.C Resistance of Conductor (20 ℃)Ω /km | ||
| mm2 | mm | mm2 | kg/km | Ω /km | ||
| Copper | Aluminium | Aluminium | Copper | |||
| 6(A) | 7/0.85 | 5.0 | 50.3 | 29 | 4.91 | 3.08 |
| 6(B) | 7/1.04 | 5.2 | 71.2 | 29 | 4.91 | 3.08 |
| 10 | 7/1.35 | 6.4 | 119 | 62 | 3.08 | 1.83 |
| 16 | 7/1.70 | 7.8 | 179 | 78 | 1.91 | 1.15 |
| 25 | 27/2.04 | 9.7 | 281 | 118 | 1.20 | 0.727 |
| 35 | 27/2.52 | 10.9 | 381 | 156 | 0.868 | 0.524 |
| 50 | 19/1.78 | 12.8 | 521 | 215 | 0.641 | 0.387 |
| 70 | 19/2.14 | 14.4 | 734 | 282 | 0.443 | 0.268 |
| 95 | 19/2.52 | 17.1 | 962 | 385 | 0.320 | 0.193 |
| 120 | 37/2.03 | 18.8 | 1180 | 431 | 0.253 | 0.153 |
| 150 | 37/2.25 | 20.9 | 1470 | 539 | 0.206 | 0.124 |
| 185 | 37/2.52 | 23.3 | 1810 | 666 | 0.164 | 0.0991 |
| 240 | 61/2.25 | 26.6 | 2350 | 857 | 0.125 | 0.0754 |
| 300 | 61/2.52 | 29.6 | 2930 | 1070 | 0.100 | 0.0601 |
| 400 | 61/2.85 | 33.2 | 3870 | 1390 | 0.0778 | 0.0470 |
