Product Details:
Payment & Shipping Terms:
|
| Operating Temp: | 70 ℃ | Short Circiut Temp: | 160 ℃ |
|---|---|---|---|
| Cable Size: | 2C ~,5C X1.5mm2 To 6.0mm2 | Sample: | Free |
| Conductor Type: | Flexible Copper Conductor (class5) | Standard: | IEC 60227*3 |
| Main Market: | Asia,Midldle-East,African, | Material: | PVC |
| High Light: | electrical wire cable,insulated wire cable |
||

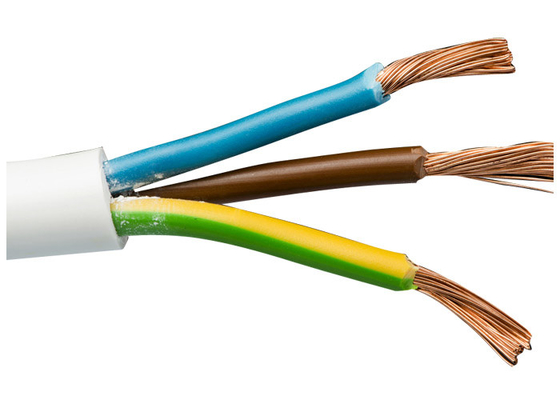

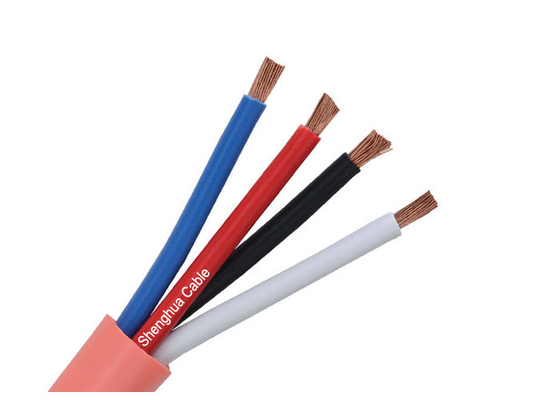

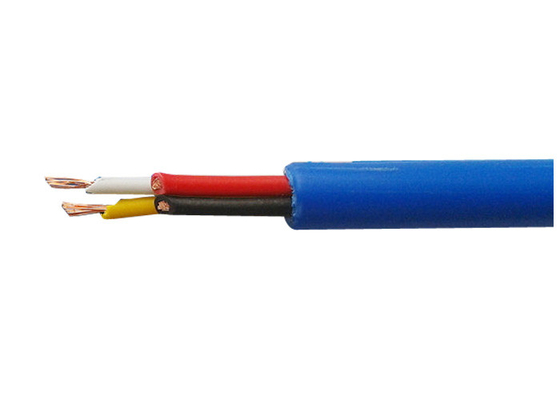

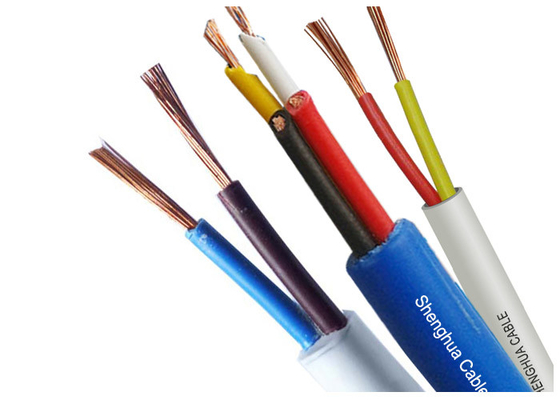

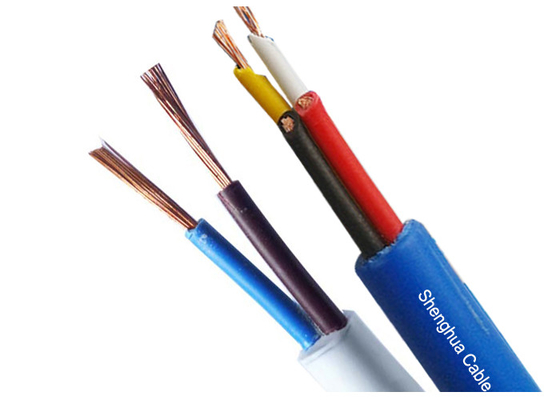

indoor Electrical Wire 300 Volt 500 Voltage Multicore Industrial Electrical Cable
1. Description :
H05VV-F
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight |
| mm2 | mm | mm2 | kg/km |
| 2X0.5 | 2X16/0.2 | 5.9 | 47.9 |
| 2X0.75 | 2X24/0.2 | 6.3 | 56.2 |
| 3X0.5 | 3X16/0.2 | 6.3 | 58.4 |
| 3X0.75 | 3X24/0.2 | 6.7 | 72.9 |
H05VV-F
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight |
| mm2 | mm | mm2 | kg/km |
| 2X0.75 | 2X24/0.20 | 7.2 | 50 |
| 2X1.0 | 2X32/0.20 | 7.5 | 57.8 |
| 2X1.5 | 2X30/0.25 | 8.6 | 74.7 |
| 2X2.5 | 2X49/0.25 | 10.6 | 120 |
| 3X0.75 | 3X24/0.20 | 7.6 | 63.1 |
| 3X1.0 | 3X32/0.20 | 8.0 | 74.0 |
| 3X1.5 | 3X30/0.25 | 9.4 | 102.0 |
| 3X2.5 | 3X49/0.25 | 11.4 | 162.0 |
| 4X0.75 | 4X24/0.20 | 8.3 | 78.5 |
| 4X1.0 | 4X32/0.20 | 9.0 | 97.2 |
| 4X1.5 | 4X30/0.25 | 10.5 | 133.0 |
| 4X2.5 | 4X49/0.25 | 12.5 | 204.0 |
| 5X0.75 | 5X24/0.20 | 9.3 | 96.9 |
| 5X1.0 | 5X32/0.20 | 9.8 | 115 |
| 5X1.5 | 5X30/0.25 | 11.6 | 158 |
| 5X2.5 | 5X49/0.25 | 13.9 | 249 |
