Galvanized Steel Wire Bare Conductor , Acsr Rail Conductor ASTM A475 Certification

China Galvanized Steel Wire Bare Conductor , Acsr Rail Conductor ASTM A475 Certification supplier
Galvanized Steel Wire Bare Conductor , Acsr Rail Conductor ASTM A475 Certification supplier Galvanized Steel Wire Bare Conductor , Acsr Rail Conductor ASTM A475 Certification supplier

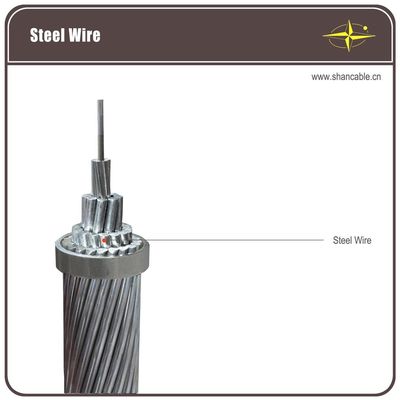

Large Image :  Galvanized Steel Wire Bare Conductor , Acsr Rail Conductor ASTM A475 Certification

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ASTM A475, BS 183:1972
Model Number: GSW

Payment & Shipping Terms:

Minimum Order Quantity: 0.5km
Price: 0.10-20.99USD/m
Packaging Details: Wooden Drum or Steel Drum
Delivery Time: 5 Days or More
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Conductor: GALVANIZED STEEL WIRE Code Name: GSW
Single Wire Diameter: 1.24-2.50 Tensile Strength: 1290mpa~1620mpa
Weight Of Zinc: 195 G/m²~290g/m² Application: Core Of ACSR

Galvanized Steel Wire Bare Conductor , Acsr Rail Conductor ASTM A475 Certification





The product galvanized steel wire (GSW) is used for the cord of ACSR (Aluminum Conductor Steel Reinforced) conductor. Being the leading enterprise of this industry, the GSW manufactured by Shenghua has excellent mechanical property, best quality of coating and nice condition of surface.



  Diameter(mm)     Tensile Strength(Mpa)     Weight of Zinc(g/m2)
  1.24~2.25     1340~1620     185~215
  2.25~3.00     1310~1590     230
  3.00~3.50     1290~1550     245
  3.50~4.25     1290~1520     260
  4.25~4.75     1290~1520     275
  4.75~5.50     1290~1520     290

Intensity Level Wire Diameter Min. Tensile Min. Stress With 1% Min. Extension Min. Number of 360° Diameter of Testing
    Strength Extension Percentage When L=250 twists Mandril
  mm   mpa mpa %     multiple
  >1.24~2.25 1340 1170 3.0   16 1
  >2.25~2.75 1310 1140 3.0   16 1
  >2.75~3.00 1310 1140 3.5   16 1
General >3.00~3.50 1290 1100 3.5   14 1
  >3.50~4.25 1290 1100 4.0   12 1
  >4.25~4.75 1290 1100 4.0   12 1
  >4.75~5.50 1290 1100 4.0   12 1
  >1.24~2.25 1450 1310 2.5   16 3
  >2.25~2.75 1410 1280 2.5   16 3
  >2.75~3.00 1410 1280 3.0   16 4
High >3.00~3.50 1410 1240 3.0   14 4
  >3.50~4.25 1380 1170 3.0   12 4
  >4.25~4.75 1380 1170 3.0   12 4
  >4.75~5.50 1380 1170 3.0   12 4
  >1.24~2.25 1620 1450 2.0   14 4
  >2.25~2.75 1590 1410 2.0   14 4
  >2.75~3.00 1590 1410 2.5   12 5
Very High >3.00~3.50 1550 1380 2.5   12 5
  >3.50~4.25 1520 1340 2.5   10 5
  >4.25~4.75 1520 1340 2.5   10 5
  >4.75~5.50 1520 1270 2.5   10 5





              ASTM A475
    Number of Wires Approx. Strand Dia. Siemens High Extra High Approx. Weight
    /Dia.     Martin Grade Strength Grade Strength Grade
      Inch mm kN kN kN kg/km
  3/2.64 7/32 5.56 10.409 15.569 21.796 131
3/3.05 1/4 6.35 13.523 21.040 29.981 174
  3/3.05 1/4 6.35 - - - 174
3/3.30 9/32 7.14 15.035 23.398 33.362 204
  3/3.68 5/16 7.94 18.193 28.246 40.479 256
  3/4.19 3/8 9.52 24.732 37.187 52.489 328
7/1.04 1/8 3.18 4.048 5.916 8.140 49
7/1.32 5/32 3.97 6.539 9.519 13.078 76
  7/1.57 3/16 4.76 8.452 12.677 17.748 108
7/1.65 3/16 4.76 - - - 118
  7/1.83 7/32 5.56 11.387 17.126 24.020 145
7/2.03 1/4 6.35 14.012 21.129 29.581 181
  7/2.36 9/32 7.14 18.905 28.469 39.812 243
7/2.64 5/16 7.94 23.798 35.586 49.820 305
  7/2.77 5/16 7.94 - - - 335
7/3.05 3/8 9.52 30.915 48.040 68.503 407
  7/3.68 7/16 11.11 41.591 64.499 92.523 594
7/4.19 1/2 12.70 53.823 83.627 119.657 768
  7/4.78 9/16 14.29 69.837 108.981 155.688 991
7/5.26 5/8 15.88 84.961 131.667 188.605 1211
  19/2.54 1/2 12.70 56.492 84.961 118.768 751
19/2.87 9/16 12.49 71.616 107.202 149.905 948
  19/3.18 5/8 15.88 80.513 124.995 178.819 1184
19/3.81 3/4 19.05 116.543 181.487 259.331 1719
  19/4.50 7/8 22.22 159.691 248.211 354.523 2352
19/5.08 1 25.40 209.066 325.610 464.839 2384
  37/3.63 1 25.40 205.508 319.827 456.832 3061
37/4.09 11/8 28.58 262.000 407.457 581.827 4006
  37/4.55 11/4 31.75 324.720 505.318 721.502 4833



                  BS 183:1972
Number of Approx.     Minimum Breaking Load of Strand       Approx. Weight
Wires/Dia. Strand Dia Grade 350 Grade 480 Grade 700 Grade 850 Grade 1000 Grade 1150 Grade 1300
  mm kN kN kN kN kN kN kN   kg/km
3/1.80 3.9 2.65 3.66 - - - - - 60
3/2.65 5.7 5.80 7.95 - - - - - 130
3/3.25 7.0 8.70 11.95 - - - - - 195
3/4.00 8.6 13.20 18.10 - - - - - 295
4/1.80 4.4 3.55 4.90 - - - - - 80
4/2.65 6.4 7.70 10.60 - - - - - 172
4/3.25 7.9 11.60 15.90 - - - - - 260
4/4.00 9.7 17.60 24.10 35.20 - - - - 390
5/1.50 4.1 3.10 4.24 6.18 - - - - 69
5/1.80 4.9 4.45 6.10 8.90 - - - - 95
5/2.65 7.2 9.65 13.25 19.30 - - - - 220
5/3.25 8.8 14.50 19.90 29.00 - - - - 320
5/4.00 10.8 22.00 30.15 43.95 - - - - 490
7/0.56 1.7 0.60 0.83 1.20 - 1.70 1.98 2.24 14
7/0.71 2.1 0.97 1.33 1.94 - 2.75 3.19 3.60 28
7/0.85 2.6 1.39 1.90 2.80 - 3.95 4.57 5.15 31
7/0.90 2.7 1.55 2.14 3.1 - 4.45 5.12 5.80 35
7/1.00 3.0 1.92 2.64 3.85 - 5.50 6.32 7.15 43
7/1.25 3.8 3.01 4.10 6.00 - 8.55 9.88 11.15 67
7/1.40 4.2 3.75 5.17 7.54 9.16 10.75 12.35 14.00 84
7/RS* 4.3 3.85 5.28 7.70 9.35 11.00 12.65 14.30 86
7/1.60 4.8 4.90 6.75 9.85 11.95 14.10 16.20 18.30 110
7/1.80 5.4 6.23 8.55 12.45 - 17.80 20.50 23.20 140
7/2.00 6.0 7.70 10.55 15.40 - 22.00 25.30 28.60 170
7/2.36 7.1 10.70 14.70 21.40 - 30.60 35.20 39.80 240
7/2.65 8.0 13.50 18.50 27.00 - 38.60 44.40 50.20 300
7/3.00 9.0 17.30 23.75 34.65 - 49.50 56.90 64.30 392
7/3.15 9.5 19.10 26.20 38.20 - 54.55 62.75 70.90 430
7/3.25 9.8 20.30 27.85 40.65 - 58.05 66.80 75.50 460
7/3.65 11.0 25.60 35.15 51.25 - 73.25 84.20 95.20 570
7/4.00 12.0 30.90 42.20 61.60 - 88.00 101.0 114.00 690
7/4.25 12.8 34.75 47.65 69.50 - 99.30 114.0 129.00 780
7/4.75 14.0 43.40 59.45 86.80 - 124.0 142.7 161.3 970
19/1.00 5.0 5.22 7.16 10.45 - 14.92 17.16 19.40 120
19/1.25 63 8.16 11.19 16.32 - 23.32 26.81 30.31 180
19/1.40 7.0 10.24 14.04 20.47 - 29.25 33.64 38.02 230
19/1.60 8.0 13.37 18.35 26.75 - 38.20 43.93 49.66 300
19/2.00 10.0 20.90 28.65 41.78 50.74 59.69 68.64 77.60 470
19/2.50 12.5 32.65 44.80 65.29 79.28 93.27 107.3 121.3 730
19/3.00 15.0 47.00 64.50 94.00 114.1 134.3 154.5 174.6 1050
19/3.55 17.8 65.80 90.27 131.6 159.9 188.0 216.3 244.5 1470
19/4.00 20.0 83.55 114.6 167.1 203.0 238.7 274.6 310.4 1870
19/4.75 23.8 117.85 161.6 235.7 286.0 336.7 387.2 437.7 2630

Galvanized Steel Wire Bare Conductor , Acsr Rail Conductor ASTM A475 Certification
