Product Details:
Payment & Shipping Terms:
|

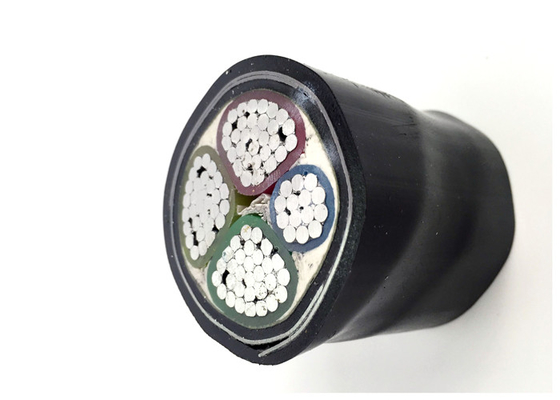

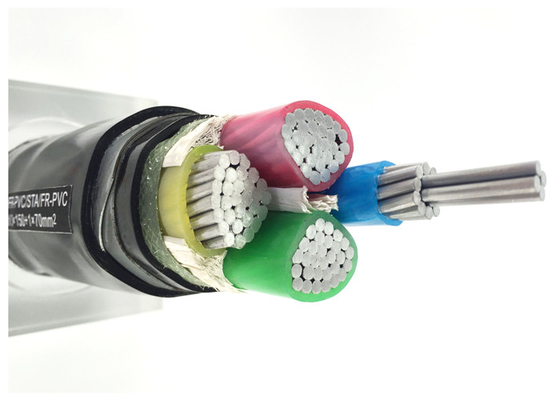

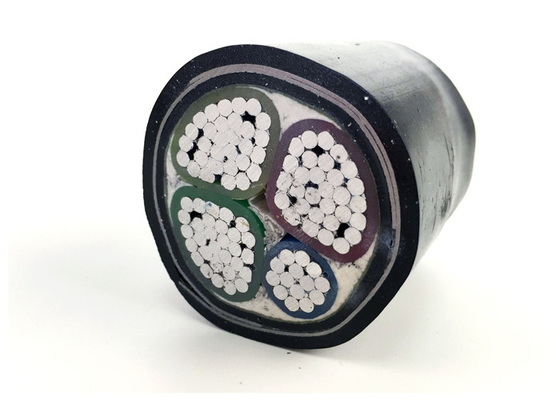

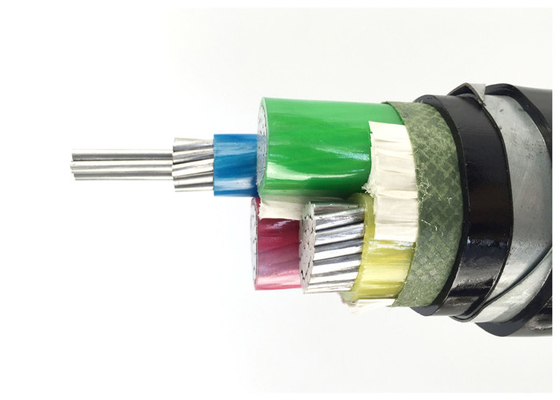

| Model Name: | Aluminum Armoured Cable | Rated Voltage: | 0.6/1kV |
|---|---|---|---|
| Insulation: | XLPE | Conductor: | Aluminum |
| Armour: | Steel Tape | Sizes: | 1~ 630mm2 |
| Cores: | Multicore | Sheath Material: | PVC |
| Standards: | IEC / BS / IS / VDE | Warranty: | 2 Years |
| High Light: | armoured power cable,armored electrical cable |
||
Standards
IEC60502, BS6346, VDE, AS/NZS, UL,etc or as customer's request.
Rated Voltage(kV):
1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35
Number of cores:
1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 and so on.
Construction
| Conductor | Copper Conductor as per IEC 60228 |
| Circular or Shaped conductor | |
| Flexible conductor(class 5) optional | |
| Insulation | PVC(polyvinyl chloride) rated at 75℃,many color optional |
| Metallic Screen optional | Copper tape or copper wires braiding optional |
| Armored | Steel wire |
| Sheath | PVC or FR-PVC type ST2 to IEC 60502, black or red or customization |
Applications
Used for power transmission and distribution line with voltage rated at 35kV and below.
1,This kind of cable is fit for AC 50HZ, rated voltage 6/6kv(not higher than 7.2kv) electric distribution network and industrial devices fixed laying.
2,It is used in underground power grid of city building, and industrial mining enterprises’ power distribution.
3,It is conform to ZL30TM004097.1-2012 [YJY 0.6/35kV]
4,GB/T 12706-2008 rated voltage 1kV(Um=1.2kV)to 35kV(Um=40.5kV)
Technique property:
1,The long time working temperature is at 75℃, suffer short circuit (within 5 seconds), the temperature of core can not higher than 160℃
2,The ambient temperature should not lower than -10℃
3,The laying temperature should not lower than 0℃
4,Single core’s bend radius with no armor should not exceed 20D,single core’s bend radius with armor should not exceed than 15D,three cores’ bend radius with armor should not exceed 12D
Note:
1. Only a part of cables are listed in the table. Cables with other specifications can be inquired.
2. Cables can be supplied with a range of single mode or multi mode.
3. Specially designed Cables structure is available on request.
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
