Product Details:
Payment & Shipping Terms:
|
Rated Voltage: | 132kV | Material: | Aluminium And Steel |
---|---|---|---|
Application: | Overhead Transmission Line | Conductor Shape: | Circular |
Type: | High Voltage | Cross Section: | 10-800 Sq Mm |
Corporation: | Shenghua Group | Brand: | Sh Cable |
Highlight: | transmission conductor,overhead line Conductor |

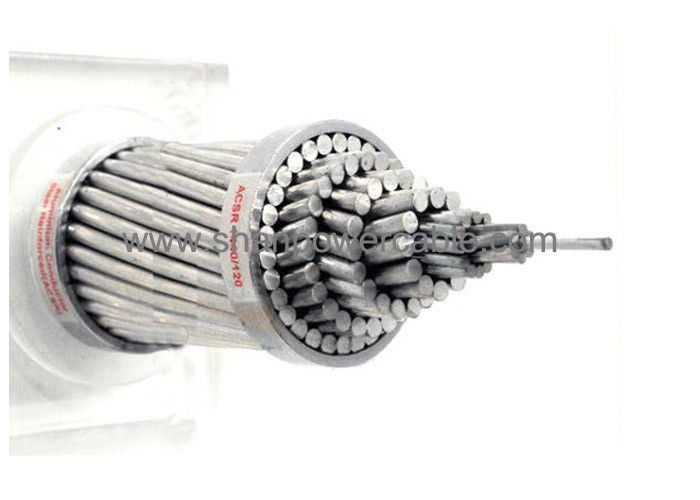

ACAR overhead cable Include following code and specification
ACAR alloy overhead cable widely used in power transmission lines with various voltage levels, for they have the advantages as high mechanical strength, good conductivity, corrosion resistance, unit volume light, easy to set up, high temperature resistance, simple structure, convenient installation and maintenance, large transmission capacity and are also suitable for laying across rivers and valleys where special geographical teatures exist.
AAC conductor Standard: GB1179-83, IEC1089-91.
Applications
Suitable for use in power distribution lines or fixed installations with rated voltage up to 0.6/KV indoor/outdoor, enclosed in conduit, in underground duct where not subject to mechanical damage.
Characteristic
-- High tension strength ,light weight ,small sag
-- Aluminum with hard surface,anti-extrusion,easy connection,high efficiency construction
-- A good creep resistance
-- Resistant to corrosion ,long service life
Type | Description | No. of Wire |
Section Area (mm2) |
AAC | All Aluminum Conductor | 7~127 | 16~1500 |
AAAC | All Aluminum Alloy Conductor | 7~91 | 17~1300 |
ACSR |
Aluminum Conductors Steel Reinforced |
7~103 | 16~1250 |
AACSR |
Aluminum Alloy Conductors Steel Reinforced |
7~103 | 16~1250 |
ACAR/AW |
Aluminum Conductors Aluminum Alloy Reinforced |
7~103 | 16~1250 |
ACSW/S |
Aluminum Conductors Aluminum Clad Steel Wire/Strand |
7~103 | 16~1250 |
GSW | Galvanized Steel Wire | 3/2.64~37/4.55 | 16.41~765.99 |
ACSR Conductor technical data
BS215 PART2 | ||||||||||||
Code | Cross | No.of wires | Wire daimeter | Diameter | Mass per | Rated | Maximum | |||||
name | section | unit length | strength | DC resistance | ||||||||
Al | Steel | Total | Al | Steel | Core | Cond. | at 20°C | |||||
mm2 | mm2 | mm2 | Al | Steel | mm | mm | mm | mm | kg/km | kN | ohm/km | |
MOLE | 10.6 | 1.77 | 12.4 | 6 | 1 | 1.5 | 1.5 | 1.5 | 4.5 | 42.8 | 4.14 | 2.7027 |
SQUIRREL | 21 | 3.5 | 24.5 | 6 | 1 | 2.11 | 2.11 | 2.11 | 6.33 | 84.7 | 7.87 | 1.3659 |
GOPHEL | 26.2 | 4.37 | 30.6 | 6 | 1 | 2.36 | 2.36 | 2.36 | 7.08 | 106 | 9.58 | 1.0919 |
WEASEL | 31.6 | 5.27 | 36.9 | 6 | 1 | 2.59 | 2.59 | 2.59 | 7.77 | 127.6 | 11.38 | 0.9065 |
FOX | 36.7 | 6.11 | 42.8 | 6 | 1 | 2.79 | 2.79 | 2.79 | 8.37 | 148.1 | 13.21 | 0.7812 |
FERRET | 42.4 | 7.07 | 49.5 | 6 | 1 | 3 | 3 | 3 | 9 | 171.2 | 15.27 | 0.6757 |
RABBIT | 52.9 | 8.81 | 61.7 | 6 | 1 | 3.35 | 3.35 | 3.35 | 10.1 | 213.5 | 18.42 | 0.5419 |
MINIK | 63.1 | 10.5 | 73.6 | 6 | 1 | 3.66 | 3.66 | 3.66 | 11 | 254.9 | 21.67 | 0.454 |
SKUNK | 63.2 | 36.9 | 100.1 | 12 | 7 | 2.59 | 2.59 | 7.77 | 13 | 463 | 52.79 | 0.4568 |
BEAVER | 75 | 12.5 | 87.5 | 6 | 1 | 3.99 | 3.99 | 3.99 | 12 | 302.9 | 25.76 | 0.382 |
HORSE | 73.4 | 42.8 | 116.2 | 12 | 7 | 2.79 | 2.79 | 8.37 | 14 | 537.3 | 61.26 | 0.3936 |
RACOON | 78.8 | 13.1 | 92 | 6 | 1 | 4.09 | 4.09 | 4.09 | 12.3 | 318.3 | 27.06 | 0.3635 |
OTTER | 83.9 | 14 | 97.9 | 6 | 1 | 4.22 | 4.22 | 4.22 | 12.7 | 338.8 | 28.81 | 0.3415 |
CAT | 95.4 | 15.9 | 111.3 | 6 | 1 | 4.5 | 4.5 | 4.5 | 13.5 | 385.3 | 32.76 | 0.3003 |
HARE | 105 | 17.5 | 122.5 | 6 | 1 | 4.72 | 4.72 | 4.72 | 14.2 | 423.8 | 36.04 | 0.273 |
DOG | 105 | 13.6 | 118.5 | 6 | 7 | 4.72 | 1.57 | 4.71 | 14.2 | 394 | 32.65 | 0.2733 |
COYOTE | 131.7 | 20.1 | 151.8 | 26 | 7 | 2.54 | 1.91 | 5.73 | 15.9 | 520.7 | 45.86 | 0.2192 |
COUGAR | 131.5 | 7.31 | 138.8 | 18 | 1 | 3.05 | 3.05 | 3.05 | 15.3 | 418.8 | 29.74 | 0.2188 |
TIGER | 131.2 | 30.6 | 161.9 | 30 | 7 | 2.36 | 2.36 | 7.08 | 16.5 | 602.2 | 57.87 | 0.2202 |
WOLF | 158.1 | 36.9 | 194.9 | 30 | 7 | 2.59 | 2.59 | 7.77 | 18.1 | 725.3 | 68.91 | 0.1829 |
DINGO | 158.7 | 8.81 | 167.5 | 18 | 1 | 3.35 | 3.35 | 3.35 | 16.8 | 505.2 | 35.87 | 0.1814 |
LYNX | 183.4 | 42.8 | 226.2 | 30 | 7 | 2.79 | 2.79 | 8.37 | 19.5 | 841.6 | 79.97 | 0.1576 |
CARACAL | 184.2 | 10.2 | 194.5 | 18 | 1 | 3.61 | 3.61 | 3.61 | 18.1 | 586.7 | 40.74 | 0.1562 |
PANTHER | 212.1 | 49.5 | 261.5 | 30 | 7 | 3 | 3 | 9 | 21 | 973.1 | 92.46 | 0.1363 |
JAGUAR | 210.6 | 11.7 | 222.3 | 18 | 1 | 3.86 | 3.86 | 3.86 | 19.3 | 670.8 | 46.57 | 0.1366 |
LION | 238.3 | 55.6 | 293.9 | 30 | 7 | 3.18 | 3.18 | 9.54 | 22.3 | 1093.4 | 100.47 | 0.1213 |
BEAR | 264.4 | 61.7 | 326.1 | 30 | 7 | 3.35 | 3.35 | 10.1 | 23.5 | 1213.4 | 111.5 | 0.1093 |
GOAT | 324.3 | 75.7 | 400 | 30 | 7 | 3.71 | 3.71 | 11.1 | 26 | 1488.2 | 135.13 | 0.0891 |
SHEEP | 375.1 | 87.5 | 462.6 | 30 | 7 | 3.99 | 3.99 | 12 | 27.9 | 1721.3 | 156.3 | 0.0771 |
ANTELOPE | 374.1 | 48.5 | 422.6 | 54 | 7 | 2.97 | 2.97 | 8.91 | 26.7 | 1413.8 | 118.88 | 0.0773 |
BISON | 381.7 | 49.5 | 431.2 | 54 | 7 | 3 | 3 | 9 | 27 | 1442.5 | 121.3 | 0.0758 |
DEER | 429.6 | 100.2 | 529.8 | 30 | 7 | 4.27 | 4.27 | 12.8 | 29.9 | 1971.4 | 179 | 0.0673 |
ZEBRA | 428.9 | 55.6 | 484.5 | 54 | 7 | 3.18 | 3.18 | 9.54 | 28.6 | 1620.8 | 131.92 | 0.0674 |
ELK | 477.1 | 111.3 | 588.5 | 30 | 7 | 4.5 | 4.5 | 13.5 | 31.5 | 2189.5 | 198.8 | 0.0606 |
CAMEL | 476 | 61.7 | 537.7 | 54 | 7 | 3.35 | 3.35 | 10.1 | 30.2 | 1798.8 | 146.4 | 0.0608 |
MOOSE | 528.5 | 68.5 | 597 | 54 | 7 | 3.53 | 3.53 | 10.6 | 31.8 |
