Product Details:
Payment & Shipping Terms:
|
| Payment Terms: | FOB Or CIF | MOQ: | One Roll |
|---|---|---|---|
| Free Sample: | 2 Meter | Lead Time: | 3-7 Days |
| Jacket Material: | PVC | Conductor: | Solid Copper Or Stranded Copper |
| High Light: | electrical wire cable,insulated wire cable |
||

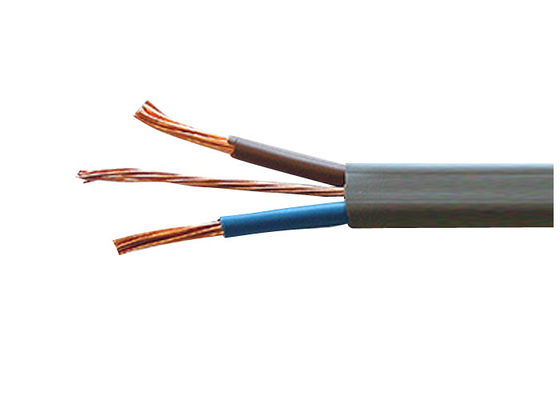

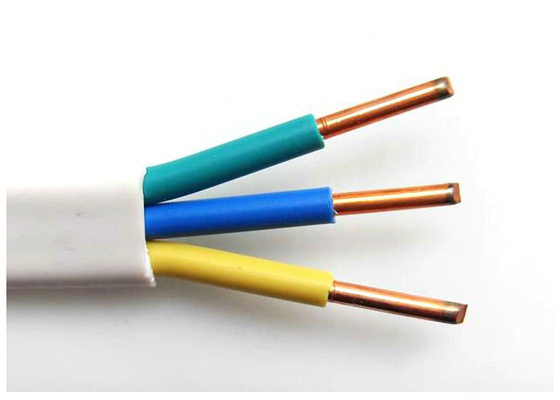

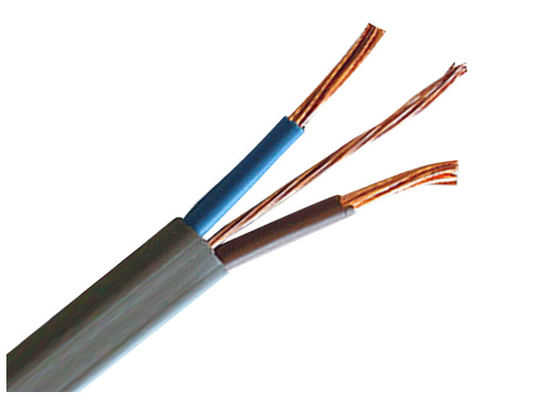

Flat PVC Insulated Electrical Cable Wire 3 Core x2.5SQMM Hard Sheath Line of Household With White Color
Applications
In dry rooms, apparatus switch and distribution boards, for fixed installation in conduits, over and under plaster and on insulated supports over plaster. Direct laying in plaster is not permitted.
Standards
International: IEC 60227
China: GB/T 5023-2008
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage: 450/750 V,300/500V
Max. Conductor Temp. in normal use: 70℃
Min. Bending Radius: 4 x cable O.D
Certificates
CE, RoHS, CCC, KEMA and more others at request
Specifications
BVVB
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight | Max. D.C Resistance of Conductor (20 ℃)Ω /km | |||
| mm2 | mm | mm | kg/km | Ω /km | |||
| Aluminium | Copper | Copper | Aluminium | Aluminium | Copper | ||
| 3x2.5 | 3x1/1.78 | 6.2x13.5 | 6.2x13.5 | 140 | 93.9 | 11.8 | 7.41 |
| 3x4 | 3x7/0.85 | 7.0x15.0 | 7.4x16.5 | 220 | 123 | 7.39 | 7.41 |
| 3x6 | 3x7/1.04 | 7.4x17.0 | 8.0x18.0 | 295 | 153 | 4.91 | 4.61 |
| 3x10 | 3x7/1.35 | 9.6x22.5 | 9.6x22.5 | 485 | 261 | 3.08 | 1.83 |
