Product Details:
Payment & Shipping Terms:
|
| Standard: | BS6004 | Outer Sheath: | PVC Or PE |
|---|---|---|---|
| Free Sample: | 2 Meter | Rated Voltage: | 300/500V |
| Lead Time: | 3-7 Days | Conductor: | Copper |
| Corporation: | Shenghua Group | Brand: | Sh Cable |
| Highlight: | electrical wire cable,insulated wire cable |
||

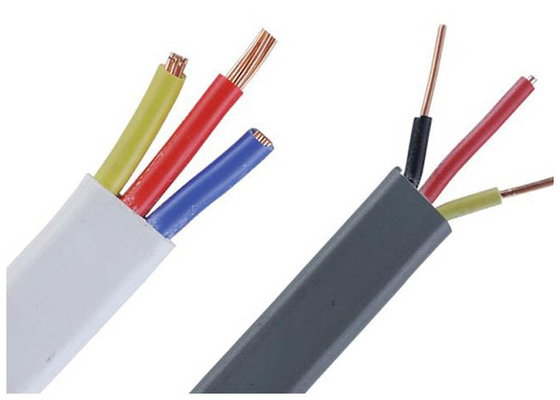

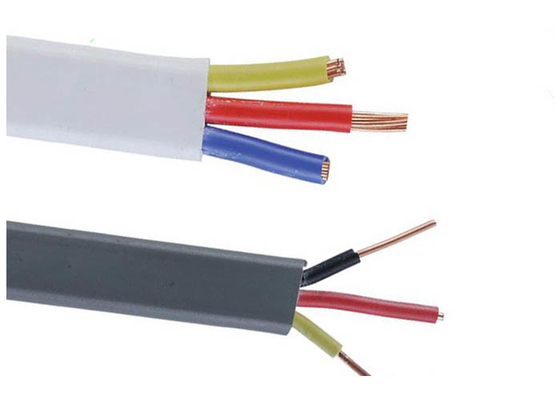

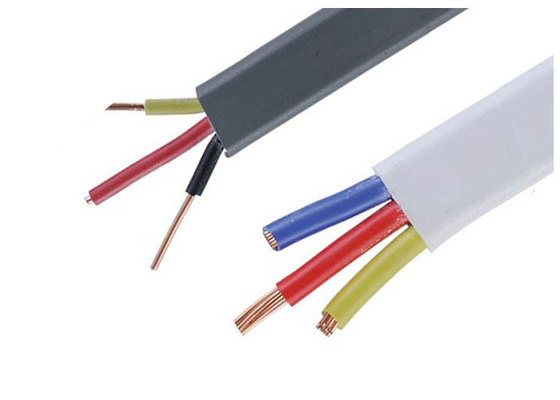

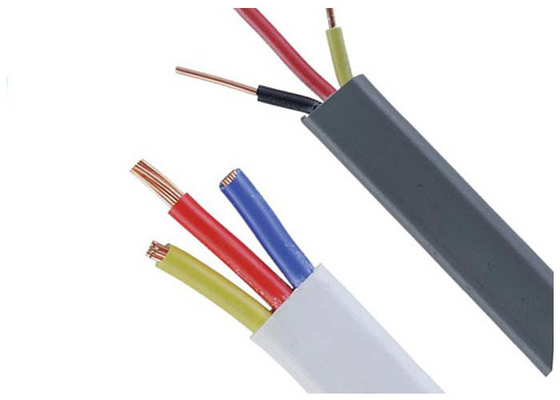

Twin and Earthing Flat Electrical Cable Wire With BS standard 6004 2x2.5+1x1.5mm2
Applications
In dry rooms, apparatus switch and distribution boards, for fixed installation in conduits, over and under plaster and on insulated supports over plaster. Direct laying in plaster is not permitted.
Standards
International: IEC 60227
China: GB/T 5023-2008
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage: 450/750 V,300/500V
Max. Conductor Temp. in normal use: 70℃
Min. Bending Radius: 4 x cable O.D
Certificates
CE, RoHS, CCC, KEMA and more others at request
Specifications
BVVB
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight | Max. D.C Resistance of Conductor (20 ℃)Ω /km | |||
| mm2 | mm | mm | kg/km | Ω /km | |||
| Aluminium | Copper | Copper | Aluminium | Aluminium | Copper | ||
| 3x2.5 | 3x1/1.78 | 6.2x13.5 | 6.2x13.5 | 140 | 93.9 | 11.8 | 7.41 |
| 3x4 | 3x7/0.85 | 7.0x15.0 | 7.4x16.5 | 220 | 123 | 7.39 | 7.41 |
| 3x6 | 3x7/1.04 | 7.4x17.0 | 8.0x18.0 | 295 | 153 | 4.91 | 4.61 |
| 3x10 | 3x7/1.35 | 9.6x22.5 | 9.6x22.5 | 485 | 261 | 3.08 | 1.83 |
