| Standard: | ASTM | Cable Size: | 4 AWG |
|---|---|---|---|
| Jacket Material: | PVC Or Nylon | Short Circiut Temp: | 160 Degree |
| Sample: | Free | Conductor Material: | Copper |
| High Light: | electrical wire cable,insulated wire cable |
||

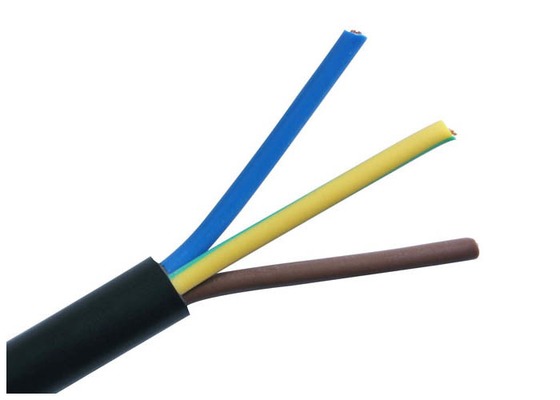

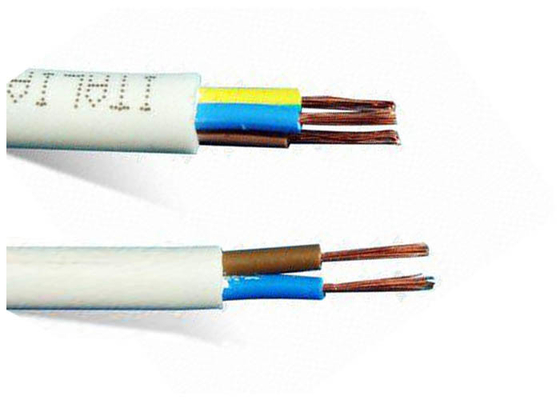

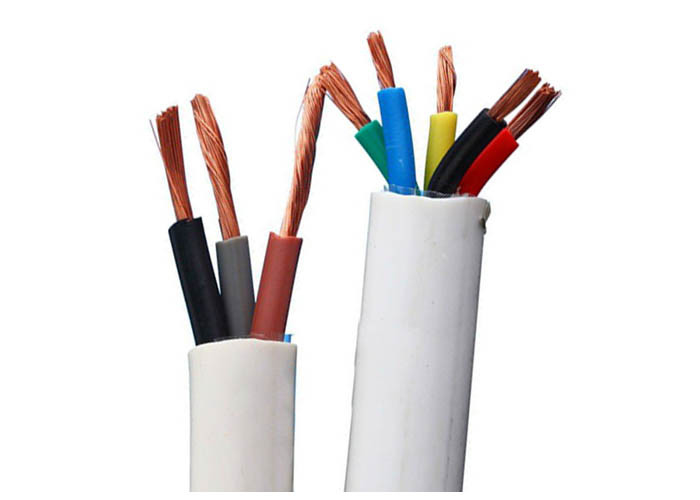

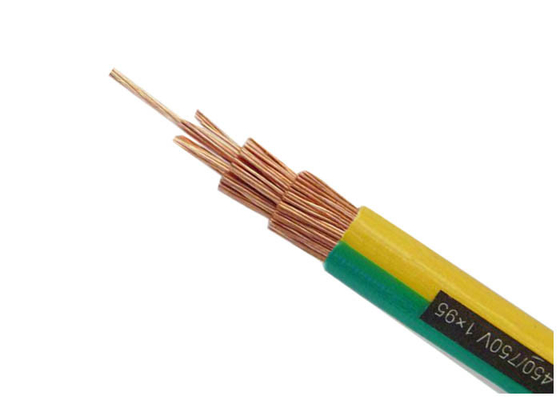

AWG ASTM Electrical Cable Wire 18AWG,16AWG,14AWG,12AWG,1/0AWG,2/0AWG
1. Description :
H05VV-F
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight |
| mm2 | mm | mm2 | kg/km |
| 2X0.5 | 2X16/0.2 | 5.9 | 47.9 |
| 2X0.75 | 2X24/0.2 | 6.3 | 56.2 |
| 3X0.5 | 3X16/0.2 | 6.3 | 58.4 |
| 3X0.75 | 3X24/0.2 | 6.7 | 72.9 |
H05VV-F
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight |
| mm2 | mm | mm2 | kg/km |
| 2X0.75 | 2X24/0.20 | 7.2 | 50 |
| 2X1.0 | 2X32/0.20 | 7.5 | 57.8 |
| 2X1.5 | 2X30/0.25 | 8.6 | 74.7 |
| 2X2.5 | 2X49/0.25 | 10.6 | 120 |
| 3X0.75 | 3X24/0.20 | 7.6 | 63.1 |
| 3X1.0 | 3X32/0.20 | 8.0 | 74.0 |
| 3X1.5 | 3X30/0.25 | 9.4 | 102.0 |
| 3X2.5 | 3X49/0.25 | 11.4 | 162.0 |
| 4X0.75 | 4X24/0.20 | 8.3 | 78.5 |
| 4X1.0 | 4X32/0.20 | 9.0 | 97.2 |
| 4X1.5 | 4X30/0.25 | 10.5 | 133.0 |
| 4X2.5 | 4X49/0.25 | 12.5 | 204.0 |
| 5X0.75 | 5X24/0.20 | 9.3 | 96.9 |
| 5X1.0 | 5X32/0.20 | 9.8 | 115 |
| 5X1.5 | 5X30/0.25 | 11.6 | 158 |
| 5X2.5 | 5X49/0.25 | 13.9 | 249 |
Packing and shipping
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
