Product Details:
Payment & Shipping Terms:
|
Voltage: | 300/500V, 450/750V | Cores: | 2-5 |
---|---|---|---|
Type: | H05VV-F, H07VV-F | Size: | 0.75mm2 To 16mm2 |
Insulation: | PVC | Conductor: | Flexible Annealed Copper |
Sheath: | PVC Or Others | Corporation: | Shenghua Group |
Brand: | Sh Cable | ||
Highlight: | electrical wire cable,insulated wire cable |

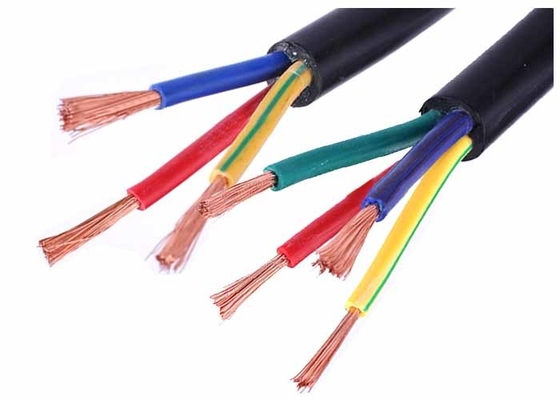

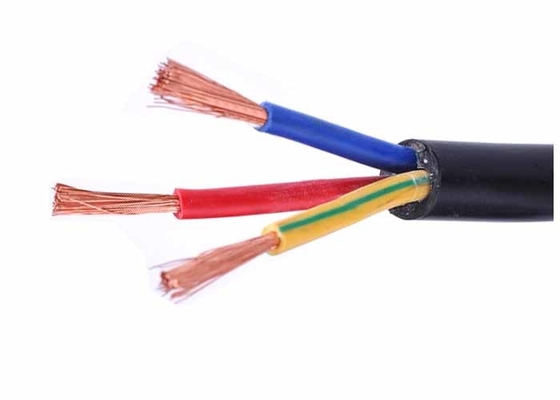

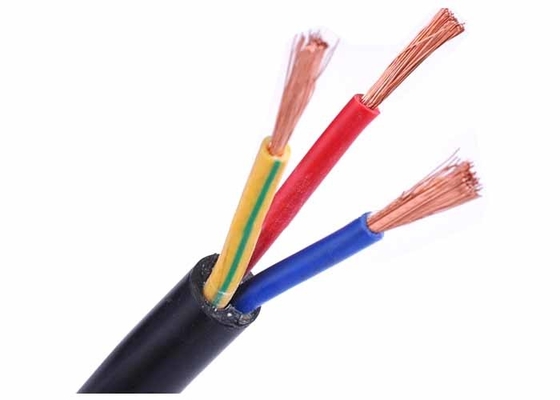

2 to 5 Cores Flexible Copper Conductor PVC Insulated PVC Sheathed Electrical Cable Wire
Construction
Multi-cores PVC insulation and sheathed cables with flexible copper conductor for general purposes
Rated voltage | 450/750V 300/500V |
Maximum Conductor Temperature | Under normal (75℃), emergency (130℃) or short circuit no more than 5 s (160℃) conditions |
Min. Ambient Temp | 0 ℃, after installation and only when cable is in a fixed position |
Min. Bending Radius | 15 x cable O.D for multi core without armor |
Applications
In dry rooms, apparatus switch and distribution boards, for fixed installation in conduits, over and under plaster and on insulated supports over plaster. Direct laying in plaster is not permitted.
Standards
International: IEC 60227
China: GB/T 5023-2008
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage: 450/750 V
Max. Conductor Temp. in normal use: 70℃
Min. Bending Radius: 4 x cable O.D
Certificates
CE, RoHS, CCC, KEMA and more others at request
Technical parameter
Cross section of conductor | Thickness of insulation | Thickness of Sheath | Approx.cable diameter | Max.resistance of conductor at 20 ℃ | Test Voltage(AC) |
mm2 | mm | mm | mm | ohm/km |
KV/5min |
3x1.5 | 0.8 | 1.8 | 10.9 | 12.1 | 3.5 |
3x2.5 | 0.8 | 1.8 | 11.8 | 7.41 | 3.5 |
3x4 | 1.0 | 1.8 | 13.7 | 4.61 | 3.5 |
3x6 | 1.0 | 1.8 | 14.8 | 3.08 | 3.5 |
3x10 | 1.0 | 1.8 | 17.6 | 1.83 | 3.5 |
2x1.5 | 0.8 | 1.8 | 10.5 | 12.1 | 3.5 |
2x2.5 | 0.8 | 1.8 | 11.3 | 7.41 | 3.5 |
2x4 | 1.0 | 1.8 | 13.1 | 4.61 | 3.5 |
2x6 | 1.0 | 1.8 | 14.1 | 3.08 | 3.5 |
2x10 | 1.0 | 1.8 | 16.7 | 1.83 | 3.5 |
2x16 | 1.0 | 1.8 | 18.8 | 1.15 | 3.5 |
All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum.
The packing material is depended on the weight and size of cable.
The good information, manufacture information, and the client's information is firmly printed on each size of drum.
After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight.
The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.
Our Services
♦ We are the one of biggest manufacture of electric wire and power cable in southwest of China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and
own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
FAQ
1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc
2. Payment: We accept T/T, L/C , just choose what you like
3. Delivery time: Generally 7~10 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples below 20 centimeter can be provided freely.
