Sample: | Free | Warranty: | 2 Years |
---|---|---|---|
Conductor: | Fine Bare Copper | Insulation: | PVC T12 |
Test Voltage: | 2000V. | Size: | 0.5-400 Sqmm |
Corporation: | Shenghua Group | Brand: | Sh Cable |
Highlight: | electrical wire cable,insulated wire cable |

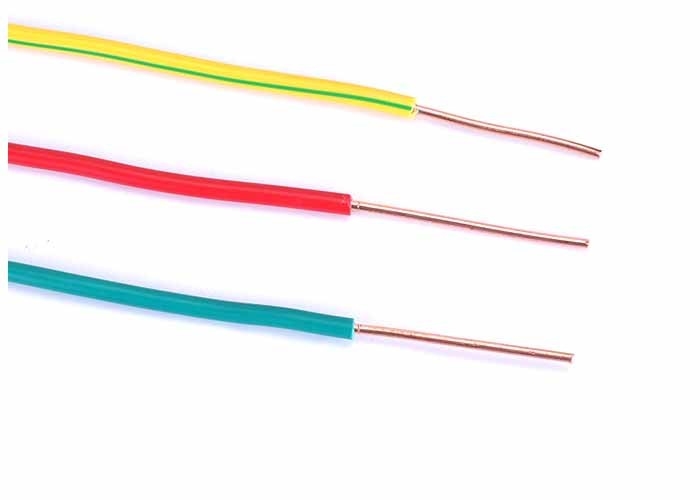

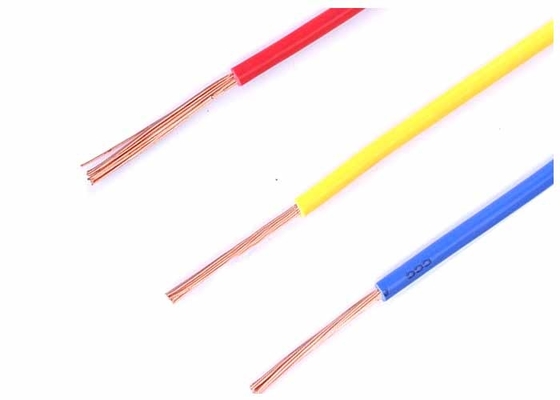

H05V-R Electrical Cable Wire with Fine bare copper Conductor rigid or stranded PVC Insulation
Specifications
H05V-K 300/500V
Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight |
mm2 | mm | mm2 | kg/km |
0.3 | 16/0.15 | 2.3 | 6.4 |
0.4 | 23/0.15 | 2.5 | 8.1 |
0.5 | 16/0.2 | 2.6 | 9.1 |
0.75 | 24/0.2 | 2.8 | 12.2 |
1.0 | 32/0.2 | 3.0 | 15.1 |
H07V-K 450/750V
Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight |
mm2 | mm | mm2 | kg/km |
1.5 | 30/0.25 | 3.4 | 21.4 |
2.5 | 49/0.25 | 4.1 | 24.5 |
H07V-K 450/750V
Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight |
mm2 | mm | mm2 | kg/km |
4 | 56/0.20 | 4.8 | 51.8 |
6 | 84/0.30 | 6.4 | 71.4 |
10 | 84/0.30 | 8.0 | 12.4 |
Construction
- Conductor : Plain annealed circular copper according to IEC 60228 class 1,2 ,5 and 6.
- Insulation : PVC compound rated 70º C or 85º C for continuous operation.
Description
Single core cables with copper conductor , ( solid, stranded or flexible ) and insulated with PVC compound. The cables are manufactured according to IEC 60227&BS 6004 specifications.
Applications
Building wires fixed installation and laid in pipes for general applications
Packing and shipping
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
After-service commitment
Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
