Five Cores Electrical Cable Wire Commercial PVC Insulation Wire ISO Approval

China Five Cores Electrical Cable Wire Commercial PVC Insulation Wire ISO Approval supplier
Five Cores Electrical Cable Wire Commercial PVC Insulation Wire ISO Approval supplier Five Cores Electrical Cable Wire Commercial PVC Insulation Wire ISO Approval supplier Five Cores Electrical Cable Wire Commercial PVC Insulation Wire ISO Approval supplier Five Cores Electrical Cable Wire Commercial PVC Insulation Wire ISO Approval supplier

Large Image :  Five Cores Electrical Cable Wire Commercial PVC Insulation Wire ISO Approval

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHAN CABLE
Certification: ISO,IEC,KEMA,CE
Model Number: RVV, Eletrical Cable Wire

Payment & Shipping Terms:

Minimum Order Quantity: 2000meter
Price: 0.15-5.9USD/Roll
Packaging Details: 100m/roll,500m/drum
Delivery Time: 2 weeks
Payment Terms: L/C, T/T
Supply Ability: 5000000km/Month
Contact Now
Detailed Product Description
Production Name: Eletrical Cable Wire Max Temp At Conductor: 70 Degree
Conductor Material: Copper, Flexible Or Stranded Insulation: PVC
Sheath: PVC Color: As Per Customer Request

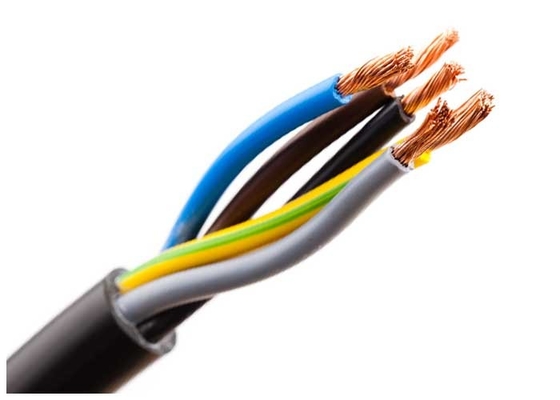

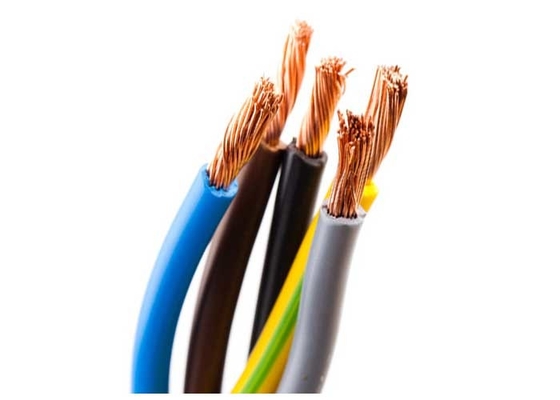

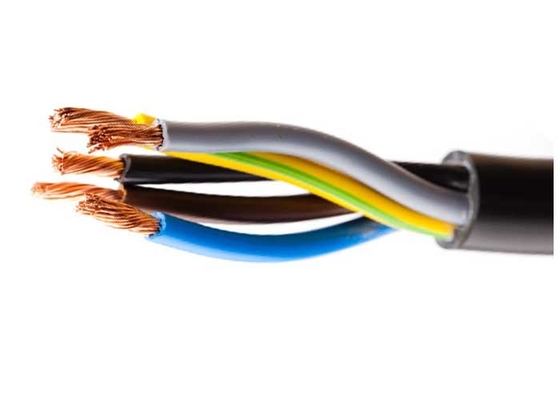

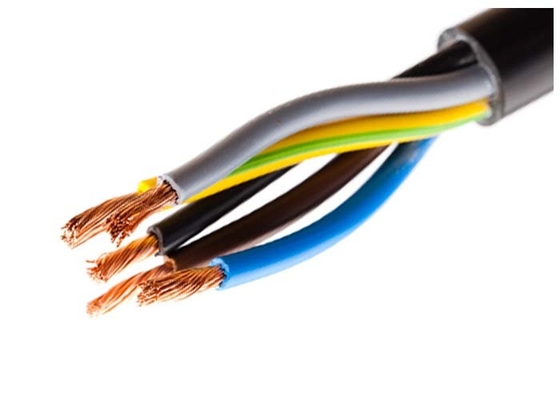

Five Cores With Earth Wire PVC Insulation And PVC Sheath Eletrical Cable Wire



Specification:


No.of cores & cross-section area Thickness of insulation Nominal thickness of sheath Av.overall diameter
(mm)
Max.R of conductor at 20oC Min.Insulation resistance at 70oC Approx.weight
Lower limit Upper limit Copper conductor Tinned copper conductor
5x0.75 0.6 0.9 7.4 9.8 26 26.7 0.011 104
5x1.0 0.6 0.9 8.3 10 19.5 20 0.01 122
5x1.5 0.7 1.1 10 12 13.3 13.7 0.01 177
5x2.5 0.8 1.2 11.5 14 7.98 8.21 0.009 269


Five Cores Electrical Cable Wire Commercial PVC Insulation Wire ISO Approval

Packing and shipping

We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

After-service commitment

Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
Shanghai Shenghua Cable (Group) Co., Ltd.

FAQ
Q: How long does it take to get a quote back?
A: Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days.
Q: What warranties do your products carry?
A: SHAN cable guarantees that all of our products, wires cables,and more are free from defects. We will take back any product that does not meet the agreed quality by both parties. The specific terms are as follows :
1. We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire
2. We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
3. The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.
4. During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
Q: Do you sell other products besides wire and cable?
A: Wire and cable is our forte, however, we also sell connectors, cable assemblies and cable tools to name just a few. Our products serve numerous markets all over the world.
