Aluminium / Copper stranded conductor PVC Insulated power Cable with Fillers

China Aluminium / Copper stranded conductor PVC Insulated power Cable with Fillers supplier
Aluminium / Copper stranded conductor PVC Insulated power Cable with Fillers supplier Aluminium / Copper stranded conductor PVC Insulated power Cable with Fillers supplier Aluminium / Copper stranded conductor PVC Insulated power Cable with Fillers supplier

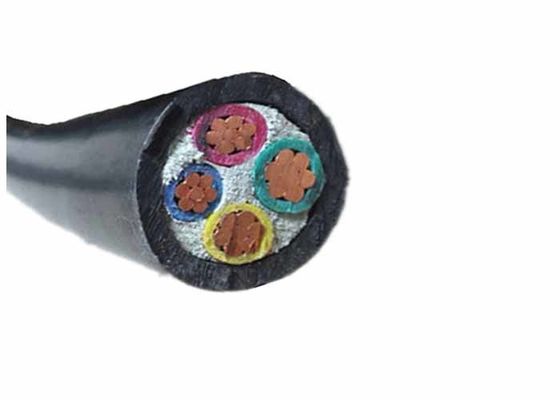

Large Image :  Aluminium / Copper stranded conductor PVC Insulated power Cable with Fillers

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: AL/PVC 0.6/1KV 4C

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Model Name: 0.6/1KV PVC Insulated Cable Copper Stranded Conductor Type: Copper Or Aluminium
Core No: 4 Cores Voltage: 0.6/1KV
Insulation Color: Red, Yellow,blue,green Insulation Materia: PVC
High Light:

PVC Insulated Power Cable

,

PVC Electrical Cable

Detailed Product Description
Model Name: 4C PVC Insulated Cable Conductor Type: AL or CU
Size: 1.5~800 Sqmm Core No.: 4 Cores
Insulation Color: Red, Yellow,blue,green Warranty: 24 Months




KEMA Certificate Four Core Aluminum Conductor PVC Insulated & Sheathed Power Cable U-1000





Construction



Conductor Aluminum Conductor as per IEC 60228
≤6mm2 solid (class 1)
>6mm2 stranded (class 2)
≥50mm2 shaped conductor
Insulation PVC(polyvinyl chloride) rated at 75℃
Sheath PVC(polyvinyl chloride) rated at 75℃
Flame retardant Avaliable as customization



Applications



0.6/1kV Aluminum Conductor Four Core PVC Insulated & Sheathed Power Cable is applicable to the fixed routing in the power distribution network or the industrial equipment with power frequency rated voltage of 1kV and below.

For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces.



Technical data



Rated voltage:0.6/1kV Low Voltage

Maximum Conductor Temperature: under normal (75℃), emergency (130℃) or short circuit no more than 5 s (160℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core without armor

15 x cable O.D for multi core without armor



Certificates



ISO,CE, KEMA ,IEC, CCC, P3C and more others at request



Technical parameter:





Cross section of conductor Thickness of insulation Thickness of Sheath Approx.cable diameter Max.resistance of conductor at 20 ℃ Test Voltage(AC)
mm2 mm mm mm ohm/km KV/5min
4x2.5 0.8 1.8 12.7 12.1 3.5
4x4 1.0 1.8 14.9 7.41 3.5
4x6 1.0 1.8 16.1 4.61 3.5
4x10 1.0 1.8 19.2 3.02 3.5
4x16 1.0 1.8 21.7 1.91 3.5
4x25 1.2 1.8 25.9 1.20 3.5
4x35 1.1 1.8 28.7 0.868 3.5
4x50 1.4 1.9 30.4 0.641 3.5
4x70 1.6 2.1 33.9 0.443 3.5
4x95 1.6 2.2 39.7 0.320 3.5
4x120 1.8 2.4 44.2 0.253 3.5
4x150 2.0 2.5 48.7 0.206 3.5
4x185 2.2 2.7 53.5 0.164 3.5
4x240 2.4 2.9 55.4 0.125 3.5
4x300 2.6 3.0 61.0 0.100 3.5
4x400 2.6 3.2 70.0 0.0778 3.5



Packing and shipping



We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.



After-service commitment



Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:


1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
Shanghai Shenghua Cable (Group) Co., Ltd.
