Bare Stranded Pure Copper Conductor PVC Insulation Electrical Cable Wire 0.25-1000 sqmm

China Bare Stranded Pure Copper Conductor PVC Insulation Electrical Cable Wire 0.25-1000 sqmm supplier
Bare Stranded Pure Copper Conductor PVC Insulation Electrical Cable Wire 0.25-1000 sqmm supplier Bare Stranded Pure Copper Conductor PVC Insulation Electrical Cable Wire 0.25-1000 sqmm supplier Bare Stranded Pure Copper Conductor PVC Insulation Electrical Cable Wire 0.25-1000 sqmm supplier Bare Stranded Pure Copper Conductor PVC Insulation Electrical Cable Wire 0.25-1000 sqmm supplier

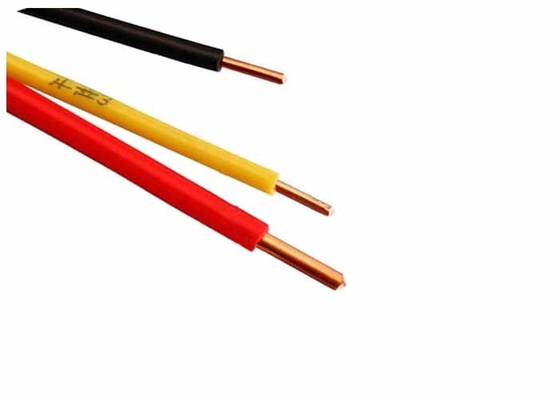

Large Image :  Bare Stranded Pure Copper Conductor PVC Insulation Electrical Cable Wire 0.25-1000 sqmm

Product Details:

Place of Origin: Shanghai China
Brand Name: SHAN CABLE
Certification: CE/KEMA/ISO/UL/TUV
Model Number: H05V-U H05V-R

Payment & Shipping Terms:

Minimum Order Quantity: 2000meter
Price: 0.8-2.78USD/Roll
Packaging Details: 100m/roll
Delivery Time: 2 weeks
Payment Terms: L/C, T/T, D/P, Western Union, MoneyGram
Supply Ability: 200 km per month
Contact Now
Detailed Product Description
Sample: Free Warranty: 2 Years
Conductor: Copper Insulation: PVC ST2
Test Voltage: 2kV Size: 0.25-1000 Sqmm

Bare Stranded Pure Copper Conductor PVC Insulation Electrical Wire Shanghai Factory



Specifications
H05V-K 300/500V


Nominal area of conductor No./Dia. Of Conductor Max.O.D Approx.Weight
mm2 mm mm2 kg/km
0.3 16/0.15 2.3 6.4
0.4 23/0.15 2.5 8.1
0.5 16/0.2 2.6 9.1
0.75 24/0.2 2.8 12.2
1.0 32/0.2 3.0 15.1


H07V-K 450/750V

Nominal area of conductor No./Dia. Of Conductor Max.O.D Approx.Weight
mm2 mm mm2 kg/km
1.5 30/0.25 3.4 21.4
2.5 49/0.25 4.1 24.5


H07V-K 450/750V

Nominal area of conductor No./Dia. Of Conductor Max.O.D Approx.Weight
mm2 mm mm2 kg/km
4 56/0.20 4.8 51.8
6 84/0.30 6.4 71.4
10 84/0.30 8.0 12.4



Code Designation by IEC Code by GB Voltage Products Name Constructions Maximum conductor temperature
60227 IEC 01 BV 450/750 V Single-core non-sheathed cable with rigid conductor for general purposes Cl.1 Solid Copper Conductor or Cl.2 Stranded Copper Conductor, PVC/C Insulation 70 °C.
60227 IEC 02 RV 450/750 V Single-core non-sheathed cable with flexible conductor for general purposes Cl.5 Flexible Stranded Copper Conductor, PVC/C Insulation 70 °C.
60227 IEC 05 BV 300/500 V Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 70 °C Cl.1 Solid Copper Conductor, PVC/C Insulation 70 °C.



Construction
- Conductor : Plain annealed circular copper according to IEC 60228 class 1,2 ,5 and 6.
- Insulation : PVC compound rated 70º C or 85º C for continuous operation.



Description
Single core cables with copper conductor , ( solid, stranded or flexible ) and insulated with PVC compound. The cables are manufactured according to IEC 60227&BS 6004 specifications.

 Applications
 Building wires fixed installation and laid in pipes for general applications


Packing and shipping
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

After-service commitment
Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
Shanghai Shenghua Cable (Group) Co., Ltd.

Bare Stranded Pure Copper Conductor PVC Insulation Electrical Cable Wire 0.25-1000 sqmm
