Multi-core Flexible Stranded Copper Conductor PVC Electrical Cable Wire as per IEC 60227

China Multi-core Flexible Stranded Copper Conductor PVC Electrical Cable Wire as per IEC 60227 supplier
Multi-core Flexible Stranded Copper Conductor PVC Electrical Cable Wire as per IEC 60227 supplier Multi-core Flexible Stranded Copper Conductor PVC Electrical Cable Wire as per IEC 60227 supplier Multi-core Flexible Stranded Copper Conductor PVC Electrical Cable Wire as per IEC 60227 supplier Multi-core Flexible Stranded Copper Conductor PVC Electrical Cable Wire as per IEC 60227 supplier

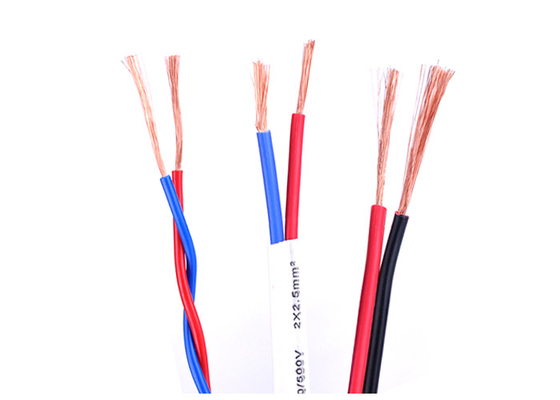

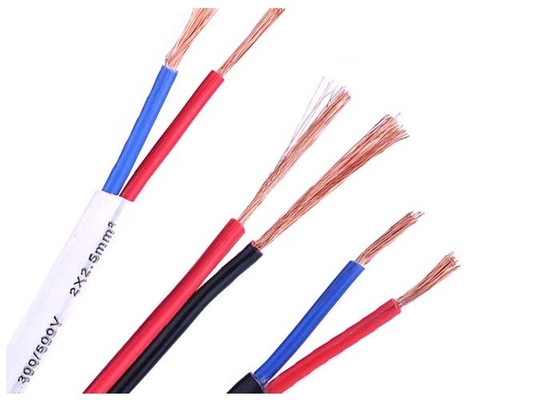

Large Image :  Multi-core Flexible Stranded Copper Conductor PVC Electrical Cable Wire as per IEC 60227

Product Details:

Place of Origin: Shanghai
Brand Name: SHAN CABLE
Certification: ISO,IEC,KEMA,CE
Model Number: RVV 3C

Payment & Shipping Terms:

Minimum Order Quantity: 4000meter
Price: 0.09-9.85USD/Roll
Packaging Details: 100m/roll,500m/drum
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 6000000km/Month
Contact Now
Detailed Product Description
Production Name: PVC Insulation Wire Max Temp At Conductor: 70 Degree
Conductor Material: Copper, Flexible Or Stranded Insulation: PVC
Sheath: PVC Color: As Per Customer Request
Packing Style: Wooden Drum Or In Roll

Multi-core Flexible Stranded Copper Conductor PVC insulation Housing wire as per IEC 60227



Descriptions

Ordinary PVC Sheathed cord

Code designation: 60227 IEC53 (International), RVV 300/500V(China)



Constructions

Conductor: Flexible copper conductor, comform to IEC 60228 class 5

Insulation: PVC/D

Sheath: PVC type ST5



Applications

Used in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.



Standards

International: IEC 60227

China: GB/T 5023-2008

Other standards such as BS,DIN and ICEA upon request



Technical data

Rated voltage:300/500 V

Max. Conductor Temp. in normal use: 70℃

Min. Bending Radius: 6 x cable O.D



Certificates

CE, RoHS, CCC, KEMA and more others at request


4.Specification:

No.of cores & cross-section area Thickness of insulation Nominal thickness of sheath Av.overall diameter
(mm)
Max.R of conductor at 20oC Min.Insulation resistance at 70oC Approx.weight
Lower limit Upper limit Copper conductor Tinned copper conductor
mm2 mm mm mm mm ohm/km ohm/km M ohm˙km kg/km
3x0.75 0.6 0.8 6.4 8 26 26.7 0.011 70.1
3x1.0 0.6 0.8 6.8 8.4 19.5 20 0.01 82.2
3x1.5 0.7 0.9 8 9.8 13.3 13.7 0.01 116
3x2.5 0.8 1.0 9.6 12 7.98 8.21 0.009 171


Multi-core Flexible Stranded Copper Conductor PVC Electrical Cable Wire as per IEC 60227

After-service commitment

Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
Shanghai Shenghua Cable (Group) Co., Ltd.

FAQ
Q: How long does it take to get a quote back?
A: Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days.
Q: What warranties do your products carry?
A: SHAN cable guarantees that all of our products, wires cables,and more are free from defects. We will take back any product that does not meet the agreed quality by both parties. The specific terms are as follows :
1. We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire
2. We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
3. The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.
4. During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
Q: Do you sell other products besides wire and cable?
A: Wire and cable is our forte, however, we also sell connectors, cable assemblies and cable tools to name just a few. Our products serve numerous markets all over the world.
