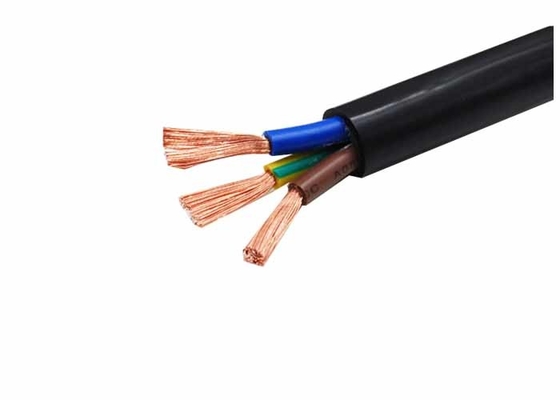

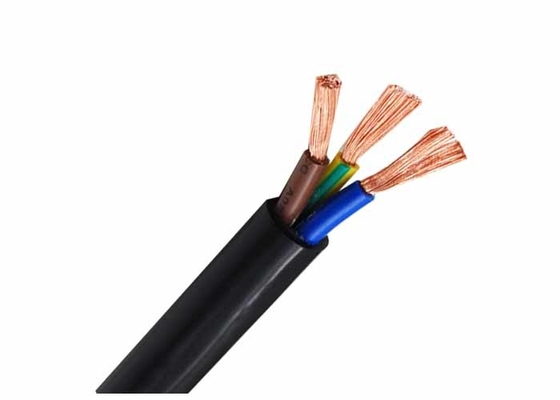

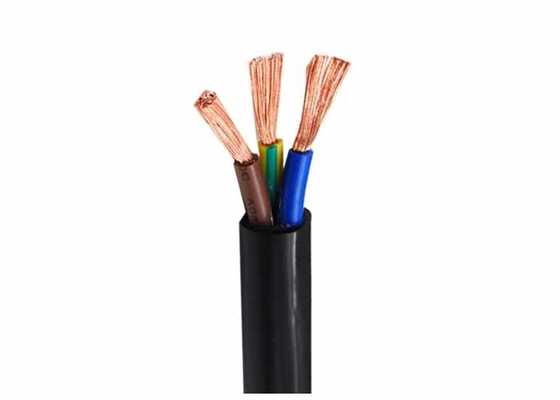

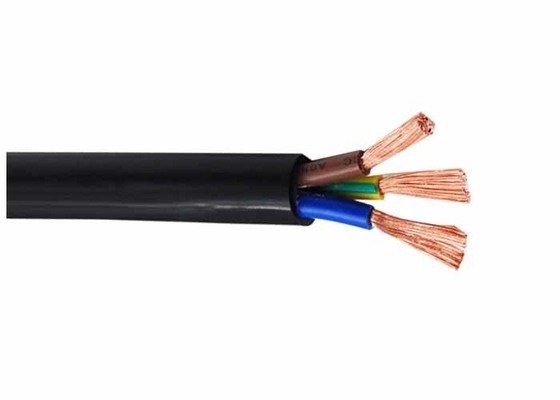

Flexible Copper Conductor 3 Core PVC ST2 Insulation PVC Outer Sheath Insulated Wire Cable

China Flexible Copper Conductor 3 Core PVC ST2 Insulation PVC Outer Sheath Insulated Wire Cable supplier
Flexible Copper Conductor 3 Core PVC ST2 Insulation PVC Outer Sheath Insulated Wire Cable supplier Flexible Copper Conductor 3 Core PVC ST2 Insulation PVC Outer Sheath Insulated Wire Cable supplier Flexible Copper Conductor 3 Core PVC ST2 Insulation PVC Outer Sheath Insulated Wire Cable supplier Flexible Copper Conductor 3 Core PVC ST2 Insulation PVC Outer Sheath Insulated Wire Cable supplier

Large Image :  Flexible Copper Conductor 3 Core PVC ST2 Insulation PVC Outer Sheath Insulated Wire Cable

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: RVV 3*2.5

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Rated Voltage: 300/500V, 450/750V Cores: 2 - 5
Cable Type: RVV, H05VV-F Cable Size Range: 0.75mm2 To 10mm2
Insulation Material: PVC Conductor: Flexible Copper
Sheath: PVC Brand: SHAN CABLE
Packing Style: Wooden Drum Or In Roll As Per Request
High Light:

electrical wire cable

,

insulated wire cable

Flexible Copper Conductor 3 Core PVC ST2 Insulation PVC outer sheath Shanghai Cable Factory



Descriptions
Multi-cores PVC insulation and sheathed cables with flexible copper conductor for general purposes

Constructions
 Conductor: Flexible circular copper conductor, comform to IEC 60228 class 5
 Insulation: PVC

 Sheath: PVC

Descriptions

Ordinary PVC Sheathed cord

Code designation: 60227 IEC53 (International), RVV 300/500V(China)



Constructions

Conductor: Flexible copper conductor, comform to IEC 60228 class 5

Insulation: PVC/D

Sheath: PVC type ST5



Applications

Used in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.



Standards

International: IEC 60227

China: GB/T 5023-2008

Other standards such as BS,DIN and ICEA upon request



Technical data

Rated voltage:300/500 V

Max. Conductor Temp. in normal use: 70℃

Min. Bending Radius: 6 x cable O.D



Certificates

CE, RoHS, CCC, KEMA and more others at request

Technical parameter:

Nom. Cross-section of conductor Insulation Thickness Sheath Thickness Approx. O.D. Insulation Min. Resistance at 70°C Max. D.C Resistance of Conductor (20 ℃)Ω /km
mm2 mm mm Lower Limit (mm) Upper Limit (mm) MΩ.km Ω /km
2 × 0.75 0.6 0.8 5.7 7.2 0.011 26.0
2 × 1 0.6 0.8 5.9 7.5 0.010 19.5
2 ×1.5 0.7 0.8 6.8 8.6 0.010 13.3
2 × 2.5 0.8 1.0 8.4 10.6 0.009 7.98
3 × 0.75 0.6 0.8 6.0 7.6 0.011 26.0
3 × 1 0.6 0.8 6.3 8.0 0.010 19.5
3 ×1.5 0.7 0.9 7.4 9.4 0.010 13.3
3 × 2.5 0.8 1.1 9.2 11.4 0.009 7.98
4 × 0.75 0.6 0.8 6.6 8.3 0.011 26.0
4 × 1 0.6 0.9 7.1 9.0 0.010 19.5
4 ×1.5 0.7 1.0 8.4 10.5 0.010 13.3
4 × 2.5 0.8 1.1 10.1 12.5 0.009 7.98
5 × 0.75 0.6 0.8 7.4 9.3 0.011 26.0
5 × 1 0.6 0.9 7.8 9.8 0.010 19.5
5 ×1.5 0.7 1.1 9.3 11.6 0.010 13.3
5 × 2.5 0.8 1.2 11.2 13.9 0.009 7.98



Applications
In dry rooms, apparatus switch and distribution boards, for fixed installation in conduits, over and under plaster and on insulated supports over plaster. Direct laying in plaster is not permitted.
Standards
International: IEC 60227
China: GB/T 5023-2008
Other standards such as BS,DIN and ICEA upon request

Technical data
Rated voltage: 450/750 V
Max. Conductor Temp. in normal use: 70℃
Min. Bending Radius: 4 x cable O.D
Certificates
CE, RoHS, CCC, KEMA and more others at request



Packing & Shipping

All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum.

The packing material is depended on the weight and size of cable.

The good information, manufacture information, and the client's information is firmly printed on each size of drum.

After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight.

The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.



Our Services

♦ We are the one of biggest manufacture of electric wire and power cable in southwest of China and has more than 20 years producing and marketing experience.

♦ We accept OEM. The cable size and material are customized.Ur own logo and

own design are welcome. We will produce according to your requirement and description;

♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.



FAQ
1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc
2. Payment: We accept T/T, L/C , just choose what you like
3. Delivery time: Generally 7~10 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples below 20 centimeter can be provided freely.
