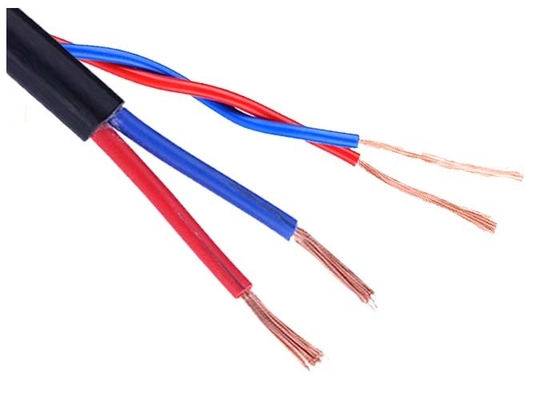

| Rated Voltage: | 300/500V, 450/750V | Cores: | 2 - 5 |
|---|---|---|---|
| Cable Type: | RVV, H05VV-F | Cable Size Range: | 0.75mm2 To 10mm2 |
| Insulation Material: | PVC | Conductor: | Flexible Copper |
| Sheath: | PVC | ||
| High Light: | electrical wire cable,insulated wire cable |
||
Top Shanghai Factory Stranded Copper Conductor Wire Cable 0.5mm2 - 10mm2 Cable Size
Descriptions

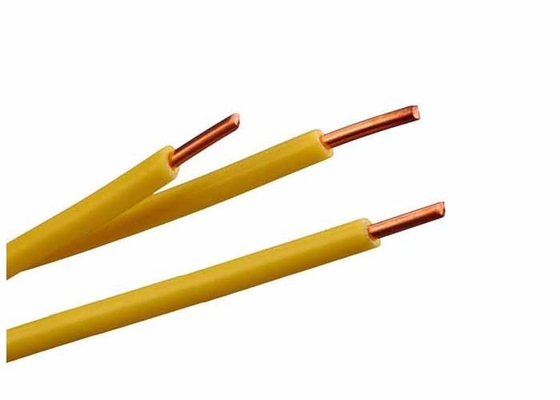

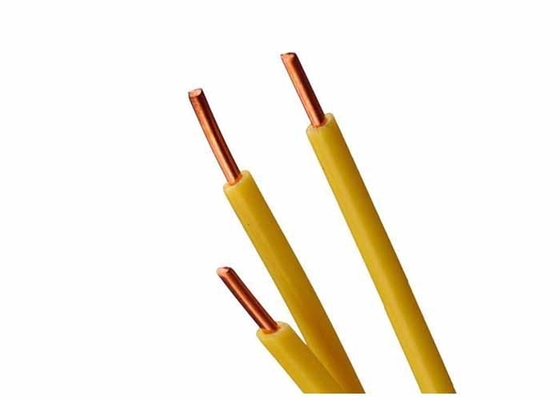

Single-core non-sheathed cables with solid conductor for internal wiring for a conductor temperature of 90℃.
Code designation: 60227 IEC 07 (International), BV-90 300/500V(China)
Constructions

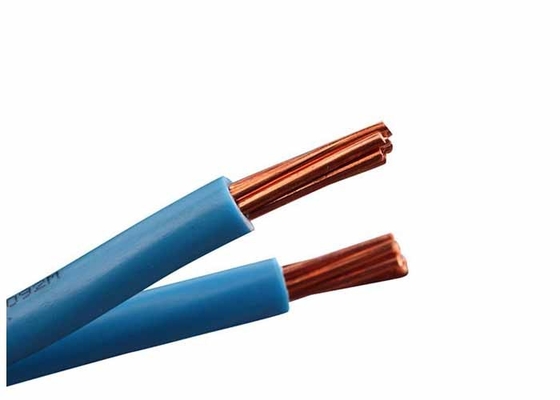

① Conductor: Plain circular solid/Stranded copper conductor, comform to IEC 60228 class 1
② Insulation: PVC/E
Applications
Used as fixed wiring cable of rated voltage 300/500V.
Standards
International: IEC 60227
China: GB/T 5023-2008
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage:300/500 V
Max. Conductor Temp. in normal use: 90℃
Min. Bending Radius: 4 x cable O.D
Certificates
CE, RoHS, CCC, KEMA and more others at request
Specifications
| Nom. Cross-section Area | Insulation Thickness | Mean. O.D. | Insulation Min. Resistance at 90°C | Conductor Max. Resistance at 20°C | Approx. Weight | |
| mm2 | mm | Lower Limit (mm) | Upper Limit (mm) | MΩ.km | Ω/km | kg/km |
| 0.5 | 0.6 | 1.9 | 2.3 | 0.015 | 36.0 | 9.9 |
| 0.75 | 0.6 | 2.1 | 2.5 | 0.013 | 24.5 | 13.0 |
| 1 | 0.6 | 2.2 | 2.7 | 0.012 | 18.1 | 15.5 |
| 1.5 | 0.7 | 2.6 | 3.2 | 0.011 | 12.1 | 21.0 |
| 2.5 | 0.8 | 3.2 | 3.9 | 0.009 | 7.41 | 32.5 |
