Transmission Aluminum Conductor Steel Reinforced Overhead Line Conductor

China Transmission Aluminum Conductor Steel Reinforced Overhead Line Conductor supplier
Transmission Aluminum Conductor Steel Reinforced Overhead Line Conductor supplier Transmission Aluminum Conductor Steel Reinforced Overhead Line Conductor supplier Transmission Aluminum Conductor Steel Reinforced Overhead Line Conductor supplier Transmission Aluminum Conductor Steel Reinforced Overhead Line Conductor supplier

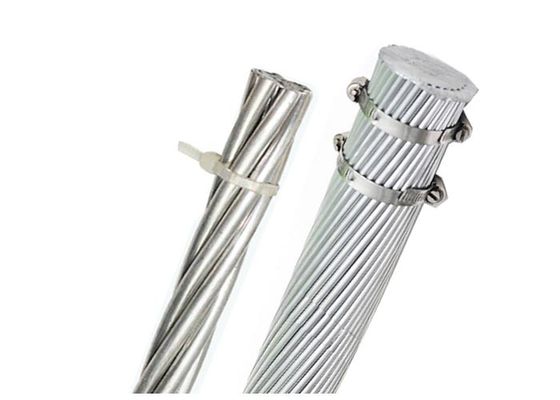

Large Image :  Transmission Aluminum Conductor Steel Reinforced Overhead Line Conductor

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO9001,ISO14001, PICC
Model Number: ACSR

Payment & Shipping Terms:

Minimum Order Quantity: 3000Meter
Price: USD0.4-58.4/M
Packaging Details: Wooden-Steel Drum
Delivery Time: 5000 Kilometers per Month
Payment Terms: L/C, T/T
Detailed Product Description
Model Name: Bare Conductor ACSR Size: 10-1000mm2
Conductor Type: Stranded Materil: Aluminum
Free Sample: Available Warranty: 2 Years
High Light:

overhead line Conductor

,

bare overhead conductors

Transmission Aluminum Conductor Steel Reinforced Overhead Line Conductor



1. Specification:

(1) all aluminium conductor (AAC)

(2) all aluminimum alloy conductor(AAAC)

(3) aluminum conductor steel reinforced (ACSR)

(4) anti-corrosion type ACSR

(5) aluminimum conductor aluminimum clad steel reinforced(ACSR/AW)

(6)rear earth aluminimum conductor steel reinforced(ACSR/RE)

(7)aluminimum conductor aluminimum alloy reinforced(ACAR)



2. Elative manufacturing standards:

IEC83, IEC1089, 31, B232, BS215, DIN48204

1). Standard: IEC61089, BS215 part2, ASTM B232, DIN48204, BS EN50182

2). Specification: ACSR is composed by bare concentric-lay-stranded galvanized steel wire(s) with aluminum wires surrounded by one or more layers of helically. Greased ACSR can also be supplied.

3). Application: ACSR is widely used in overhead electric power transmission and distribution lines with various voltage levels



All Aluminum Conductor(AAC)& Aluminum Conductor Steel Reinforced(ACSR))for ASTM (AAC, ACCR, AAAC, ACSR) Generally Confirming to IS 398 (Part-I, II, IV), IEC-228

(AAAC) Conductor as per ASTM-B-399-1992

(AAAC) Conductor as per BS-3242-1970

(AAAC) Conductor IS: 398-IV-1994

(ACSR) as per ASTM-B-233-1992

(AAC) as per BS-215-1-1970

(AAC) as per IS-398-1: 1976

(AAC) as per ASTM-B-231-1990

(ACSR) as per IS: 398-II: 1976 & IS: 398-V: 1992

(ACSR) BS-215-II-1970

(AACSR) as per IEC-1089-1191

AAC(All aluminum conductor) are suited for overhead power line.



We can supply this conductor according to different recognized standards, such as IEC61089, BS215, BS EN 50182: 2001, STM B231, CSA C49, DIN480201, JIS C3109, customer special specification also can be satisfied.

ACSR or ACSR cable or ACSR conductor used for Overhead electrical distribution and transmission lines for distributing power





ACSR ASTM Technical Datasheet
Code Size Section Stranding Diameter Total
Weight
Rated
Strength
Maximum Resisitance
@20°C
Al Total Al Steel Cable Steel
AWG or
MCM
mm² mm mm kg/km kg Ω/km
Wren 8 8.37 9.81 6×1.33 1×1.33 3.99 1.33 33.8 340 3.4017
Turkey 6 13.3 15.48 6×1.68 1×1.68 5.03 1.68 53.7 540 2.1135
Swan 4 21.15 24.71 6×2.12 1×2.12 6.35 2.12 85.4 846 1.3278
Swanate 4 21.15 26.52 7×1.96 1×2.61 6.53 2.61 99.7 1067 1.3133
Sparrow 2 33.62 39.23 6×2.67 1×2.67 8.03 2.67 136 1289 0.8343
Sparate 2 33.62 42.13 7×2.47 1×3.30 8.26 3.3 159 1650 0.8251
Robin 1 42.41 49.48 6×3.00 1×3.00 9.02 3 171 1612 0.6621
Raven 1/0 53.51 62.39 6×3.37 1×3.37 10.11 3.37 216 1987 0.5243
Quail 2/0 67.44 78.65 6×3.78 1×3.78 11.35 3.78 273 2401 0.416
Pigeon 3/0 85.02 99.23 6×4.25 1×4.25 12.75 4.25 344 3006 0.3304
Penguin 4/0 107 125 6×4.77 1×4.77 14.3 4.77 433 3787 0.2618
Owl 266.8 135 153 6×5.36 7×1.79 16.09 5.37 507 4330 0.2109
Waxwing 266.8 135 143 18×3.09 1×3.09 15.47 3.09 431 3117 0.2119
Partridge 266.8 135 157 26×2.57 7×2.00 16.31 5.98 547 5113 0.21
Oatrich 300 152 177 26×2.73 7×2.12 17.27 6.36 614 5755 0.1867
Piper 300 152 188 30×2.54 7×2.54 17.78 7.62 697 7000 0.1902
Merlin 336.4 171 180 18×3.47 1×3.47 17.37 3.47 544 3931 0.168
Linnet 336.4 171 198 26×2.89 7×2.25 18.31 6.74 689 6730 0.1663
Oriole 336.4 171 210 30×2.69 7×2.69 18.82 8.07 784 7865 0.1654
Chickadee 397.5 201 213 18×3.77 1×3.77 18.87 3.77 642 4499 0.1421
Ibis 397.5 201 234 26×3.14 7×2.44 19.89 7.32 814 7488 0.1411
Lark 397.5 201 248 30×2.92 7×2.92 20.47 8.77 927 9202 0.1401
Pelican 477 242 255 18×4.14 1×4.14 20.68 4.14 771 5347 0.1184
Flicker 477 242 273 24×3.58 7×2.39 21.49 7.16 914 7790 0.1178
Hawk 477 242 281 26×3.44 7×2.67 21.79 8.03 977 8880 0.1171
Hen 477 242 298 30×3.20 7×3.20 22.43 9.61 1112 10783 0.1165
Heron 500 253 312 30×3.28 7×3.28 22.96 9.84 1162 11090 0.1141
Osprey 556.5 282 298 18×4.47 1×4.47 22.33 4.47 899 6233 0.1014
Parakeet 556.5 282 319 24×3.87 7×2.58 23.22 7.73 1067 8999 0.101
Dove 556.5 282 328 26×3.72 7×2.89 23.55 8.66 1140 10019 0.1007
Eagle 556.5 282 348 30×3.46 7×3.46 24.21 10.39 1298 12606 0.1001
Peacock 605 307 346 24×4.03 7×2.69 24.21 8.03 1161 9771 0.0928
Squab 605 307 357 26×3.87 7×3.01 24.54 9.04 1240 11018 0.0925
Teal 605 307 376 30×3.61 19×2.16 25.25 10.82 1398 13567 0.0919
Duck 605 307 346 54×2.69 7×2.69 24.21 8.07 1158 10210 0.0944
Kingbird 636 322 340 18×4.78 1×4.78 23.88 4.78 1028 7128 0.0895
Rook 636 322 364 24×4.14 7×2.76 24.82 8.28 1219 10298 0.0883
Grosbeak 636 322 375 26×3.97 7×3.09 25.15 9.27 1302 11427 0.0897
Egret 636 322 396 30×3.70 19×2.22 25.88 11.1 1471 14302 0.0876
Goose 636 322 364 54×2.76 7×2.76 24.84 8.28 1218 10730 0.0898
Flamingo 666.6 338 382 24×4.23 7×2.82 15.4 8.46 1278 10751 0.0843
Gull 666.6 338 382 54×2.82 7×2.82 25.38 8.46 1276 11140 0.0587
Starling 715.5 363 422 26×4.21 7×3.28 26.7 9.83 1465 12865 0.0781
Redwing 715.5 363 445 30×3.92 19×2.35 27.46 11.76 1653 15649 0.0778
Cuckoo 795 403 455 24×4.62 7×3.08 27.74 9.25 1524 12649 0.0719



Packing and shipping

We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

After-service commitment

Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
Shanghai Shenghua Cable (Group) Co., Ltd.

FAQ
Q: How long does it take to get a quote back?
A: Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days.


Q: What warranties do your products carry?
A: SHAN cable guarantees that all of our products, wires cables,and more are free from defects. We will take back any product that does not meet the agreed quality by both parties. The specific terms are as follows :
1. We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire
2. We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
3. The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.
4. During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.


Q: Do you sell other products besides wire and cable?
A: Wire and cable is our forte, however, we also sell connectors, cable assemblies and cable tools to name just a few. Our products serve numerous markets all over the world.
