Product Details:
Payment & Shipping Terms:
|
| Model Type: | 4 Cores Steel Tape Armored Cable | Rated Voltage: | 0.6/1kV |
|---|---|---|---|
| Insulation: | XLPE | Conductor: | Copper |
| Armour: | Steel Wire | Sizes: | 1~ 630mm2 |
| Cores: | 4 Core | Sheath Material: | PVC, PE, LSOH |
| Color: | Black | ||
| High Light: | armoured power cable,armored electrical cable |
||

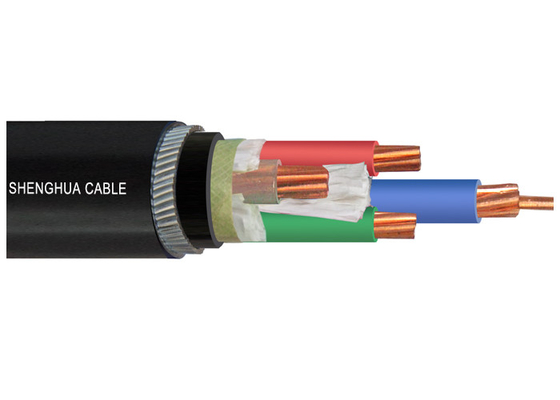

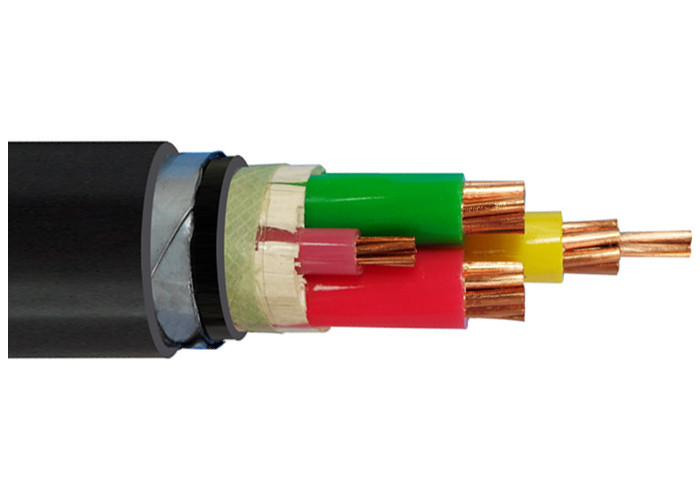

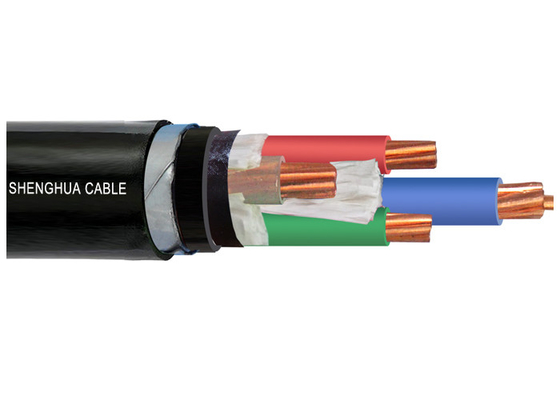

Black Copper Conducor Armoured Electrical Cable With Steel Tape Armoued
Applications: Used for power transmission and distribution line with voltage rated at 35kV and below.Compared with PVC Insulated Power Cable, xlpe power cable boasts not only characteristics of excellent electricity, mechanism,
heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple
structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working.
Standards: International: IEC 60502-2, IEC 60228
China: GB/T 12706.2-2008
Other standards such as BS,DIN and ICEA upon request
Construction:
|
Conductor |
Compact Stranded Copper Conductor, Class 2 as per IEC 60228 |
|
Circular solid Copper Conductor, Class 1 as per IEC 60228 |
|
|
Insulation |
XLPE(Cross-linked polyethylene) |
|
Filler |
PP Filler |
|
Wrapping Tape |
Non woven |
|
Inner Covering |
Extruded PVC |
|
Armour |
Steel Wire |
|
Overall Sheath |
Termite Resistant PVC |
Technical data:
Rated voltage: 0.6/1kV
Maximum Conductor Temperature: under normal (90°C), emergency (130°C) or short circuit no more than 5 s (250°C) conditions.
Min. Ambient Temp. 0°C, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single-core non-armoured cables
15 x cable O.D for single-core armoured cables
15 x cable O.D for multi-core non-armoured cables
12 x cable O.D for multi-core armoured cables
Specifications:
|
Nom. Cross-section of conductor |
Strands No./Dia. Of Conductor |
Insulation Thickness |
Inner Covering Thickness |
Dia. Of Armor Wire |
Sheath Thickness |
Approx. O.D. |
Approx. Weight |
Max. D.C Resistance of Conductor (20 ℃) |
Testing Voltage A.C |
Current Rating |
|
|
mm2 |
pc/mm |
mm |
|
|
mm |
(mm) |
kg/km |
Ω /km |
kV/5min |
In air (A) |
In soil(A) |
|
4 × 4 |
7/0.85 |
0.7 |
1.0 |
0.9 |
1.8 |
18.0 |
699 |
4.61 |
3.5 |
34 |
45 |
|
4 × 6 |
7/1.04 |
0.7 |
1.0 |
1.25 |
1.8 |
19.0 |
820 |
3.08 |
3.5 |
43 |
57 |
|
4 × 10 |
7/1.38 |
0.7 |
1.0 |
1.25 |
1.8 |
22.0 |
1233 |
1.83 |
3.5 |
60 |
77 |
|
4 × 16 |
7/1.78 |
0.7 |
1.0 |
1.6 |
1.8 |
24.5 |
1550 |
1.15 |
3.5 |
83 |
105 |
|
4 × 25 |
7/2.14 |
0.9 |
1.0 |
1.6 |
1.8 |
29.2 |
2036 |
0.727 |
3.5 |
105 |
125 |
|
4 × 35 |
7/2.52 |
0.9 |
1.0 |
2.0 |
1.9 |
32.5 |
2501 |
0.524 |
3.5 |
125 |
155 |
|
4 × 50 |
10/2.52 |
1.0 |
1.0 |
2.0 |
2.0 |
33.0 |
3064 |
0.387 |
3.5 |
160 |
185 |
|
4 × 70 |
14/2.52 |
1.1 |
1.0 |
2.0 |
2.1 |
37.0 |
3974 |
0.268 |
3.5 |
200 |
225 |
|
4 × 95 |
19/2.52 |
1.1 |
1.2 |
2.0 |
2.3 |
43.0 |
5032 |
0.193 |
3.5 |
245 |
270 |
|
4 × 120 |
24/2.52 |
1.2 |
1.2 |
2.5 |
2.5 |
45.0 |
6327 |
0.153 |
3.5 |
285 |
310 |
|
4 × 150 |
30/2.52 |
1.4 |
1.4 |
2.5 |
2.7 |
51.0 |
7765 |
0.124 |
3.5 |
325 |
345 |
|
4 × 185 |
37/2.52 |
1.6 |
1.4 |
2.5 |
2.8 |
56.0 |
9205 |
0.0991 |
3.5 |
375 |
390 |
|
4 × 240 |
48/2.52 |
1.7 |
1.4 |
2.5 |
3.0 |
62.0 |
11444 |
0.0754 |
3.5 |
440 |
450 |
|
4 × 300 |
61/2.52 |
1.8 |
1.6 |
2.5 |
3.2 |
67.0 |
13830 |
0.0601 |
3.5 |
505 |
515 |
|
4 × 400 |
61/2.97 |
2.0 |
1.6 |
3.15 |
3.5 |
74.0 |
19673 |
0.0470 |
3.5 |
570 |
575 |
