ASTM 20 AWG 2 Core THHN Electrical Cable Insulated Wire Cable With UL Certificate

China ASTM 20 AWG 2 Core THHN Electrical Cable Insulated Wire Cable With UL Certificate supplier
ASTM 20 AWG 2 Core THHN Electrical Cable Insulated Wire Cable With UL Certificate supplier ASTM 20 AWG 2 Core THHN Electrical Cable Insulated Wire Cable With UL Certificate supplier ASTM 20 AWG 2 Core THHN Electrical Cable Insulated Wire Cable With UL Certificate supplier ASTM 20 AWG 2 Core THHN Electrical Cable Insulated Wire Cable With UL Certificate supplier

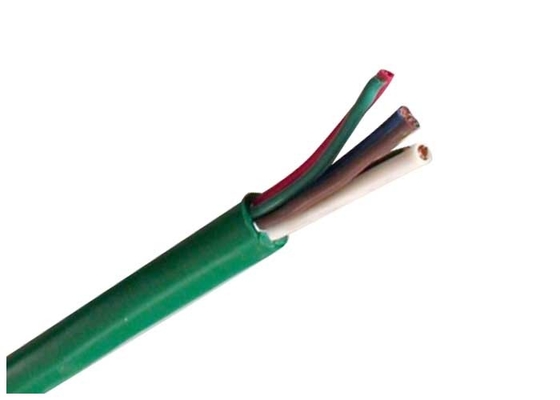

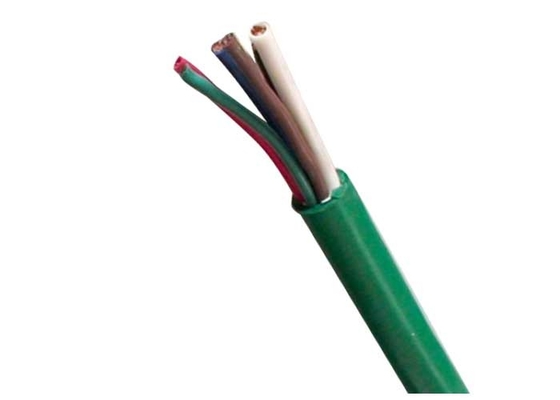

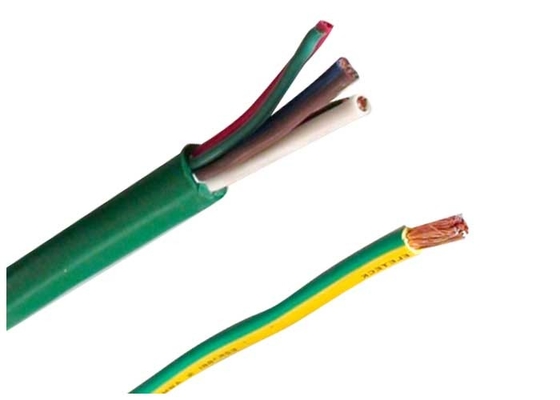

Large Image :  ASTM 20 AWG 2 Core THHN Electrical Cable Insulated Wire Cable With UL Certificate

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: THHN

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Outer Jacket: Nylon Standard: ASTM
Insulation: PVC Conductor: Flexible Copper
Sample: Free Rated Voltage: 300/500V
High Light:

electrical wire cable

,

insulated wire cable

ASTM 20 AWG 2Core THHN Electrical Cable With UL certificate China manufacturer



Construction

Multi-cores PVC insulation and sheathed cables with flexible copper conductor for general purposes

Rated voltage 450/750V 300/500V
Maximum Conductor Temperature Under normal (75℃), emergency (130℃) or short circuit no more than 5 s (160℃) conditions
Min. Ambient Temp 0 ℃, after installation and only when cable is in a fixed position
Min. Bending Radius 15 x cable O.D for multi core without armor



Applications

In dry rooms, apparatus switch and distribution boards, for fixed installation in conduits, over and under plaster and on insulated supports over plaster. Direct laying in plaster is not permitted.



Standards
International: IEC 60227
China: GB/T 5023-2008
Other standards such as BS,DIN and ICEA upon request

Technical data
Rated voltage: 450/750 V
Max. Conductor Temp. in normal use: 70℃
Min. Bending Radius: 4 x cable O.D
Certificates
CE, RoHS, CCC, KEMA and more others at request



Technical parameter



Cross section of conductor Thickness of insulation Thickness of Sheath Approx.cable diameter Max.resistance of conductor at 20 ℃ Test Voltage(AC)
mm2 mm mm mm ohm/km KV/5min
3x1.5 0.8 1.8 10.9 12.1 3.5
3x2.5 0.8 1.8 11.8 7.41 3.5
3x4 1.0 1.8 13.7 4.61 3.5
3x6 1.0 1.8 14.8 3.08 3.5
3x10 1.0 1.8 17.6 1.83 3.5
2x1.5 0.8 1.8 10.5 12.1 3.5
2x2.5 0.8 1.8 11.3 7.41 3.5
2x4 1.0 1.8 13.1 4.61 3.5
2x6 1.0 1.8 14.1 3.08 3.5
2x10 1.0 1.8 16.7 1.83 3.5
2x16 1.0 1.8 18.8 1.15 3.5



Packing & Shipping

All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum.

The packing material is depended on the weight and size of cable.

The good information, manufacture information, and the client's information is firmly printed on each size of drum.

After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight.

The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.



Our Services

♦ We are the one of biggest manufacture of electric wire and power cable in southwest of China and has more than 20 years producing and marketing experience.

♦ We accept OEM. The cable size and material are customized.Ur own logo and

own design are welcome. We will produce according to your requirement and description;

♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.



FAQ
1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc
2. Payment: We accept T/T, L/C , just choose what you like
3. Delivery time: Generally 7~10 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples below 20 centimeter can be provided freely.
