Medium Voltage Steel Tape Armoured Electrical Cable 3 Phase CU / XLPE / STA / PVC Power Cable

China Medium Voltage Steel Tape Armoured Electrical Cable 3 Phase CU / XLPE / STA / PVC Power Cable supplier
Medium Voltage Steel Tape Armoured Electrical Cable 3 Phase CU / XLPE / STA / PVC Power Cable supplier Medium Voltage Steel Tape Armoured Electrical Cable 3 Phase CU / XLPE / STA / PVC Power Cable supplier Medium Voltage Steel Tape Armoured Electrical Cable 3 Phase CU / XLPE / STA / PVC Power Cable supplier Medium Voltage Steel Tape Armoured Electrical Cable 3 Phase CU / XLPE / STA / PVC Power Cable supplier

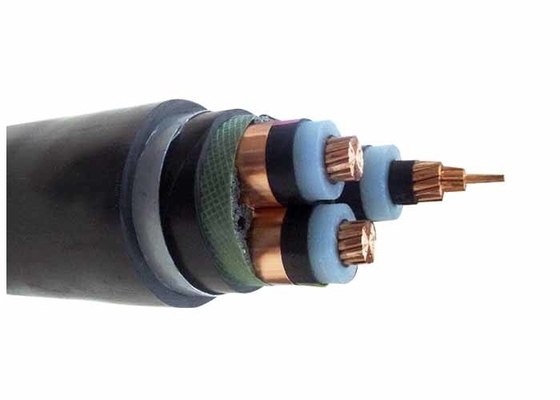

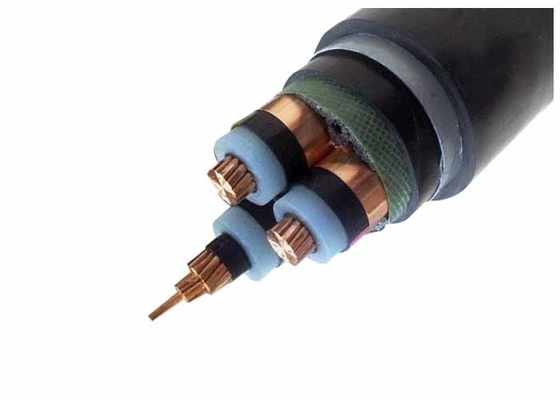

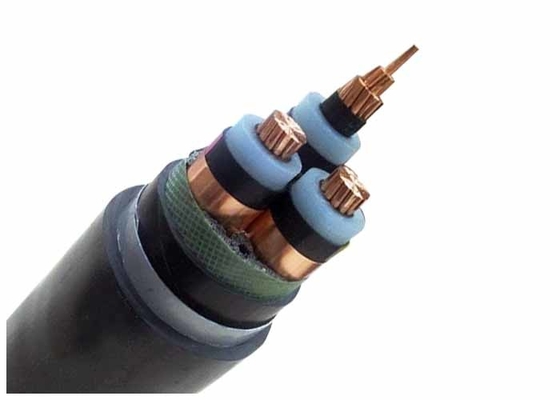

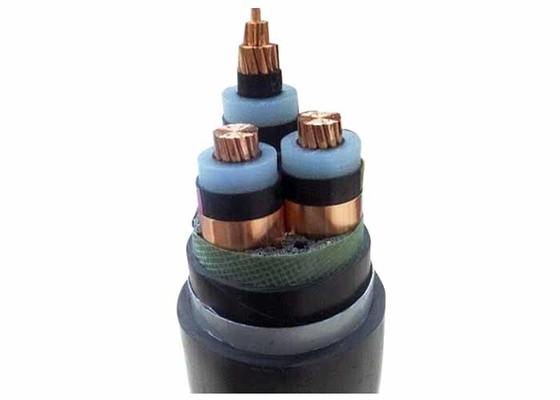

Large Image :  Medium Voltage Steel Tape Armoured Electrical Cable 3 Phase CU / XLPE / STA / PVC Power Cable

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: MV YJV22

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: US$0.51~125 per Meter
Packaging Details: Wooden Drums
Delivery Time: 10 work days
Payment Terms: T/T, L/C
Supply Ability: 10,000 KMs / Month
Contact Now
Detailed Product Description
Product Type: Medium Voltage Cable Conductor: Copper, CU
Insulation: XLPE Armor: Galvanized Steel Tape, STA
Cores: 3 Core Sheath Material: PVC / PE
Standards: IEC / BS / IS / VDE Warranty: 2 Years
Outer Sheath Color: Black Or As Per Requested Packing: Steel Wooden Drum

Medium Voltage Steel Tape Armour 3 Phase CU / XLPE / STA / PVC Power Cable


This product is applicable to the power transmission and distribution line with AC rated voltage(U0/U) of 3.6/6kV-26/36kV system.It is routed in air (cable bridge frame,indoor wall support,and tray) and soil(direct buried, cable trench,pipe ect.) respectively according to difference of the protection layer structure.


Standards



International: IEC 60502-2, IEC 60228

China: GB/T 12706.2-2008

Other standards such as BS,DIN and ICEA upon request



Applications



Used for power transmission and distribution line with voltage rated at 35kV and below.

Compared with PVC Insulated Power Cable, xlpe power cable boasts not only characteristics of excellent electricity, mechanism, heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working.



Construction



Conductor Compact Stranded Copper Conductor, Class 2 as per IEC 60228
Circular solid Copper Conductor, Class 1 as per IEC 60228
Flexible Stranded Copper Conductor, Class 5 as per IEC 60228
Conductor Screen Semi-conductor
Insulation XLPE(Cross-linked polyethylene)
Insulation Screen Semi-conductor
Metalic Shield Copper Tape Screen or Copper wire & copper tape Shield
Filler Fillers strip
Wrapping Tape Non woven wrapping tape or lsoh wrapping tape
Inner Covering Extruded PVC, or LSOH
Armour Steel Tape Armour
Overall Sheath PVC, FR-PVC, PE or LSOH





Specifications



MV(6 to 35kv) Power Cable
Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV No.of Core Conductor cross-section area(mm2)
xlpe insulation 1 core 3 core 10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm
Cu core Al Core
YJV, N2XSY;PVC sheathed power cable YJLV, NA2XSY; PVC sheathed power cable
YJV22;steel tape armoured,PVC sheathed power cable YJLV22;steel tape armoured,PVC sheathed power cable
YJV32,YJV42;steel wire armoured ,PVC sheathed power cable YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable
pvc insulation
Cu Core Al Core
VV(VY);PVC(PE)sheathed power cable VLV(VLY);PVC(PE)sheathed power cable
VV22(VV23);steel tape armoured,PVC(PE)sheathed power cable VLV22(VLV23);steel tape armoured,PVC(PE)sheathed power cable
VV32(VV33),VV42(VV43);steel wire armoured ,PVC(PE)sheathed power cable VLV32(VLV33),VLV42(VLV43);steel wire armoured ,PVC(PE)sheathed power cable




Technical data



Test voltage 6 / 10 kV [kV] 21 / 5 min.
  12 / 20 kV [kV] 42 / 5 min.
  18 / 30 kV [kV] 63 / 5 min.
Temperature range in motion   -20°C till +90°C
  fixed   -20°C till +90°C
Operating temperature short circuit °C 250
Short circuit time max. [sec] 5
Bending radius min. x diameter 15
Flammability standard   EN 50265-2-1



Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Inner Sheath Thickness Steel Tape Thickness Sheath Thickness Approx. O.D. Approx. Weight Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm mm mm mm (mm) kg/km Ω /km kV/5min In air (A) In soil(A)
3 × 35 7/2.52 5.5 1.8 2 × 0.5 2.9 58.0 4840 0.524 42 140 155
3 × 50 10/2.52 5.5 1.8 2 × 0.5 3.0 61.0 5463 0.387 42 165 180
3 × 70 14/2.52 5.5 2.0 2 × 0.5 3.1 65.0 6446 0.268 42 210 220
3 × 95 19/2.52 5.5 2.0 2 × 0.5 3.2 68.0 7457 0.193 42 255 265
3 × 120 24/2.52 5.5 2.0 2 × 0.5 3.3 71.0 8459 0.153 42 290 300
3 × 150 30/2.52 5.5 2.2 2 × 0.5 3.4 75.0 10555 0.124 42 330 340
3 × 185 37/2.52 5.5 2.2 2 × 0.5 3.5 78.0 11925 0.0991 42 375 380
3 × 240 48/2.52 5.5 2.2 2 × 0.8 3.7 83.0 13959 0.0754 42 435 435
3 × 300 61/2.52 5.5 2.2 2 × 0.8 3.9 88.0 16314 0.0601 42 495 485
3 × 400 61/2.97 5.5 2.3 2 × 0.8 4.1 95.0 19032 0.047 42 565 520



Certificates



ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request





Ordering Advice



Rated Voltage

Application Standard:IEC/BS/UL/GB

Number of Cores

Conductor Size $ Construction

Type of Insulation

Armored or unarmored. If armour, the armour type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement
