Electric Armoured Power Cable KEMA Certified Multi Core Copper Core Top

China Electric Armoured Power Cable KEMA Certified Multi Core Copper Core Top supplier
Electric Armoured Power Cable KEMA Certified Multi Core Copper Core Top supplier Electric Armoured Power Cable KEMA Certified Multi Core Copper Core Top supplier Electric Armoured Power Cable KEMA Certified Multi Core Copper Core Top supplier Electric Armoured Power Cable KEMA Certified Multi Core Copper Core Top supplier

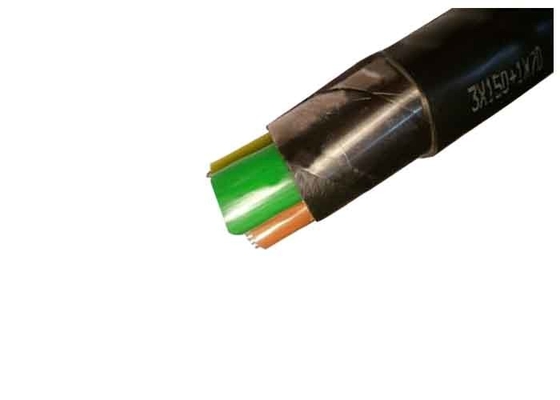

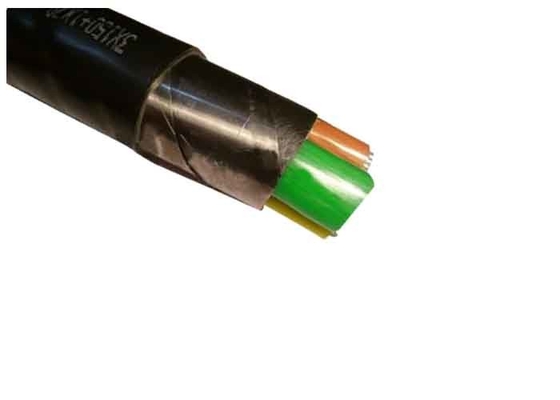

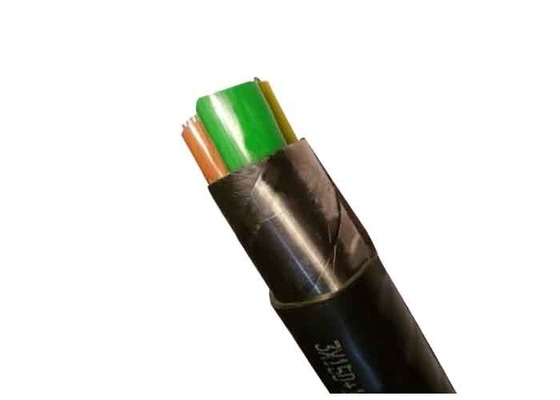

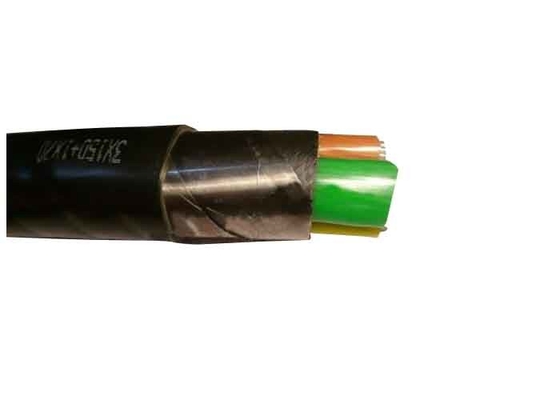

Large Image :  Electric Armoured Power Cable KEMA Certified Multi Core Copper Core Top

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: CU/XLPE/PVC/STA/PVC

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Product Name: Armoured Power Cable Insulation: XLPE
Conductor: CU/AL Armour: STA
Sizes: 1.0 To 630 Sqmm Cores: 1 - 5
Sheath: PVC Free Sample: Yes
Outer Sheath Color: Black Or As Per Request
High Light:

armored electrical cable

,

armoured electric cable

Armoured Electric Cable KEMA Certified Multi Core Copper Core Top China Manufacturer

Cable details


1.U0/U: 0.6/1kV



2.Standard: IEC60502, BS7870, GB/T12706



3.Max. working temperature: 90 °C , can be 110 °C as requirement



4.Conductor: Class 1/2 annealed bare copper/aluminum solid or strands



5.Insulation: XLPE/PVC



6.Armored: STA



7.Sheath: PVC



8. Cross section area: 1.5~630mm2



9. Cores: 1~5 cores,3C+1E,4C+1E,3C+2E



10. Packing:Wooden drum or as requirement



11.Certification : ISO9001/ISO14001/OHSAS18001/CCC/CE/CB



12.Remark: Flame retardant,fire resistance,low smoking and Halogen free,or other property can be avaliable



Specifications



Type Desciption Rated Voltage NO. of Cores Nomibal section(mm2) Applications
YJV YJLV Cu or Al conductor,XLPE insulated.PVC sheathed electric cable 0.6/1KV 1,2,3,4 1.5 to 400 For laying indoors and outdoors.The LV XLPE insulated power cable is used in transmission and distribution system at rated voltagae U(Um) ≤10KV.The HV XLPE insulated power cable refers to the power cable transmission between 10KV-35KV, it is often applied to the main road of power transmission. Able to bear certain traction during installation, but not external mechanical forces.
3+1 3×4+1×2.5 to 3×400+1×185
6/6kV 1,3 25 to 500
8.7/10kV 8.7/15kV 12/20kV 1 25 to 500
3 25 to 300
21/35kv 1 50 to 500
YJV22 YJLV22 Cu or Al conductor,XLPE insulated steel tape armoured PVC sheathed electric cable 0.6/1KV 3 1.5 to 400 Suitable for burying in ground, Able to bear external mechanical forces but large pulling forces.
4 4 to 240
6/6kV 8.7/10kV 8.7/15kV 12/20kV 3 25 to 300
21/35kv 3 50 to 240





Applications



STA Armored Electric Cable YJV22 4+1 Core Cable applies to electrical power transmission and distribution lines with AC rated voltage Uo/ U up to and including 0.6/1kV.

For outdoor and indoor installation in damp and wet locations,laid directly in the ground where excessive mechanical stresses are present in sloping and moving terrains and in vertical or inclined laying,as well as in locations susceptible to sliding.



YJ: XLPE insulation

V: PVC insulation

V: PVC sheath

22: Galvanized steel tape armoring

32: Galvanized steel wire armoring



pvc insulation
Cu Core Al Core
VV(VY);PVC(PE)sheathed power cable VLV(VLY);PVC(PE)sheathed power cable
VV22(VV23);steel tape armoured,PVC(PE)sheathed power cable VLV22(VLV23);steel tape armoured,PVC(PE)sheathed power cable
VV32(VV33),VV42(VV43);steel wire armoured ,PVC(PE)sheathed power cable VLV32(VLV33),VLV42(VLV43);steel wire armoured ,PVC(PE)sheathed power cable


Technical data



Rated voltage: 0.6 / 1 kV

Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 12 x cable O.D



Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Inner Covering Thickness Steel Tape Thickness Sheath Thickness Approx. O.D.

Approx.

Weight

Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm mm mm mm (mm) kg/km Ω /km kV/5min In air (A) In soil(A)
2 × 4 1/2.25 0.7 1.2 2 × 0.2 1.8 15.0 433 4.61 3.5 34 45
2 × 6 1/2.76 0.7 1.2 2 × 0.2 1.8 16.0 500 3.08 3.5 43 57
2 × 10 7/1.38 0.7 1.4 2 × 0.2 1.8 19.0 673 1.83 3.5 60 77
2 × 16 7/1.78 0.7 1.4 2 × 0.2 1.8 21.0 857 1.15 3.5 83 105
2 × 25 7/2.14 0.9 1.6 2 × 0.2 1.8 24.0 1173 0.727 3.5 105 125
2 × 35 7/2.52 0.9 1.6 2 × 0.2 1.8 26.0 1449 0.524 3.5 125 155
2 × 50 10/2.52 1.0 1.8 2 × 0.2 1.8 25.0 1877 0.387 3.5 160 185
2 × 70 14/2.52 1.1 1.8 2 × 0.2 1.8 27.0 2454 0.268 3.5 200 225
2 × 95 19/2.52 1.1 2.0 2 × 0.2 1.9 30.0 2483 0.193 3.5 245 270
2 × 120 24/2.52 1.2 2.0 2 × 0.2 2.0 33.0 4213 0.153 3.5 285 310
2 × 150 30/2.52 1.4 2.0 2 × 0.5 2.0 38.0 5087 0.124 3.5 325 345



Standard



International: IEC 60502, IEC 60228, IEC 60332

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request

font-size:10.0000pt;mso-font-kerning:0.0000pt;" >PVC type ST2 to IEC 60502, black

Packing & Shipping

All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum.

The packing material is depended on the weight and size of cable.

The good information, manufacture information, and the client's information is firmly printed on each size of drum.

After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight.

The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.



Our Services

♦ We are the one of biggest manufacture of electric wire and power cable in southwest of China and has more than 20 years producing and marketing experience.

♦ We accept OEM. The cable size and material are customized.Ur own logo and

own design are welcome. We will produce according to your requirement and description;

♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.



FAQ
1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc
2. Payment: We accept T/T, L/C , just choose what you like
3. Delivery time: Generally 7~10 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples below 20 centimeter can be provided freely.
