| Insulation: | PVC | Conductor: | Solid Copper Conductor |
|---|---|---|---|
| Sheath: | PVC | Shield: | BC Braid Shield |
| Core: | 2-44 And More | Size: | 0.75-4 |
| Corporation: | Shenghua Group | Brand: | Sh Cable |
| Highlight: | shielded control cable,control wire |
||

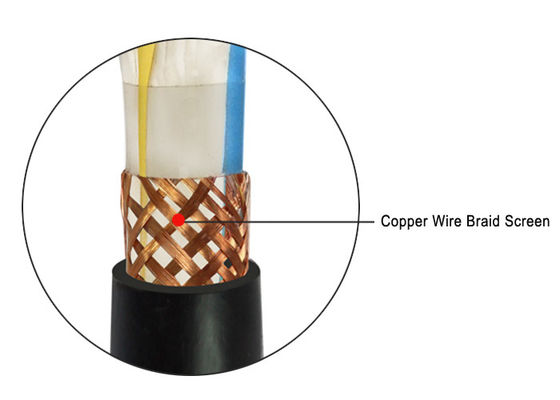

Copper core PVC insulated and sheathed braided shield control cable
1.Implementation standards
GB/T 9330.1-2008 GB/T9330.2-2008 GB/T 19666-2005
2.Product Usage
kvv cable is a PVC insulated control cable, used for control, signal, protection and measurement system wiring. By GB9330, IEC60227 and IEC60502 standards and other manufacturing.
3.Product use characteristics
3.1 The conductor of the cable is the maximum operating temperature of 70.
3.2 Ambient temperature is not less than 0℃
3.3 Cable flame retardant properties meet the requirements of the corresponding indicators in the
GB/T19666-2005 standard.
4.Modle
kvvp
5.Cable structure size
| Nominal Aluminum(mm2) | Insulation thickness(mm) | shielding copper wire diameter (mm) | sheath thickness (mm) | cable outside diameter(mm) | cable weight(kg/km) |
| 2x0.75 | 0.6 | 0.15 | 1.2 | 8.1 | 94 |
| 2x1 | 0.6 | 0.15 | 1.2 | 8.4 | 101 |
| 2x1.5 | 0.7 | 0.15 | 1.2 | 9.3 | 124 |
| 2x2.5 | 0.8 | 0.15 | 1.2 | 10.5 | 159 |
| 2x4 | 0.8 | 0.20 | 1.2 | 11.7 | 214 |
The above parameters are only part of the parameters, for reference only.
