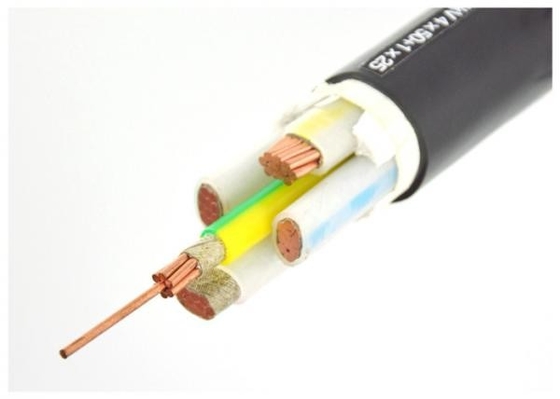

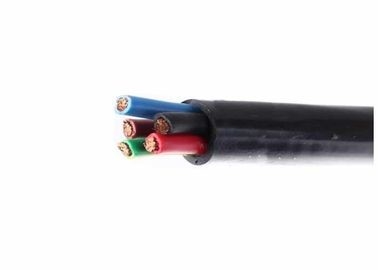

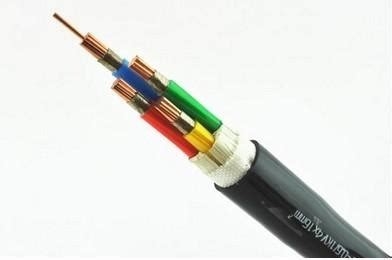

4 Cores Fire Resistant Cable Mica Tape XLPE Insulated Sheathed Fire Proof Cable 0.6 / 1kV

China 4 Cores Fire Resistant Cable Mica Tape XLPE Insulated Sheathed  Fire Proof Cable 0.6 / 1kV supplier
4 Cores Fire Resistant Cable Mica Tape XLPE Insulated Sheathed  Fire Proof Cable 0.6 / 1kV supplier 4 Cores Fire Resistant Cable Mica Tape XLPE Insulated Sheathed  Fire Proof Cable 0.6 / 1kV supplier 4 Cores Fire Resistant Cable Mica Tape XLPE Insulated Sheathed  Fire Proof Cable 0.6 / 1kV supplier 4 Cores Fire Resistant Cable Mica Tape XLPE Insulated Sheathed  Fire Proof Cable 0.6 / 1kV supplier

Large Image :  4 Cores Fire Resistant Cable Mica Tape XLPE Insulated Sheathed Fire Proof Cable 0.6 / 1kV

Product Details:

Place of Origin: SHANGHAI,CHINA
Brand Name: SHANCABLE
Certification: CE/KEMA/ISO/PCCC
Model Number: WDZAN-YJY

Payment & Shipping Terms:

Minimum Order Quantity: 1000m
Price: 0.15-35.9 US$/M
Packaging Details: Customized
Delivery Time: As per requirement
Supply Ability: 10KM per Week
Contact Now
Detailed Product Description
Screen: Mica Tape Rated Voltage: 600/1000V
Insulation: XLPE Sample: Free
Number Of Cores: 1,2,3,4,5 Application: Indoor And Outdoor
Sheath: LSOH PO Color: Black, Orange

4 Cores Fire Proof Cable Mica Tape XLPE Insulated Fire Resistant Sheathed 0.6/1kV





Rated Voltage: 0.6/1KV

Range of Nominal cross section: 1 core: 1.5 mm2 ~ 300 mm2 Multi core: 0.75 mm2 ~ 35 mm2



Our fire performance cables are specifically designed for augmented fire resistance in applications including the delivery of power and auxiliary control in fire alarm systems, voice alarm systems, and emergency lighting systems including those applications designed to meet BS5266. These cables will form part of the requirements of BS8519 for the installation of fire-resistant power and control cable systems for life safety and fire-fighting applications.



Applications



These cables are installed to supply power to building essential services including fire alarms,

sprinkler control system, emergency and evacuation lighting and smoke control systems,

such as high rise buildings and apartments, airports, shopping centres, cinemas and road and rail tunnels

And tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.





Product name Fire resistant marine power cu xlpe cable Code letter
Conductor Stranded or tinned copper wire -
Insulation Cross-linked polyethylene (XLPE) J
Filler and tape Non-hygroscopic material -
Inner sheath Polyvinyl chloride (PVC) V
Screen or Armor Galvanized steel wire braided 9
Outer sheath Polyvinyl chloride (PVC) 2
Fire resistant performance Fire resistant N
Flame retardant Bunched flame retardant S
Low smoke and halogen free Smoke, halogen and toxicity A
Rated voltage 0.6/1kV
Operating temperature -15℃~+90℃
Certificate ABS,BV,CCS,DNV,GL,KR,LR,NK,RINA,RS
Test voltage 3.5kV/5min
Application shipboard,offshore building, lighting and control system
Number of cores*section 7*1.5
Weight 418kg/km
Outer diameter 16.3-18.7mm



Technical data



Max. Conductor Temp.: normal (90°C), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250°C )

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%





Certificates



CE, RoHS, CCC, KEMA and more others at request





Specifications



Nom. Cross-section of conductor Insulation Thickness Sheath Approx. Approx Max. D.C. Resistance of Conductor (20°C) Test Voltage Current Rating
mm2 mm Thickness O.D. Weight Ω/km A.C
    mm mm kg/km   kV/5min In air(A) In soil(A)
4×1.5 0.7 1.8 14.4 241 12.1 3.5 20 27
4×2.5 0.7 1.8 15.4 295 7.41 3.5 26 35
4×4 0.7 1.8 16.5 369 4.61 3.5 34 45
4×6 0.7 1.8 17.8 463 3.08 3.5 43 57
4×10 0.7 1.8 20.9 667 1.83 3.5 60 77
4×16 0.7 1.8 23.4 930 1.15 3.5 83 105
4×25 0.9 1.8 27.1 1351 0.727 3.5 105 125
4×35 0.9 1.8 29.5 1772 0.524 3.5 125 155
4×50 1 1.9 38.4 2380 0.387 3.5 160 185
4×70 1.1 2 43.2 3302 0.268 3.5 200 225
4×95 1.1 2.2 47.3 4330 0.193 3.5 245 270
4×120 1.2 2.3 52.5 5374 0.153 3.5 285 310
4×150 1.4 2.5 58.3 6655 0.124 3.5 325 345
4×185 1.6 2.7 64.7 8246 0.0991 3.5 375 390
4×240 1.7 2.9 73.1 10569 0.0754 3.5 440 450
4×2.5+1×1.5 0.7 1.8 16.5 313 7.41   26 35
4×4+1×2.5 0.7 1.8 17.7 424 4.61   34 45
4×6+1×4 0.7 1.8 19.1 535 3.08   43 57
4×10+1×6 0.7 1.8 22.1 760 1.83   60 77
4×16+1×10 0.7 1.8 25.1 1071 1.15   83 105
4×25+1×16 0.7 1.8 29 1556 0.727   105 125
4×35+1×16 0.9 1.9 31.4 1976 0.524   125 155
4×50+1×25 1 2.1 36 2689 0.387   160 185
4×70+1×35 1.1 2.2 41.1 3719 0.268   200 225
4×95+1×50 1.1 2.4 46.3 4903 0.193   245 270
4×120+1×70 1.2 2.5 51 6165 0.153   285 310
4×150+1×70 1.4 2.7 55.8 7431 0.124   325 345
4×185+1×95 1.6 2.9 62.1 9192 0.0991   375 390
4×240+1×120 1.7 3.1 68.8 11860 0.0754   440 450

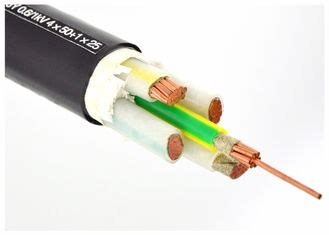

4 Cores Fire Resistant Cable Mica Tape XLPE Insulated Sheathed  Fire Proof Cable 0.6 / 1kV

Operating characteristics



1. Max Long-time operating temperature of PVC insulated cable is 70°C,XLPE 90°C;

2. Installing temperature of cable should not be less than 0°C;

3. Max short-circuit temperature is:PVC not exceed 160°C,XLPE 250°C,Not more than5 Sec;

4. Permitting bending radius cable: Not less than 10 D times (D:external diameter of cable)

5. Perfect chemical stability, resistant against acids, alkali, grease and organic solvents, and flamer retardant.





FAQ



Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc

Payment: We accept T/T, L/C , just choose what you like

Delivery time: Generally 15~25 working days upon receipt deposit. According to the quantity.

MOQ: Generally our MOQ is 1000meters. samples below 20 centimeter can be provided freely.
