Shanghai Shenghua Group Cable CU / Mica Tape Fire Resistant Cable For Sprinkler / Smoke Control System

CU / Mica Tape Fire Resistant Cable For Sprinkler / Smoke Control System


​​Defying Disaster: Shanghai Shenghua’s Mica Fire Resistant Cables for Life-Saving Safety Systems​​

When fire strikes high-rises, tunnels, or hospitals, ​​circuit failure in sprinklers or smoke controls can cost lives​​. Shanghai Shenghua Power Group Cable engineers ​​CU/Mica Tape Fire Resistant Cables​​ to outlast infernos—ensuring critical systems keep operating even at ​​950°C for 90+ minutes​​

​​Triple-Shielded Fire Defense: The Shenghua Engineering Standard​​

1. ​​Mica Firewall Core​​:

   • Copper conductors wrapped in ​​mica tape​​ resist temperatures up to ​​800°C​​, preventing conductor exposure during prolonged fires—exceeding IEC 60331 and BS 6387 standards


   • Unlike standard cables, mica maintains circuit integrity for sprinklers and smoke exhaust fans when flames engulf conduits.

2. ​​XLPE + LSZH Armor​​:

   • ​​XLPE insulation​​ withstands ​​90°C continuous heat​​ and ​​250°C short-circuit spikes​​ (5 seconds), outperforming PVC’s 70°C limit while resisting electrical degradation





     .
   • ​​Zero-halogen LSZH sheathing​​ reduces toxic smoke to ​​<0.5% HCl​​ (IEC 60754-1) and ensures ​​>60% light transmittance​​ (IEC 61034), critical for evacuation visibility





     .

3. ​​Mechanical Resilience​​:

   • Steel tape armoring (e.g., SC1-FPB-CE2 models) protects against falling debris and water spray during firefighting


   • Cold-climate flexibility: Preheating enables installation at ​​-30°C​​, with operational stability from ​​-40°C to 90°C​​



​​Certified for Global Critical Infrastructures​​

Shenghua’s cables comply with post-Grenfell EU/UK regulations, including:

• ​​CPR Euroclass B2ca​​: 40% lower smoke emission than minimum requirements


• ​​BS 7671 Amendment 2​​: Mandatory for UK fire safety systems


• ​​IEC 60331 & EN 50200​​: Validated 90-minute circuit integrity (PH 120 rating)





• ​​Certifications​​: CE, RoHS, CCC, KEMA (third-party verified)



​​Technical Specifications: Shenghua Fire Resistant Cables​​

All models feature color-coded cores (Red/Black/Blue/White + Green/Yellow earth) for error-proof installation.

​​Applications Where Failure Is Not an Option​​

• ​​High-Rise Buildings​​: Powers smoke extraction fans and sprinkler pumps (e.g., London skyscraper retrofit with SC1-FPB-CE2).
• ​​Tunnels & Metros​​: Ensures emergency lighting stays on during evacuations (LSZH sheathing reduces smoke obscuration)


• ​​Hospitals/Airports​​: Maintains fire alarm functionality for 90+ minutes (IEC 60331-certified)



​​Why Global Engineers Choose Shenghua​​

• ​​30+ Years of Expertise​​: China’s #2 cable manufacturer (13B RMB revenue, 600 engineers) with IEC/BS-certified production


• ​​Rigorous Testing​​: On-site fire labs validate performance under BS 6387 Category CWZ (fire + water + mechanical shock)


• ​​Global Supply​​: 15-day delivery from Shanghai hubs to EU/ASEAN sites



Application:
These cables are installed to supply power to building essential services including fire alarms,
sprinkler control system, emergency and evacuation lighting and smoke control systems,
such as high rise buildings and apartments, airports, shopping centres, cinemas and road and rail tunnels

Constructions

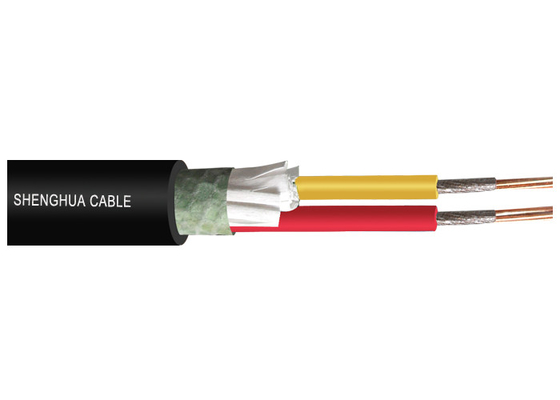

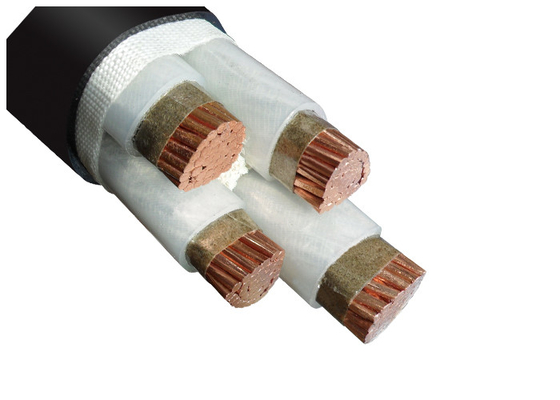

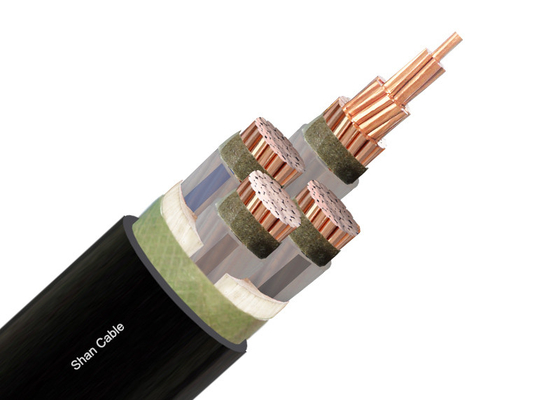

Conductor: Class 1/2 Plain annealed copper wires, solid or stranded, with mica tape wound
Insulation: XLPE or LSZH compound
Sheath: LSZH compound
Core color: red, black, blue, white for active core, green/yellow for earth core, orange or red or black for sheath

Technical data

Rated voltage: 0.6-KV
Max. Conductor Temp.: Normal (90°C), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250°C )
Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C
Min. Bending Radius: Single core cable 20(d+D)±5%
                                      Multi-core cable 15(d+D)±5%

Certificates
CE, RoHS, CCC, KEMA and more others at request
