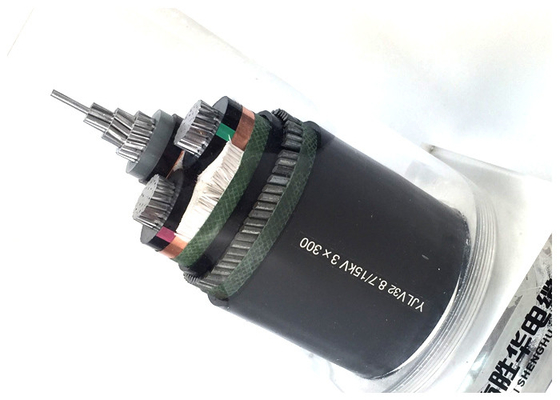

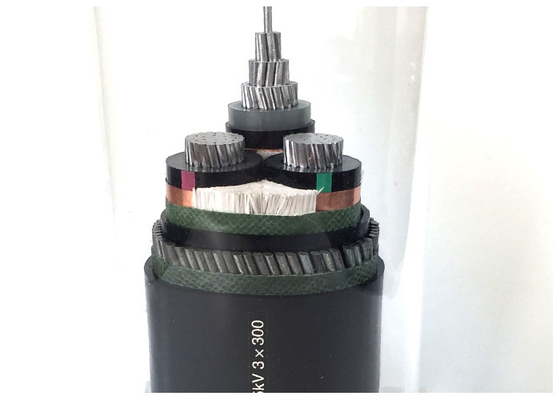

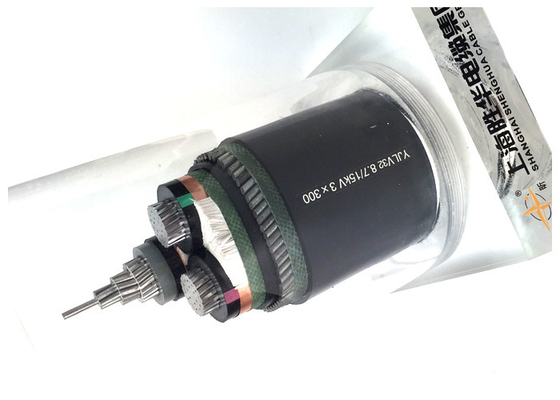

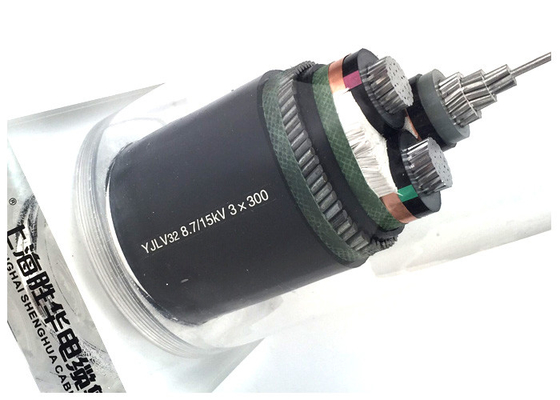

Medium Voltage Steel Wire Armour Power Cable With Aluminium Conductor

China Medium Voltage Steel Wire Armour Power Cable With Aluminium Conductor supplier
Medium Voltage Steel Wire Armour Power Cable With Aluminium Conductor supplier Medium Voltage Steel Wire Armour Power Cable With Aluminium Conductor supplier Medium Voltage Steel Wire Armour Power Cable With Aluminium Conductor supplier Medium Voltage Steel Wire Armour Power Cable With Aluminium Conductor supplier

Large Image :  Medium Voltage Steel Wire Armour Power Cable With Aluminium Conductor

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: YJLV32 8.7/15kV

Payment & Shipping Terms:

Minimum Order Quantity: 1000 Meters
Price: $0.25~105/M
Packaging Details: Drums
Delivery Time: a week or 10days
Payment Terms: T/T, L/C
Supply Ability: 10,000 Kilometers per Month
Contact Now
Detailed Product Description
Product Name: Steel Armored Cable Rated Voltage: 8.7/15kV
Insulation: XLPE Conductor: AL
Armour: Steel WIRE Sizes: 1.0 To 630 Sqmm
Cores: 1 Or 3Cores Standards: IEC / BS / IS / VDE

Medium Voltage Steel Wire Armour Power Cable With Aluminium Conductor



Rated Voltage(kV):



8.7/15kV


Number of cores:



1 or 3 and so on.





Standards



IEC60502, BS6346, VDE, AS/NZS, UL,etc or as customer's request.

Construction



Conductor : Solid or stranded Aluminium conductor, Cl.1 or Cl.2 as per IEC 60228
Insulation : XLPE(cross-linked polyethylene) rated at 90 OC
Inner covering : PVC
Armoring : Steel tape
Sheath : PVC type ST2 to IEC 60502, black



Model & Spec.



Type Desciption Rated Voltage NO. of Cores Nomibal section(mm2) Applications
YJV YJLV Cu or Al conductor,XLPE insulated.PVC sheathed electric cable 0.6/1KV 1,2,3,4 1.5 to 400 For laying indoors and outdoors.The LV XLPE insulated power cable is used in transmission and distribution system at rated voltagae U(Um) ≤10KV.The HV XLPE insulated power cable refers to the power cable transmission between 10KV-35KV, it is often applied to the main road of power transmission. Able to bear certain traction during installation, but not external mechanical forces.
3+1 3×4+1×2.5 to 3×400+1×185
6/6kV 1,3 25 to 500
8.7/10kV 8.7/15kV 12/20kV 1 25 to 500
3 25 to 300
21/35kv 1 50 to 500
YJV22 YJLV22 Cu or Al conductor,XLPE insulated steel tape armoured PVC sheathed electric cable 0.6/1KV 3 1.5 to 400 Suitable for burying in ground, Able to bear external mechanical forces but large pulling forces.
4 4 to 240
6/6kV 8.7/10kV 8.7/15kV 12/20kV 3 25 to 300
21/35kv 3 50 to 240





Technique property:



1,The long time working temperature is at 75℃, suffer short circuit (within 5 seconds), the temperature of core can not higher than 160℃

2,The ambient temperature should not lower than -10℃

3,The laying temperature should not lower than 0℃

4,Single core’s bend radius with no armor should not exceed 20D,single core’s bend radius with armor should not exceed than 15D,three cores’ bend radius with armor should not exceed 12D



Note:



1. Only a part of cables are listed in the table. Cables with other specifications can be inquired.

2. Cables can be supplied with a range of single mode or multi mode.
3. Specially designed Cables structure is available on request.





* The laying temperature of cables should not be lower than 0 degree, When the ambient temperature is under 0 degree, the cables should be heated up to 0 degreeor higher with certain methodsThis series includes:



* Copper (aluminum) core, PVC insulated and sheathed power cables

* Copper (aluminum) core, PVC insulated, PE sheathed power cables

* Copper (aluminum) core, PVC insulated, steel tape armoring PVC sheathed power cables.

* Copper (aluminum) core, PVC insulated, steel tape armoring, PE sheathed power cables

* Copper (aluminum) core, PVC insulated, steel wire armoring, PVC sheathed powercables

* Copper (aluminum) core, PVC insulated, steel wire armoring, PE sheathed power cables





PACKING AND SHIPPING



We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.



Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.






Services


♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
