Double Steel Wire Armoured Electrical Cable High Voltage 3 Phase UG 3x300 SQ . MM

China Double Steel Wire Armoured Electrical Cable High Voltage 3 Phase  UG 3x300 SQ . MM supplier
Double Steel Wire Armoured Electrical Cable High Voltage 3 Phase  UG 3x300 SQ . MM supplier Double Steel Wire Armoured Electrical Cable High Voltage 3 Phase  UG 3x300 SQ . MM supplier Double Steel Wire Armoured Electrical Cable High Voltage 3 Phase  UG 3x300 SQ . MM supplier Double Steel Wire Armoured Electrical Cable High Voltage 3 Phase  UG 3x300 SQ . MM supplier

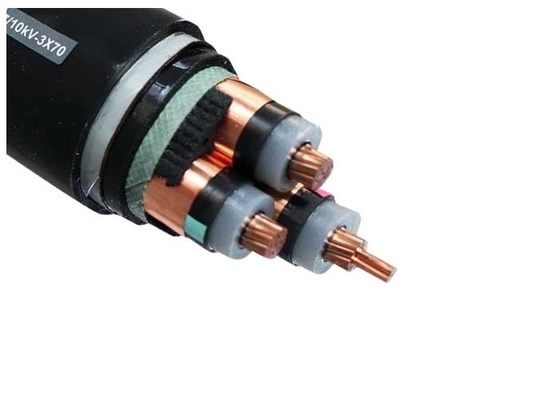

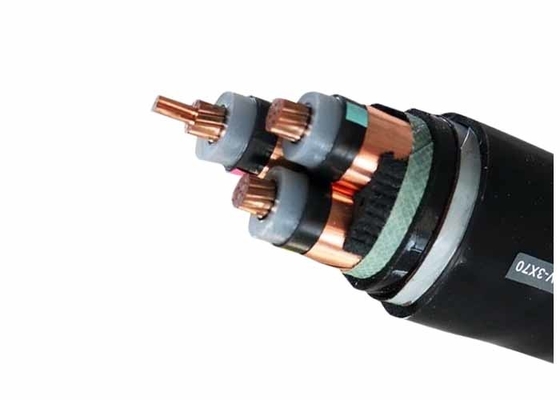

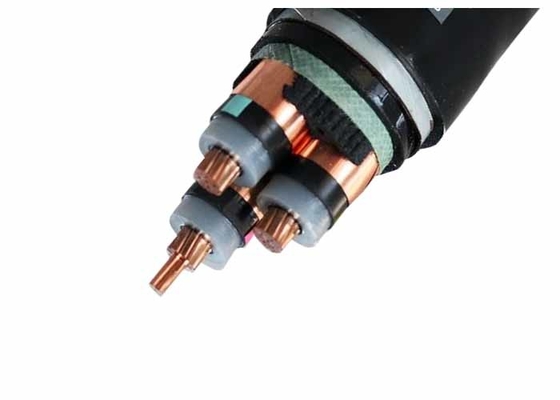

Large Image :  Double Steel Wire Armoured Electrical Cable High Voltage 3 Phase UG 3x300 SQ . MM

Product Details:

Place of Origin: Shanghai China
Brand Name: SHAN CABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: YJV22-3x300mm2

Payment & Shipping Terms:

Minimum Order Quantity: 100m
Price: USD 3.88-10.89/M
Packaging Details: Wooden drum
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 863790KM/week
Contact Now
Detailed Product Description
Conductor: Stranded Copper Insulated: XLPE
Screen: Copper Tape Inner Sheath: PVC
Armoured: Double Steel Wire Warranty: 2 Years

Double Steel Tape Armoured High Voltage 3 Phase Electrical Cable UG 3x300 SQ.MM





MV(6 to 35kv) Power Cable Details



YJ: XLPE insulation

V: PVC sheath

32:Steel wire armoring—3 cores

22:Steel tape armoring—3 cores

72: Aluminum wire armoring—1 core

62: Stainless steel tape armoring—1 core

ZR: Flame resistant



MV(11kv 15kv 33kv) Power Cable
Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV No.of Core Conductor cross-section area(mm2)
xlpe insulation 1 core 3 core 10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm
Cu core
YJV, N2XSY;PVC sheathed power cable
YJV22;steel tape armoured,PVC sheathed power cable
YJV32,YJV42;steel wire armoured ,PVC sheathed power cable
Al Core
YJLV, NA2XSY; PVC sheathed power cable
YJLV22;steel tape armoured,PVC sheathed power cable
YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable



This product is applicable to the power transmission and distribution line with AC rated voltage(U0/U) of 3.6/6kV-26/36kV system.It is routed in air (cable bridge frame,indoor wall support,and tray) and soil(direct buried, cable trench,pipe ect.) respectively according to difference of the protection layer structure.

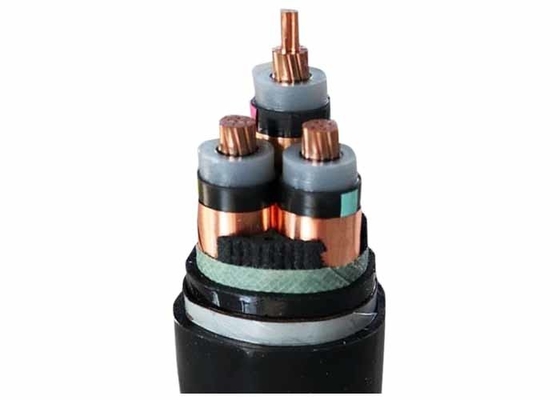

Construction



1 ..... stranded bare copper
2 ..... inner layer of semi-conducting material
3 ..... core insulation of cross-linked polyethylene
4 ..... outer layer of semi-conducting material
5 ..... semi-conducting tape
6 ..... screen of copper wires

7 ..... Fillers strip, Yarn, or Paper
8 ..... Non woven Wrapping tape or Flame Retardant

9 ..... Extruded PVC Inner Covering

10 .... Stainless Steel Tape Armoured
11 .... Overall Sheath: polyvinylchloride (PVC) or FR-PVC, PE, LSOH

Application

Used in transformer stations, switching blocks, in electric power plants and industrial plants. Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain.

Standards



International: IEC 60502-2, IEC 60228

China: GB/T 12706.2-2008

Other standards such as BS,DIN and ICEA upon request

Technical data:

Test voltage 6 / 10 kV [kV] 21 / 5 min.
  12 / 20 kV [kV] 42 / 5 min.
  18 / 30 kV [kV] 63 / 5 min.
Temperature range in motion   -20°C till +90°C
  fixed   -20°C till +90°C
Operating temperature short circuit °C 250
Short circuit time max. [sec] 5
Bending radius min. x diameter 15
Flammability standard   EN 50265-2-1



*) Packing: CUT = cable in different lengths on drum or reel, possible cutting at required length



Certificate



ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request



PACKING AND SHIPPING



All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum. The packing material is depended on the weight and size of cable. After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight. The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.

Services
♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.



Double Steel Wire Armoured Electrical Cable High Voltage 3 Phase  UG 3x300 SQ . MM
