Product Details:
Payment & Shipping Terms:
|
| Conductor Material: | Copper | Screen: | Copper Wire |
|---|---|---|---|
| Insulation: | PVC | Screen Type: | Copper Wire Braided |
| Cores: | 2 To 61 | Packing: | Steel Wooden Drum |
| High Light: | control wire,shielded control cable |
||

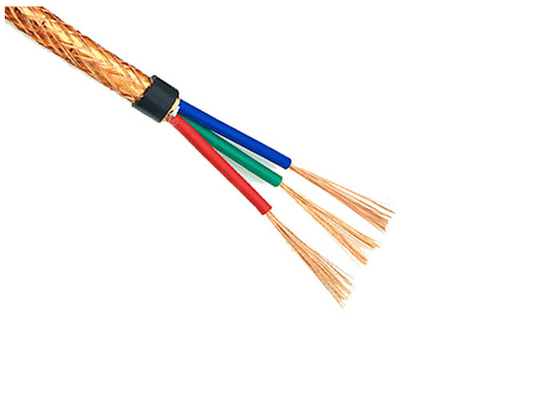

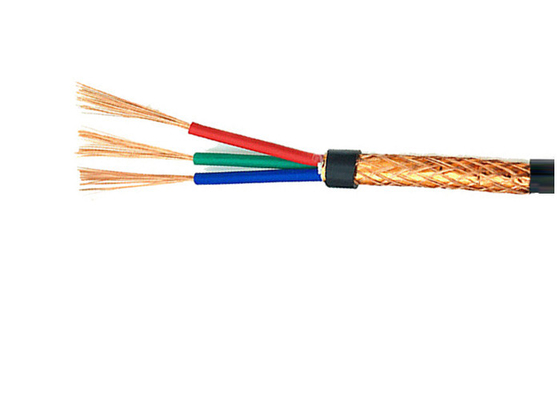

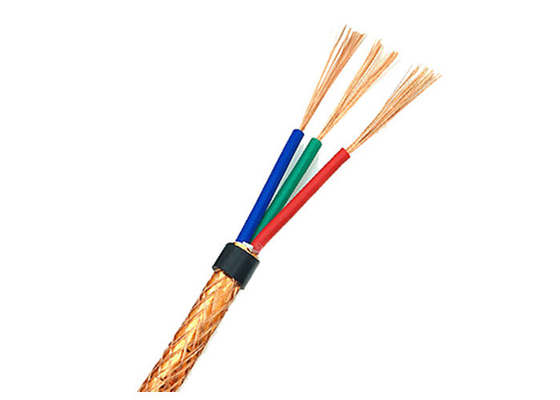

Low Voltage Shielded Multicore Cable Control System Control Cable PVC Insulated Copper Wire
Descriptions:
Conductor: Flexible Copper Conductor
Insualtion: PVC
Screen: Copper Wire Brain Screen
Sheath: PVC
Operating characteristics
Rated voltage: U0 / U is 450 / 750V.
Conductor wire core long-term working temperature is 70 ℃, 95 ℃ two types of cable laying temperature not lower than 0 ℃.
Recommended cable bending radius as follows:
Non-armored cable should be not less than 6 times the cable diameter;
Armor or copper tape shielded cable, shall not be less than 12 times the cable diameter;
Shielded flexible cable, not less than 6 times the cable diameter
Standard:
IEC Standard: IEC 60227, IEC60228
China Standard: GB9330
Other standards such as BS,DIN and ICEA upon request
Certificates
CE, RoHS, CCC, KEMA and more others at request
Application:
Suitable for industrial and mining enterprises, energy and transportation sectors, for rated voltage 450/750 volts control, protection PVC insulated lines and other occasions, and PVC sheathed control cable.
Why Choose SHAN CABLE
Here's Shanghai Shenghua Cable Is Committed to Offer for Every Customer:
High quality cable product with competitive price;
OEM cable product
Custom design per specific cable requirements and budgets;
Fast and on-time delivery of cable;
Flexible business deal;
Chief cable engineer with over 40 years' experience;
Harmonious colleague and customer relationship;
All cable products 100% Inspection;
Comprehensive after-sale service.
| Cross-Sectional Area mm2 |
Thickness of Insulation mm |
Diameter of Copper Wire mm |
Thickness of Sheath mm |
Overall Diameter mm |
Min resistance of insulation at 70℃ MΩ/km |
Max.D.C resistance of at 20℃ MΩ/km |
Approx Weight (kg/km) |
|
| min | max | |||||||
| 4x0.75 | 0.6 | 0.15 | 1.2 | 8.1 | 9.7 | 0.012 | 24.5 | 144 |
| 4x1 | 0.6 | 0.15 | 1.2 | 8.4 | 10.2 | 0.011 | 18.1 | 153 |
| 4x1.5 | 0.7 | 0.15 | 1.2 | 9.5 | 11.4 | 0.011 | 12.1 | 190 |
| 4x2.5 | 0.8 | 0.15 | 1.5 | 10.9 | 13.1 | 0.01 | 7.41 | 276 |
| 4x4 | 0.8 | 0.15 | 1.5 | 12.5 | 15.1 | 0.0085 | 4.61 | 367 |
| 4x6 | 0.8 | 0.15 | 1.5 | 13.6 | 16.5 | 0.007 | 3.08 | 467 |
| 4x10 | 1 | 0.2 | 1.7 | 17.1 | 20.7 | 0.0065 | 1.83 | 728 |
| 7x0.75 | 0.6 | 0.15 | 1.2 | 9.3 | 11.2 | 0.012 | 24.5 | 178 |
| 7x1.0 | 0.6 | 0.15 | 1.2 | 9.7 | 11.7 | 0.011 | 18.1 | 209 |
| 7x1.5 | 0.7 | 0.15 | 1.5 | 11 | 13.3 | 0.011 | 12.1 | 239 |
| 7x2.5 | 0.8 | 0.15 | 1.5 | 13.3 | 16.1 | 0.01 | 7.41 | 398 |
| 7x4 | 0.8 | 0.15 | 1.5 | 14.6 | 17.6 | 0.0085 | 4.61 | 528 |
| 7x6 | 0.8 | 0.2 | 1.5 | 16 | 19.4 | 0.007 | 3.08 | 717 |
| 7x10 | 1 | 0.2 | 1.7 | 20.7 | 25.1 | 0.0065 | 1.83 | 1145 |
| 10x0.75 | 0.6 | 0.15 | 1.5 | 11.3 | 13.7 | 0.012 | 24.5 | 214 |
| 10x1 | 0.6 | 0.15 | 1.5 | 12.5 | 15.1 | 0.011 | 18.1 | 300 |
| 10x1.5 | 0.7 | 0.15 | 1.5 | 14.2 | 17.2 | 0.011 | 12.1 | 367 |
| 10x2.5 | 0.8 | 0.15 | 1.7 | 16.5 | 20 | 0.01 | 7.41 | 572 |
| 10x4 | 0.8 | 0.15 | 1.7 | 18.6 | 22.5 | 0.0085 | 4.61 | 787 |
| 10x6 | 0.8 | 0.2 | 1.7 | 20.5 | 24.8 | 0.007 | 3.08 | 992 |
