Product Name: | Aerial Bundle Cable | Nominal Area Of Conductor: | Power Cable:10mm2 To 400mm2 |
---|---|---|---|
Insulation: | XLPE Or PVC | Standard: | IEC61089 |
Application: | Overhead Power Line | Rated Voltage: | 600/1000V |
Cable Type: | Class 2 | Type: | ABC |
High Light: | 800 X 600 aluminum aerial cable,ABC aerial bunched cable |

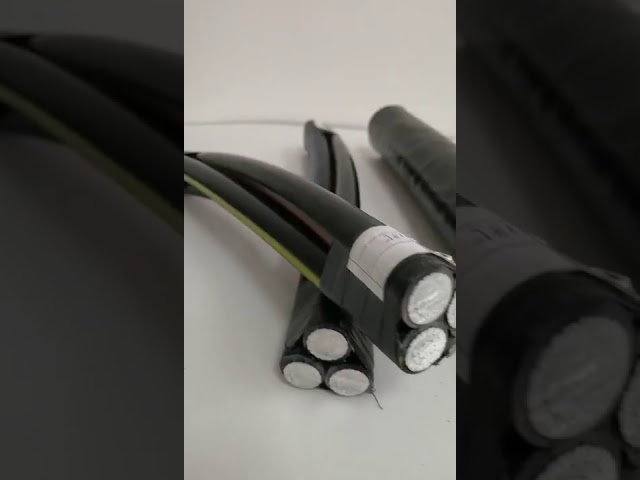

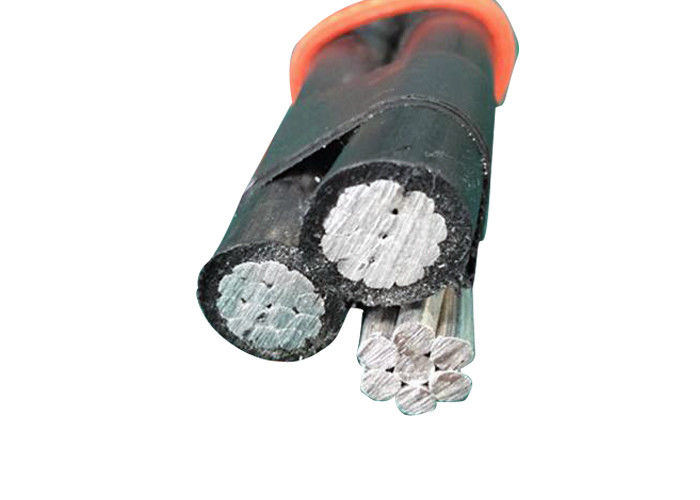

ABC Aerial Bundle Cable With Street Lighting Conductor
Aerial Bundle Cable Constructions
1. Phase Neutral Street Lighting Conductor: Plain circular stranded alunimum or aluminum alloy conductor, according to IEC 61089.
2. Insulation: XLPE or PVC or PE Insulation.according to IEC 60502.
Aerial Bundle Cable Applications
The product is used for overhear power lines with rated voltage if 1KV
Aerial Bundle Cable Standards
International: IEC 61089,IEC 60502
China: GB/T 12527-2008
Other standards such as BS,DIN and ICEA upon request
Aerial Bundle Cable Technical data
Rated voltage: 0.6 / 1 kV
Max. Conductor Temp.: normal (90℃), short circuit no more than 5 s (160℃)
Min. Ambient Temp.: 0℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 12 x cable O.D
Aerial Bundle Cable Certificates
CE, RoHS, CCC, KEMA and more others at request
Aerial Bundle Cable Parameters
Pictures
packing: wooden iron drums,
