XLPE Insulation PVC Sheath Copper Conductor Cable

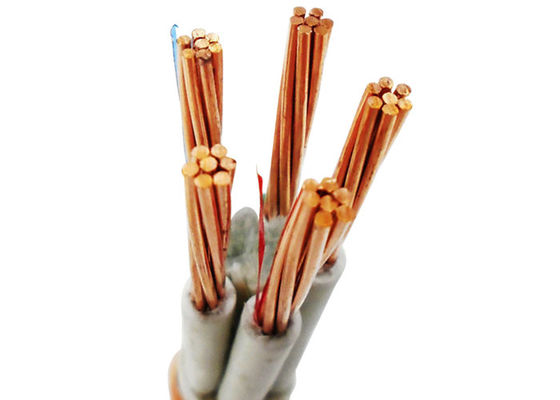

Large Image : XLPE Insulation PVC Sheath Copper Conductor Cable

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	SHANCABLE
Certification:	ISO,CE,IEC,TUV,KEMA
Model Number:	N2XY 0.6-1V

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Drum
Delivery Time:	10 Days
Payment Terms:	L/C, T/T
Supply Ability:	100KM/Week

Contact Now

Detailed Product Description

Conductor:	Stranded Copper Conductor	Insulation:	XLPE
Sheath:	LSZH	Test Voltage:	3.5KV/5mins
Product Name:	XLPE Insulated PVC Sheathed Power Cable	Core:	Multi-core
High Light:	PVC Sheath Copper Conductor Cable , XLPE Insulation Copper Conductor Cable , LSZH Copper Conductor Cable

N2XY POWER CABLE COPPER

N2XY Copper Conductor XLPE Insulation PVC Sheath Power Cable

Constructions

Conductor : Stranded copper conductor, Class2as per IEC 60228

Insulation : XLPE

Sheath : LSZH

Test Voltage :3.5KV/5mins

Applications

The cable is suitable for the fixed laying in the AC 50Hz,for electric transmission.

Standards

International: VDE0276 ,IECASTM,JS,BS

China: GB/T 12706, GB/T 19666

Other standards such as BS,DIN and ICEA upon request

Certificates

Rated voltage:0.6/1kV

Maximum Conductor Temperature: under normal (90^OC), emergency (130^OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0^OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core

15 x cable O.D for multi core

CE, RoHS, , KEMA and more others at request

Commercial Items: MOQ: 200m

Payment terms: 30% T/T before production, 70% T/T before delivery

Packing : Wooden Iron drum

Specifications

Nom. Cross-section of conductor	Strands No./Dia. Of Conductor	Insulation Thickness	Sheath Thickness	Approx. O.D.	Approx. Weight	Max. D.C Resistance of Conductor (20 ℃)	Testing Voltage A.C	Current Rating
mm²	pc/mm	mm	mm	(mm)	kg/km	Ω /km	kV/5min	In air (A)	In soil(A)
5 × 4	1/2.25	0.7	1.8	14.5	349	4.61	3.5	34	45
5 × 6	1/2.76	0.7	1.8	15.8	460	3.08	3.5	43	57
5× 10	7/1.38	0.7	1.8	19.0	699	1.83	3.5	60	77
5 × 16	7/1.78	0.7	1.8	22.0	1013	1.15	3.5	83	105
5 × 25	7/2.14	0.9	1.8	25.0	1566	0.727	3.5	105	125
5 × 35	7/2.52	0.9	1.9	28.0	2083	0.524	3.5	125	155
5× 50	10/2.52	1.0	2.0	31.0	2921	0.387	3.5	160	185
5× 70	14/2.52	1.1	2.1	36.0	3974	0.268	3.5	200	225
3 × 4+ 2 × 2.5	1/2.25+1/1.38	0.7	1.8	13.9	309	4.61	3.5	34	45
3 × 6+ 2 × 4	1/2.76+1/2.25	0.7	1.8	15.3	413	3.08	3.5	43	57
3 × 10+ 2 × 6	7/1.38+1/2.8	0.7	1.8	17.7	603	1.83	3.5	60	77
3 × 16+ 2 × 10	7/1.78+7/1.38	0.7	1.8	20.7	888	1.15	3.5	83	105
3 × 25+ 2 × 16	7/2.14+7/1.78	0.9	1.8	24.0	1342	0.727	3.5	105	125
3 × 35+ 2 × 16	7/2.52+7/1.78	0.9	1.8	25.7	1647	0.524	3.5	125	155
3 × 50+ 2 × 25	10/2.52+7/2.14	1.0	1.9	28.8	2386	0.387	3.5	160	185
5 × 6	1/2.76	0.7	1.8	15.8	460	3.08	3.5	43	57
3 × 70+ 2 × 35	14/2.52+7/2.52	1.1	2.0	32.4	3201	0.268	3.5	200	225
3 × 95+ 2 × 50	19/2.52+10/2.52	1.1	2.1	35.6	4269	0.193	3.5	245	270
3 × 120+ 2 × 70	24/2.52+14/2.52	1.2	2.3	41.1	5437	0.153	3.5	285	310
3 × 150+ 2 × 70	30/2.52+14/2.52	1.4	2.4	43.6	6519	0.124	3.5	325	345
3 × 185+ 2 × 95	37/2.52+19/2.52	1.6	2.5	49.1	8101	0.0991	3.5	375	390
3 × 240+ 2 × 120	48/2.52+24/2.52	1.7	2.7	54.2	10340	0.0754	3.5	440	450
3 × 300+ 2 × 150	61/2.52+30/2.52	1.8	2.8	55.6	12810	0.0601	3.5	505	515
4 × 10+ 1 × 6	7/1.38+1/2.8	0.7	1.8	18.3	649	1.83	3.5	60	77
4 × 16+ 1 × 10	7/1.78+7/1.38	0.7	1.8	21.1	965	1.15	3.5	83	105
4 × 25+ 1 × 16	7/2.14+7/1.78	0.9	1.8	24..5	1456	0.727	3.5	105	125
4 × 35+ 1 × 16	7/2.52+7/1.78	0.9	1.8	26.9	1863	0.524	3.5	125	155
4 × 50+ 1 × 25	10/2.52+7/2.14	1.0	1.9	28.8	2633	0.387	3.5	160	185
4 × 70+ 1 × 35	14/2.52+7/2.52	1.1	2.0	32.4	3565	0.268	3.5	200	225
4 × 95+ 1 × 50	19/2.52+10/2.52	1.1	2.1	35.6	4735	0.193	3.5	245	270
4 × 120+ 1 × 70	24/2.52+14/2.52	1.2	2.3	41.1	5977	0.153	3.5	285	310
4 × 150+ 1 × 70	30/2.52+14/2.52	1.4	2.4	43.6	7276	0.124	3.5	325	345
4 × 185+ 1 × 95	37/2.52+19/2.52	1.6	2.5	49.1	9055	0.0991	3.5	375	390
4 × 240+ 1 × 120	48/2.52+24/2.52	1.7	2.7	54.2	11567	0.0754	3.5	440	450
4 × 300+ 1 × 150	61/2.52+30/2.52	1.8	3.1	66.3	14321	0.0601	3.5	505	515
