PVC Sheathed Copper Power Cable 0.6/1kV XLPE Insulated Cable 1 - 5 Core

China PVC Sheathed Copper Power Cable 0.6/1kV XLPE Insulated Cable 1 - 5 Core supplier
PVC Sheathed Copper Power Cable 0.6/1kV XLPE Insulated Cable 1 - 5 Core supplier PVC Sheathed Copper Power Cable 0.6/1kV XLPE Insulated Cable 1 - 5 Core supplier PVC Sheathed Copper Power Cable 0.6/1kV XLPE Insulated Cable 1 - 5 Core supplier PVC Sheathed Copper Power Cable 0.6/1kV XLPE Insulated Cable 1 - 5 Core supplier

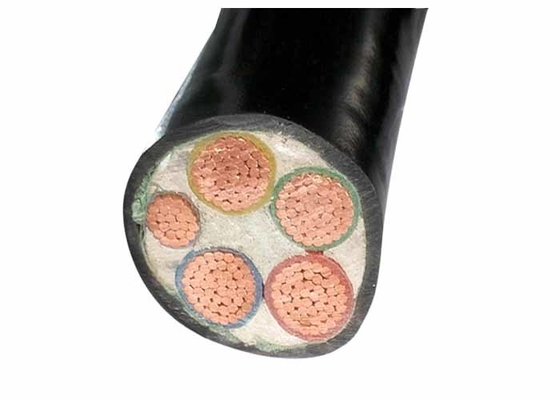

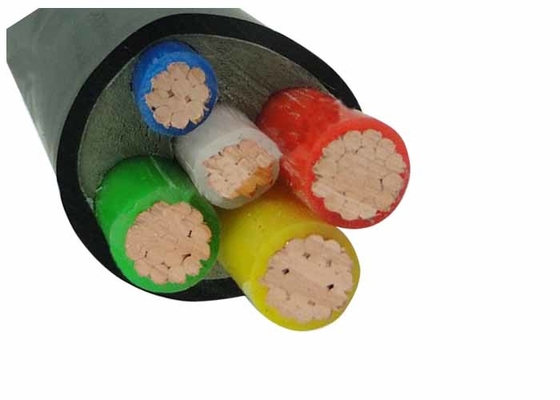

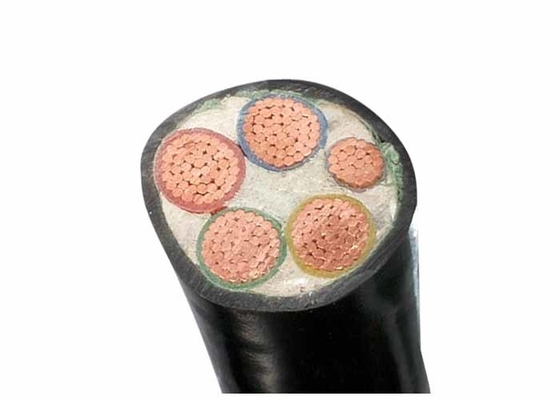

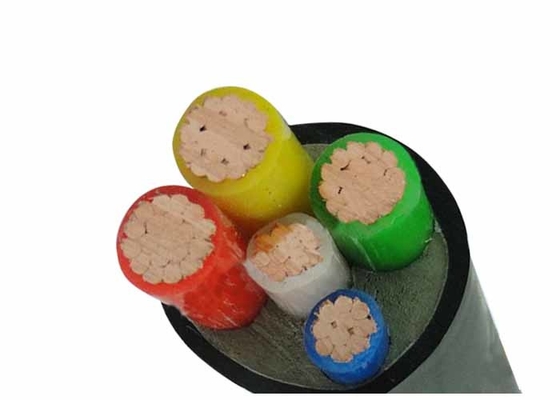

Large Image :  PVC Sheathed Copper Power Cable 0.6/1kV XLPE Insulated Cable 1 - 5 Core

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: CU/XLPE/PVC 1kV

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Model Name: Copper Tape Screen Power Cable Conductor Type: Copper
Size: 1.5~1000 Sqmm Core No.: 1~5
Insulation: XLPE Sheath Color: Black Or Red Or Customization
Marking: Embossing Or Ink Printing
High Light:

xlpe insulation cable

,

xlpe insulated cable

XLPE Insulated PVC Sheathed Copper Power Cable 0.6/1kV Shanghai Manufacturer


Type Desciption Rated Voltage NO. of Cores Nomibal section(mm2) Applications
YJV YJLV Cu or Al conductor,XLPE insulated.PVC sheathed electric cable 0.6/1KV 1,2,3,4 1.5 to 400 For laying indoors and outdoors.The LV XLPE insulated power cable is used in transmission and distribution system at rated voltagae U(Um) ≤10KV.The HV XLPE insulated power cable refers to the power cable transmission between 10KV-35KV, it is often applied to the main road of power transmission. Able to bear certain traction during installation, but not external mechanical forces.
3+1 3×4+1×2.5 to 3×400+1×185
6/6kV 1,3 25 to 500
8.7/10kV 8.7/15kV 12/20kV 1 25 to 500
3 25 to 300
21/35kv 1 50 to 500
YJV22 YJLV22 Cu or Al conductor,XLPE insulated steel tape armoured PVC sheathed electric cable 0.6/1KV 3 1.5 to 400 Suitable for burying in ground, Able to bear external mechanical forces but large pulling forces.
4 4 to 240
6/6kV 8.7/10kV 8.7/15kV 12/20kV 3 25 to 300
21/35kv 3 50 to 240



pvc insulation
Cu Core Al Core
VV(VY);PVC(PE)sheathed power cable VLV(VLY);PVC(PE)sheathed power cable
VV22(VV23);steel tape armoured,PVC(PE)sheathed power cable VLV22(VLV23);steel tape armoured,PVC(PE)sheathed power cable
VV32(VV33),VV42(VV43);steel wire armoured ,PVC(PE)sheathed power cable VLV32(VLV33),VLV42(VLV43);steel wire armoured ,PVC(PE)sheathed power cable


Construction:

Conductor : Annealed Copper Conductor as per IEC 60228

≤6mm2 solid (class 1) or stranded (class 2)

>6mm2 stranded (class 2)

Flexible conductor(class 5) optional.

Insulation : XLPE rated at 90℃

Metallic Screen optional : Copper tape or copper wires braiding optional

Armored optional: : Aluminum wire or stainless steel tape for single core cable, Steel wire or steel

tape for multi core cable

Sheath : PVC or FR-PVC type ST2 to IEC 60502, black or red or customization



Applications:

Used outside as energy utility and lighting cables, in cable ducts, under ground, under normal

and salty water if specially made.









Technical data:

Rated voltage: 0.6/1kV Low Voltage

Maximum Conductor Temperature: under normal (90 ℃), emergency (160℃) or short circuit no

more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core without armor

15 x cable O.D for multi core without armor

15 x cable O.D for single core with armor

12 x cable O.D for multi core with armor



Certificates

ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request



Ordering Advice

Rated Voltage

Application Standard:IEC/BS/UL/GB

Number of Cores

Conductor Size & Construction

Type of Insulation

Armored or unarmored. If armour, the armour type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement



Packing and shipping

We are capable of meeting the most strict delivery schedules according to per purchase order.

Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute

to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP

self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture.

The required marking shall be printed with a weather-proof material on the outsides of drum

according to customer's requirement.
